MD400 Automatic Drill Press/ Milling Machine Machinery Repair Shops Latest Technology
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | MD400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Type: | Drilling & Milling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 50 | Range Of Spindle Speed(r.p.m): | 40 - 1300 R.p.m |
| CNC Or Not: | Normal | Drilling Speed: | Normal Speed |
| Voltage: | Customer's Requirement | Dimension(L*W*H): | 1660x1340x2130mm |
| Power (kW): | 1.5 | Weight (KG): | 1350 KG |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, Russia, Spain, South Africa, Australia | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, Gear, Motor, Engine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| Table Size: | 1120(1200)x280mm | Table Travel: | 600/260/300mm |
| Spindle Travel: | 120mm | Vertical Spindle Speed: | 115-1750rpm(8steps) |
| Horizontal Spindle Speed: | 40-1300rpm(12steps) | Spindle Taper: | MT4(V),ISO40(H) |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Canada, United States, Italy, Germany, Mexico, Russia, Spain, Australia, South Africa |
| Port: | China Port. | ||
Product Description

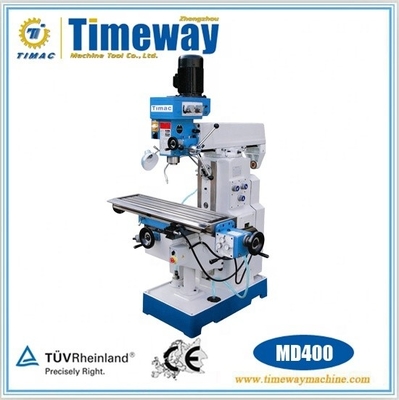

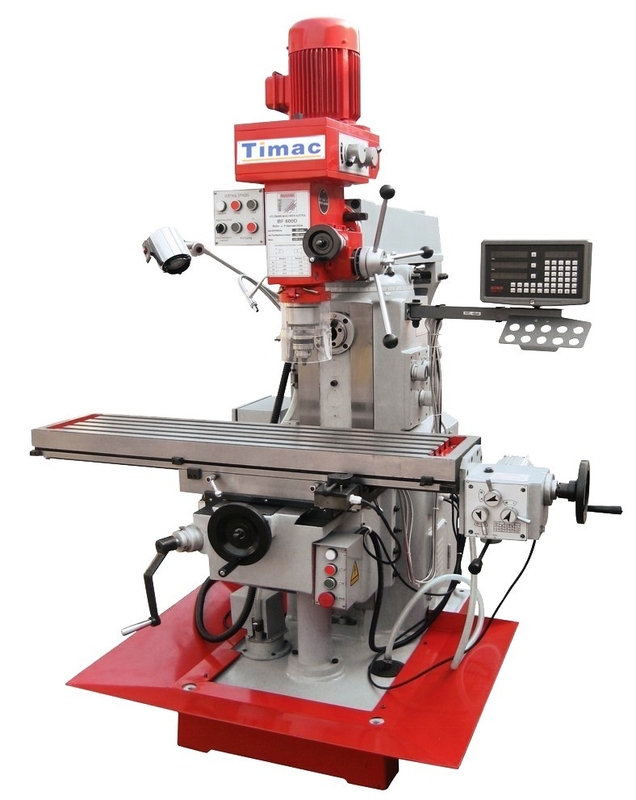

Automatic Drill Press/ Milling Machine MD400
Features:
» Compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast-iron.
» Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
» Vertical and horizontal spindle speeds are changed by gear-box, so the feature of large torque.
» Auto. feeds on X, Y axes, motorized rise and fall of table on Z axis.
» Entire cutter head swivels ±90°, expand Machining range of machine tools.
» For horizontal machining, the top beam including the head can be rotated by ±180° on the column.
» Spindle with micro-feed function (Micro hand-wheel), to realize small size of feed and more correctly machining.
» Coolant system and work lamp and chip collection tray are included in standard equipment.
Standard:
- Coolant system
- Oil collecting plate
- Work lamp
- Elevating rotary handle
- Drill chuck
- Mill collets
- Draw bar
- Machine vise
- Wrench
- Spanner
- Middle sleeve
- Operation manual(English edition)
Optional:
- 3 axes DRO
- 58pcs clamping kits
- Rotary table
- Dividing head
- Variable frequency motor
- Universal milling head
Technical parameter:
| Model | Unit | MD400 |
| Spindle taper | MT4(V),ISO40(H) | |
| Distance from spindle to table | mm | 90-410 |
| Spindle speed | r.p.m | (8steps)115-1750(V),(12steps)40-1300(H) |
| Spindle travel | mm | 120 |
| Max.drilling capacity | mm | 50 |
| Head swivel | ±90° | |
| Table size | mm | 1120(1200)×280 |
| Table travel(Longitudinal/Cross/Verical) | mm | 600/260/300 |
| T slot(No./width/distance) | mm | 3/14/70 |
| Main motor | kw | 0.85/1.5(V),2.2(H) |
| Overall dimension(L×W×H) | mm | 1660×1340×2130 |
| N.W./G.W. | kg | 1250/1350 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
