High Productivity Vertical Knee Milling Machine with 2522x2265x2432mm Dimensions
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | VMN420 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-1 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1200 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 360 | Table Travel (Z) (mm): | 470 |
| Spindle Taper: | NO:50 | Range Of Spindle Speed(r.p.m): | 22 - 1100 R.p.m |
| Type: | VERTICAL | Voltage: | Customer Requirement |
| Dimension(L*W*H): | 2522x2265x2432mm | Weight (KG): | 4500 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CNC Or Not: | Normal |
| Color: | Green | Table Size: | 420x1800mm |
| T-slots: | 3-18-90mm | Max. Weight Of Workpiece: | 800kg |
| X/Y/Z-axis: | 1200/360/470mm | Spindle Taper: | 7:24 No.50 |
| Spindle Speed Range: | 30-1500rpm(18steps) | After Warranty Service: | Online Support |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Chile, Algeria, Bangladesh, Ukraine |
| Core Components: | PLC | Port: | China Port |
Product Description

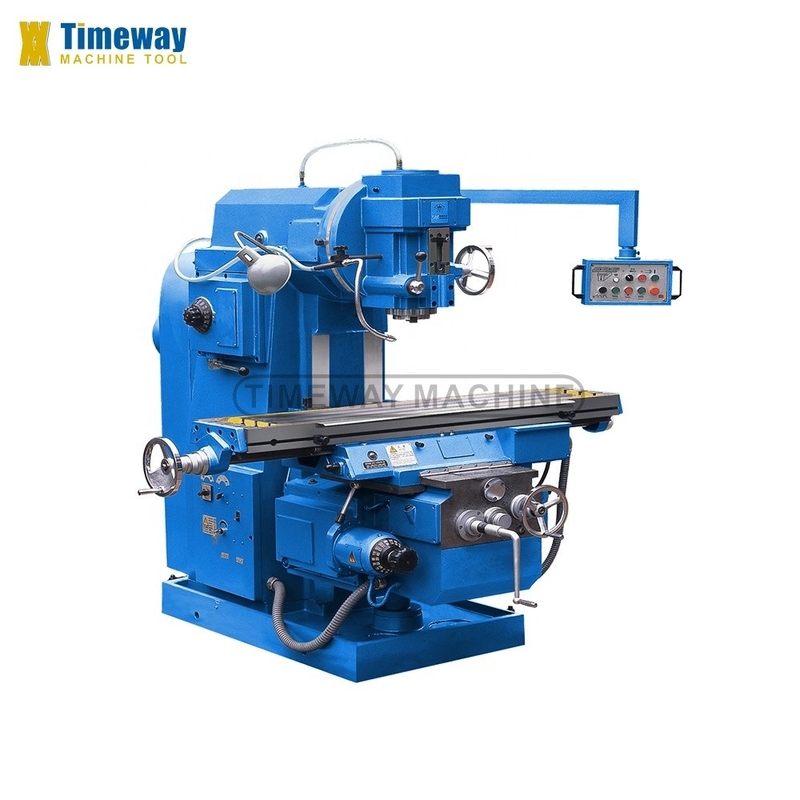

Vertical Knee-type Milling Machine

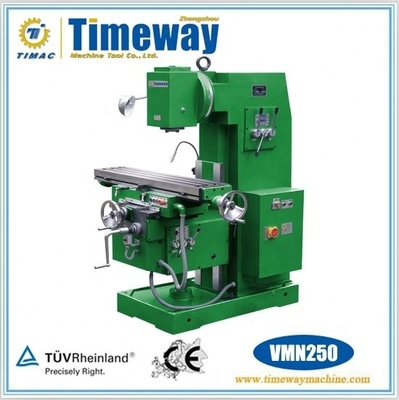

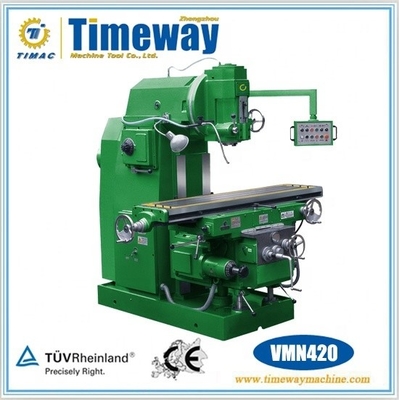

VMN250 VMN300 VMN320 VMN360 VMN420
Features:
- The series vertical knee type milling machine is a general purpose machine with can be used in wide range.
- Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous workpieces.
- Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing, it is an ideal machine for machining process, maintenance, instrument, die and moulds.
- Vertical milling head can rotate ±45°, spindle quill can move vertically (without VMN250), Worktable can realize automatic feed and rapid feed on the X/Y/Z-axis.
- Hardened and ground guideways ensure overall accuracy and machining accuracy of the machine.
- Adopts high power motor, wide change speed, so the machine can complete high-speed cutting by using alloy cutters.
- Optimization whole structure design of the machine, have enough rigid and stable, can realize strong cutting for heavy duty workpieces.
- Equipped with complete coolant and lubrication system, reduce the cost of maintenance.
- According to customer's requirement, we can install 2/3-axis digital readout.
Technical Parameter:
| Specification | Unit | VMN250 | VMN300 | VMN320 | VMN360 | VMN420 |
| Worktable size | mm | 250x1100 | 300x1250 | 320x1320 | 360x1600 | 420x1800 |
| T slot(NxWxD) | mm | 3x14x63 | 3x14x63 | 3x18x80 | 3x18x80 | 3x18x90 |
| Max. load bearing of worktable | kg | 250 | 250 | 550 | 550 | 800 |
| Longitudinal travel (X) | mm | 720 | 750 | 800/780 | 1020/1000 | 1200/1180 |
| Cross travel (Y) | mm | 265 | 265 | 300/280 | 300/280 | 360/350 |
| Vertical travel (Z) | mm | 410 | 410 | 410/400 | 410/400 | 470/450 |
| Feed speed steps | steps | 12 | 12 | 18 | 18 | 18 |
| Feed speed range: -Longitudinal X | mm/min | 12-560 | 15-800 | 15-750 | 15-750 | 22-1100 |
| -Cross Y | mm/min | 12-560 | 15-800 | 15-750 | 15-750 | 22-1100 |
| -Vertical Z | mm/min | 5-226 | 6-270 | 5.7-280 | 5.7-280 | 8.3-410 |
| Rapid feed range: -Longitudinal X | mm/min | 1780 | 2100 | 2250 | 2250 | 2400 |
| -Cross Y | mm/min | 1780 | 2100 | 2250 | 2250 | 2400 |
| -Vertical Z | mm/min | 720 | 880 | 844 | 844 | 900 |
| Max.rotary angle of vertical milling head | ° | ±45° | ±45° | ±45° | ±45° | ±45° |
| Distance from spindle nose to worktable surface | mm | 60-470 | 60-470 | 50-460 | 50-460 | 40-510 |
| Distance of spindle center to vertical guide way | mm | 290 | 290 | 380 | 380 | 450 |
| Distance of worktable center to vertical guide | mm | 160-430 | 152-417 | 235-535 | 235-535 | 235-535 |
| Spindle hole taper | - | 7:24 NO:40 | 7:24 NO:40 | 7:24 NO:50 | 7:24 NO:50 | 7:24 NO:50 |
| Arbor diameter | mm | Φ27 | Φ22, Φ27 | Φ32, Φ40 | Φ32, Φ40 | Φ32, Φ50 |
| Spindle quill travel | mm | - | 70 | 75 | 75 | 85 |
| Spindle speed steps | steps | 12 | 12 | 18 | 18 | 18 |
| Spindle speed range | r/mm | 35-1600 | 35-1600 | 30-1500 | 30-1500 | 30-1500 |
| Main motor power | kw | 4 | 4 | 7.5 | 7.5 | 11 |
| Feed motor power | kw | 0.75 | 0.75 | 1.5 | 1.5 | 3 |
| Machine dimension | cm | 167x135x180 | 165x154x192 | 230x170x209 | 230x206x209 | 252x226x243 |
| Package dimension | cm | 154x150x213 | 167x158x204 | 222x190x232 | 224x208x232 | 247x240x272 |
| Machine weight | kg | 1800 | 1800 | 3200 | 3370 | 4700 |
| Voltage/Frequency | V/HZ | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
According to customer’s requirement, we can develop on the machine guideways, worktable, and load-capacity.

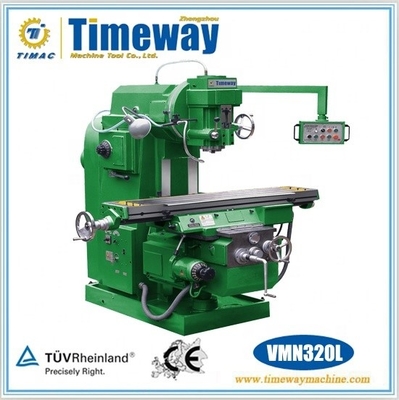

| Specification | Unit | VMN320L | VMN420L |
| Worktable size | mm | 320x1600 | 428x2000 |
| T slot(NxWxD) | mm | 3x18x80 | 3x18x100 |
| Max. load bearing of worktable | kg | 550 | 800 |
| Longitudinal travel (X) | mm | 1020/1000 | 1250/1230 |
| Cross travel (Y) | mm | 300/280 | 420/410 |
| Vertical travel (Z) | mm | 410/400 | 480/470 |
Standard Accessories:
- Draw bar
- Central lubrication
- Work lamp
- Coolant system
- Operating tools
- Operator manual.
Optional Accessories:
- Reducing sleeve
- 2/3-axis digital readout
- Clamping tools, assorted
- Milling chuck
- Machine vise
- Rotating worktable
- Dividing Head
