3200kg H/V Head Turret Milling Machine TM600 with 400mm Table Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | TM600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,800.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 80 - 7200 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Voltage: | As Request | Dimension(L*W*H): | 2300x1600x2250mm |
| Weight (KG): | 1650 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | H/V Head Turret Milling Machine: | Milling Machine |
| Diameter Of Quill: | 120mm | Weight: | 3200kg |
| Power: | 2.2kw | Distance From Spindle To Table: | 90-490mm |
| Spindle Speeds: | 40-1300rpm | Spindle Travel: | 145mm |
| Table Size: | 1250x320mm | Max.weight Of Workpiece: | 300kg |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Algeria, Bangladesh, Ukraine, Uzbekistan |
| Core Components: | PLC | Table Travel (mm): | 600x300x400 |
| Port: | China Port | ||
Product Description

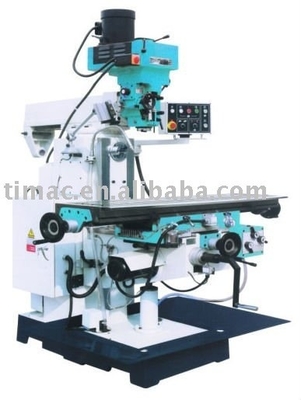

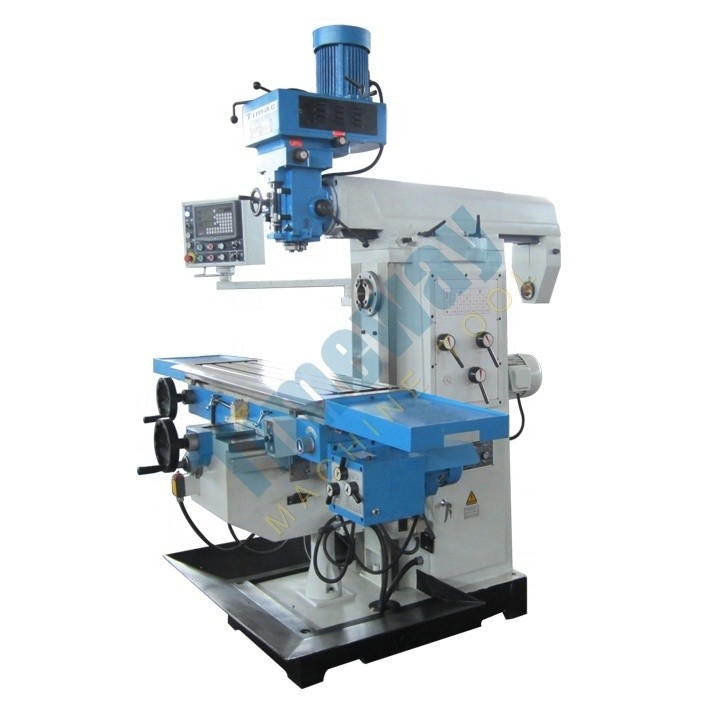

H/V Head Turret Milling Machine
1.Headstock swivels +/-45 degrees
2.Rectangular table guideways
| Item | TM600 |
| Spindle taper | ISO40(V) ISO40(H) |
| Diameter of quill | 120 mm |
| Distance from spindle to table | 90-490 mm |
| Distance from horizontal spindle to table | 0-400 mm |
| Distance from spindle to column | 200-700 mm |
| Spindle speeds | (16step) 80-7200 r.p.m 40-1300 r.p.m(H) |
| Spindle travel | 145mm |
| Feeding of quill | (3step)0.04 0.08 0.15 |
| Max.drilling capacity of auto-feeding | 10 mm |
| Head swivel(right to left) | ±90° |
| Table size | 1250×320 mm |
| Table travel(Longitudinal/Cross/Vertical) | 600/300/400mm |
| Feeding range of longitudinal.cross travel | 22-555 mm/min |
| X,Y-axis Rapid feed speed | 1080 mm/min |
| Z-axis rapid feed speed | 590 mm/min |
| Z-axis motor power | 750 W |
| Max.weight of workpiece | 300kg |
| T-slot Number/width/distance | 3/14/70 mm |
| Milling head moving(Vertical) | Rectangle slide way |
| Cross slide way | Rectangle slide way |
| Longitudinal slide way | Dove tail |
| Horse power for main motor | 5HP(V) 2.2kw(H) |
| X,Y axis driving motor | 750 W |
| Overall dimension | 1780×1500×2270 mm |
| Packing size | 1680×1600×2250/2300×1600×2250 mm |
| N.W/G.W | 1550/1650kg 3100/3200kg) |
Standard accessories
Mill chuck & collets,
draw bar,
machine vise,
horizontal mill arbor,
coolant system,
work lamp,
table elevating motor,
convergent panel,
wrench,
spanner,
middle sleeve,
elevating rotary handle,
oil collecting plate,
operation manual(English edition).
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
