BM715 Universal Milling Machine with Large Bed Size and 35-1345rpm Spindle Speed Range
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | CE ISO9001 |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $59,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 670 | Table Travel (Z) (mm): | 670 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 35 - 1345 R.p.m |
| Type: | Universal | Voltage: | 380V 50Hz |
| Dimension(L*W*H): | 3300x2380x2750 Mm | Weight (KG): | 7300 |
| Warranty: | 12 Months | Key Selling Points: | High-accuracy |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Color: | Opitional | Table Size: | 2100x500mm |
| T-slots: | 4-20-100mm | Max. Weight Of Workpiece: | 2000kg |
| X/Y/Z-axis Travel: | 1500/670/670mm | Spindle Speed Range: | 35-1345rpm(12steps) |
| Machine Type: | Bed-type Milling Machine | Power: | 7.5kw |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Other | Showroom Location: | Argentina, Algeria, Romania, Malaysia, Turkey, Italy, Germany, Peru, Russia, Thailand |
| Core Components: | Motor, Engine, Other | Port: | China Port |
Product Description

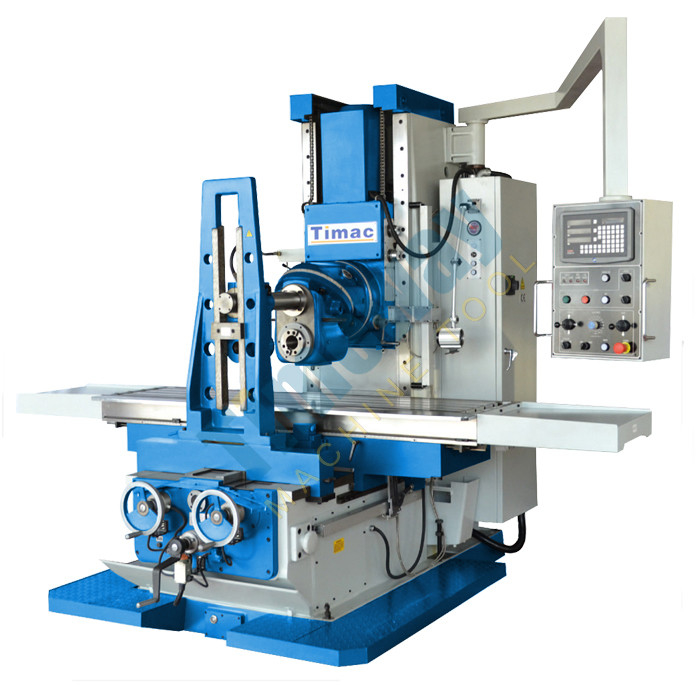

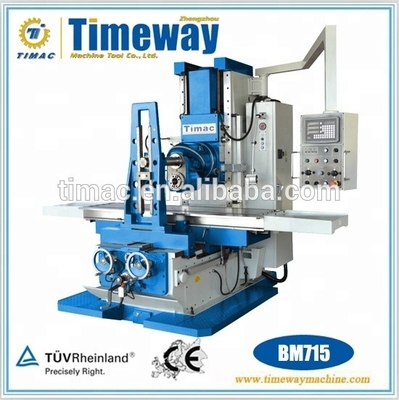

Large Size Bed-type Universal Milling Machine
BM715
Features:
- Servo feed motors on X, Y, Z-axis ensures response,accuracy and consistent feed.
- Micro switch on the manual knee handle for additional operator safety.
- Tool box and operations manual.
- Ball screw X, Y-axis providing smooth and accurate operation.
- Coolant system and halogen light included.
- Square construction slides for X, Z-axis to maximize rigidity.
- Clutch hand wheels X, Y-axis.
- Automatic oil lubrication pump and reservoir.

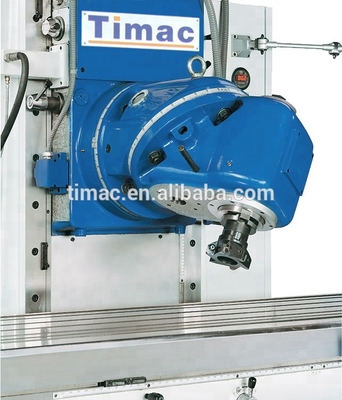

- Universal head swivels to horizontal position.
Introduction for main structure:
- Large machine bed, wide column, plus high intrinsic weight - Power package for machining of large parts and heavy-duty chip removal capacity.
- An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
- Extra wide guideways ensure maximum stability and precision at high loads.
- Extra long table travel distance(1500mm) and large table setup area (2100x500mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
- Wide spindle speed range from 40 to 1600 rpm.
- Infinitely variable linear and cross feed.
- Control panel on a long extending arm that can be ideally positioned by the operator.
Technical Parameter:
| Specification | BM715 | |
| Table | Table size | 2100x500 mm |
| T slot number/width/distance | 4-20-100 mm | |
| Max. load of Table | 2000 kg | |
| Machining range | Longitudinal travel (X-axis) | 1500 mm |
| Cross travel (Y-axis) | 670 mm | |
| Vertical travel (Z-axis) | 670 mm | |
| Main spindle | Spindle taper | ISO50 7:24 |
| Spindle speed step | 12steps, 40-1600rpm(60HZ) 12steps, 35-1345rpm(50HZ) | |
| Distance from spindle axis to column surface | 610 mm | |
| Distance from spindle nose to table surface | 0-670 mm | |
| Feeds | Longitudinal/cross feed | 20-1800 mm/min (variable) |
| Vertical feed | 10-900 mm/min (variable) | |
| Longitudinal/cross rapid speed | 3500 mm/min | |
| Rapid Traverse vertical | 1750 mm/min | |
| Motor power | Main motor | 7.5 kw |
| Feed motor | 2 kw | |
| Elevating motor for headstock | 2 kw | |
| Coolant motor | 550 w | |
| Others | Package dimension | 2280x2280x2820 mm |
| Overall dimension | 3300x2380x2750 mm | |
| N.W/G.W | 7300/8000 kg | |
Standard Accessories:
• ISO50 Milling chuck set(8pcs); • ISO50 Milling arbor(φ40mm);

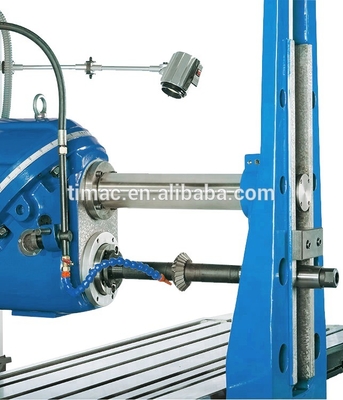

• Horizontal milling arbor(φ32mm); • Horizontal milling arbor supporting;
• Draw bar; • 7:24 Taper sleeve;
• Quartz lamp; • Tool box;
• Oil gun; • Foundation bolts;
• Inner hexagon spanner; • Double-head wrench;
• CE standard electric components; • Operation manual(English edition);
Optional Accessories:
• 3 axes DRO; • Ball rolling lead screw for X & Y axes;
• Machine vice 200mm; • Universal dividing head;
• Rotary table 500mm; • Spindle guard(eye protection);
