TM800 Timeway Horizontal and Vertical Turret Milling Machine for Durable Construction
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | Wood case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 320 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 60 - 1800 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 2.2 |
| Voltage: | As Per Customer's Request | Dimension(L*W*H): | 2220x1790x2360mm |
| Weight (KG): | 2650 | Warranty: | 12 Months |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 1250x360mm |
| Verical Travel: | 400mm | Loading Capacity: | 400kg |
| Horizontal Spindle Speed: | 60-1800rpm(12steps) | Vertical Spindle Speed: | 70-7200rpm(16steps) |
| Spindle Taper: | ISO50(H); ISO40(V) | Longitudinal Travel: | 1000mm |
| Cross Travel: | 320mm | Warranty Period: | 1year |
| Machine Type: | Veritcal | Number Of Axes: | 3 |
| Condition: | New | Showroom Location: | Romania, Malaysia, Australia, Turkey, Viet Nam, Indonesia |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Advertising Company, Other | Core Components: | Motor, Other |
| Table Travel (mm): | 1000/320/400 | Port: | China Port |
Product Description

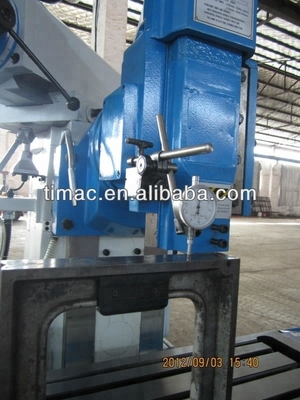

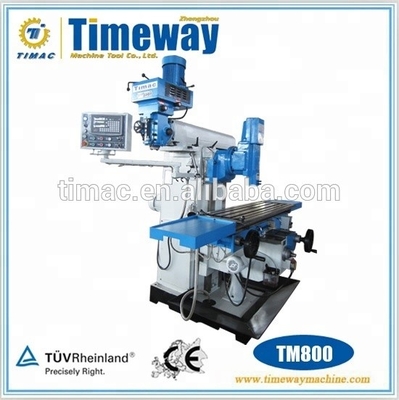

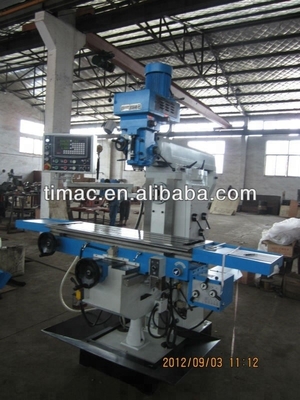

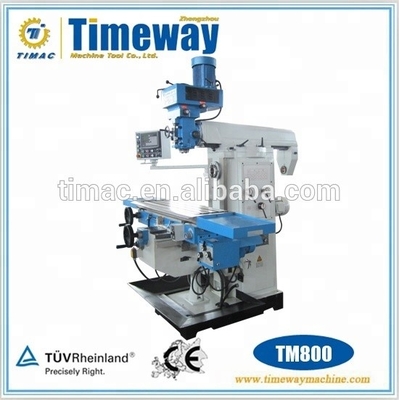

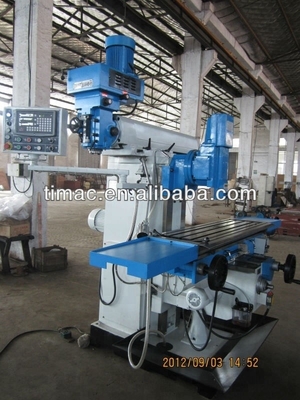

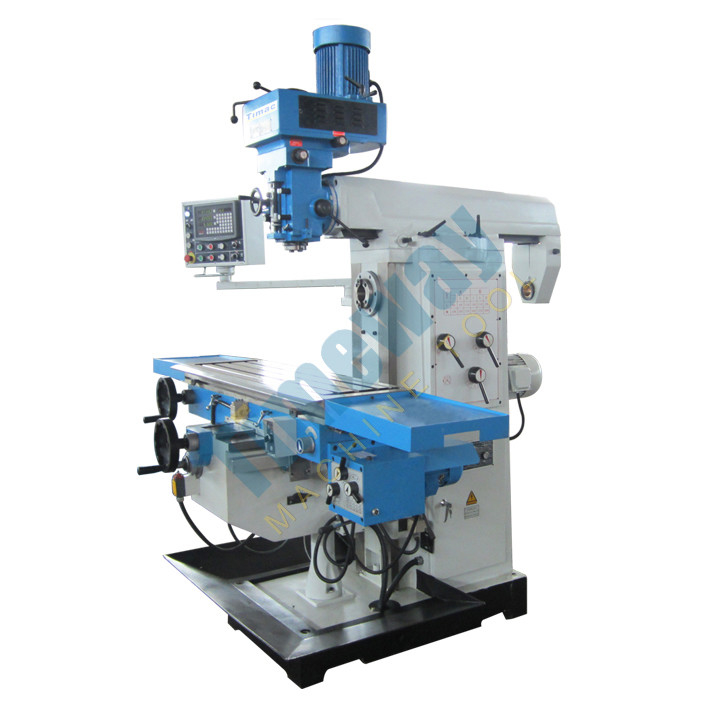

360 x 1250mm Table Size / Universal Radial Milling Machine
TM500 TM600 TM700 TM800
Features :
1. Hardened and ground table surface;
2. Automatic feeds on X, Y axes, motorized rise and fall of table on Z axis;
3. Spindle sleeve can tap, automatic feed with 3 speeds;
4. Headstock swivels ±90° from right to left, tilt ±45° from forth to back (TM500)
5. Drill depth stop with display of measurement;
6. Rectangular column guide way with high stability (TM600, TM700, TM800)
Parameter:
| Model | Unit | TM500 | TM600 | TM700 | TM800 |
| Table size |
| 320 x 1250 | 320 x 1250 | 320 x 1250 | 360 x 1250 |
| Spindle taper | ISO40(V), ISO40(H) | ISO40(V), ISO40(H) | ISO40(V), ISO40(H) | ISO40(V), ISO50(H) | |
| Diameter of quill | mm | 95 | 120 | 120 | 120 |
| Distance from spindle to table | mm | 9 ± 0-370 | 90-490 | 90-490 | 135-535 |
| Distance from horizontal spindle to table | mm | 0-280 | 0-400 | 0-400 | 230 |
| Distance from spin dle to column | mm | 200-700 | 200-700 | 200-700 | 200-700 |
| Spindle speed(steps) | r.p.m | (16) 80-5440(V), (12) 40-1300(H) | (16) 70-7200(V), (12) 40-1300(H) | (16) 70-7200(V), (12) 40-1300(H) | (16) 70-7200(V), (12) 60-1800(H) |
| Spindle travel | mm | 127 | 145 | 145 | 145 |
| Quill feed(steps) | mm | (3) 0.15,0.08,0.25 | (3) 0.4,0.08,0.15 | (3) 0.4,0.08,0.15 | (3) 0.4,0.08,0.15 |
| Max. drilling capacity of auto-feeding | mm | 10
| |||
| Head swivel(right to left) | ±90° | ||||
| Head tilt(fore to back) | ±45° | - | - | - | |
| Table travel(Longitudinal/Cross/Verical) | mm | 600/300/280 | 600/300/400 | 800/300/400 | 1000/320/400 |
| X,Y axes feed speed | mm/min | 22-555 | |||
| X,Y axes rapid feed speed | mm/min | 1080 | |||
| Z axis rapid elevate speed | mm/min | 590 | |||
| Z axis rapid elevate motor power | w | 750 | 750 | 750 | 1100 |
| Max. weight of workpiece | kg | 300 | 300 | 300 | 400 |
| T slot(No./width/distance) | mm | 3/14/70 | 3/14/70 | 3/14/70 | 3/18/80 |
| Main motor | kw | 2.2(V), 2.2(H) | 3.75(V), 2.2(H) | 3.75(V), 2.2(H) | 5.5(V), 4(H) |
| X,Y axes auto-feed drive motor | w | 750 | |||
| Coolant pump power | w | 40 | 40 | 40 | 90 |
| Overall dimension | mm | 1700x1500x2150 | 1700x1500x2270 | 1780x1500x2270 | 2220x1790x2360 |
| N.W./G.W. | kg | 1450/1600 | 1550/1650 | 1650/1750 | 2450/2650 |
***Standard items:
5HP Taiwan made step pulley type milling head, Mill chuck&collets, draw bar, machine vise, horizontal mill arbor,coolant system, work lamp, table elevating motor, convergent panel, wrench, spanner, middle sleeve, elevating rotary handle, oil collecting plate, operation manual(English edition).
***Optional items:
3-axes DRO; 5HP Taiwan made variable(stepless) speed type milling head; Air power draw bar; 58pcs clamping kits; Universal dividing head; Rotary table
