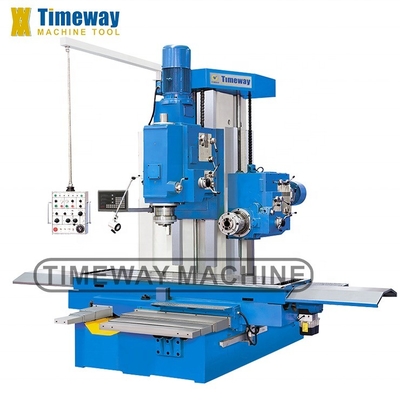

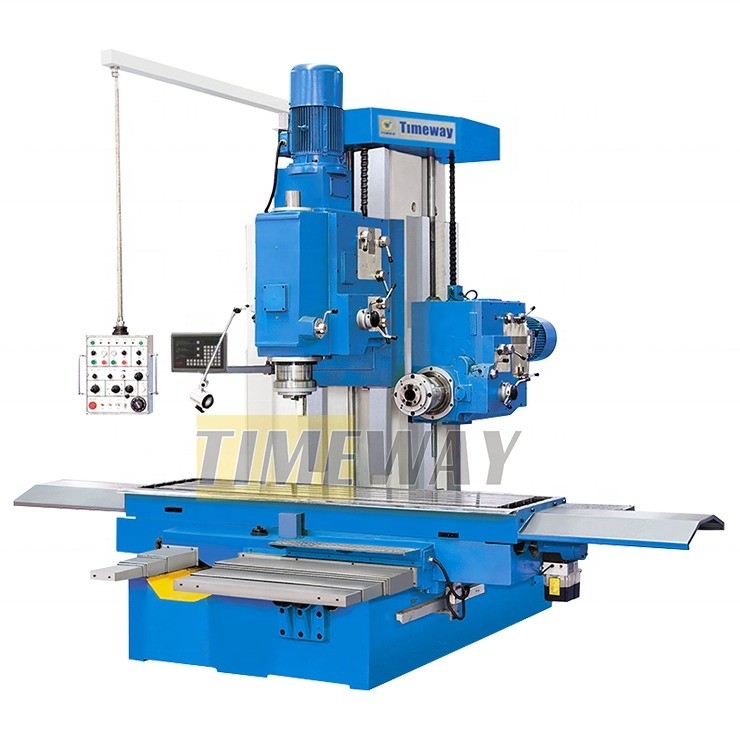

2400mm x 650mm Worktable Size Bed-type Boring and Milling Machine with Single Spindle
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cased (can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Table Size (mm): | 2400x650 | Table Travel (X) (mm): | 1630 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 600 Mm | Table Travel (Z) (mm): | 0 Mm |
| Number Of Axes: | 2 | Travel (W-axis) (mm): | 0 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Gearbox, Pump | No. Of Spindles: | Single |
| Range Of Spindle Speed(r.p.m): | 1000 R.p.m | Spindle Motor Power(kW): | 11 |
| Type: | VERTICAL | Condition: | New |
| CNC Or Not: | CNC | Production Capacity: | 50Sets/month |
| Voltage: | As Require | Dimension(L*W*H): | 4100x3700x4250 |
| Weight (T): | 17 T | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Saudi Arabia, Indonesia, Pakistan, Spain, Morocco, UAE, Tajikistan | After-sales Service Provided: | Online Support |
| Boring Machine: | Machine Tools | Motor Power (kw): | 11 |
| Weight: | 17000kg | Quill Auto-feed Speed Steps: | (V)6 (H)6 |
| Quill Auto-feed Speed Range: | (V)11 (H)11mm/r | Spindle Motor Power: | (V)11 (H)11kw |
| Feed Motor Power: | 4.4kw | Overall Dimension(LxWxH): | 4100x3700x4250mm |
| Port: | China Port | ||
Product Description
Products Description
Specification | Unit | BM706 |
Table size | mm | 2400x650 |
Table travel on X, Y | mm | 1630x600 |
Vertical travel of horizontal spindle | mm | 800 |
Vertical travel of vertical spindle | mm | 800 |
Min. distance from horizontal spindle axis to table | mm | 20 |
Number/width/distance of T-slot | mm | 5-22-100 |
Spindle taper | (V)ISO50, (H)ISO50 | |
Spindle quill travel | mm | (V)190, (H)190 |
Spindle speed range | r.p.m | (V)23-1000, (H)23-1000 |
Spindle speed steps | (V)12 (H)12 | |
Longitudinal, cross, vertical feed speed range stepless | mm/min | 20-2200 |
Longitudinal, cross, vertical rapid feed speed range | mm/min | 2200 |
Quill auto-feed speed steps | (V)6 (H)6 | |
Quill auto-feed speed range | mm/r | (V)11 (H)11 |
Spindle motor power | kw | (V)11 (H)11 |
Feed motor power | kw | 4.4 |
Max. load of worktable | kg | 3000 |
Overall dimension(LxWxH) | mm | 4100x3700x4250 |
Net weight | kg | 17000 |
