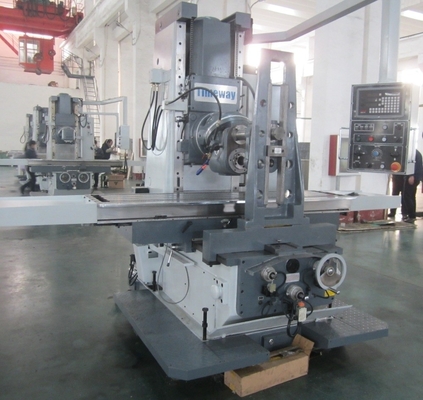

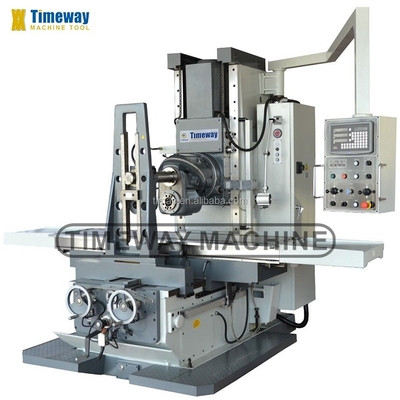

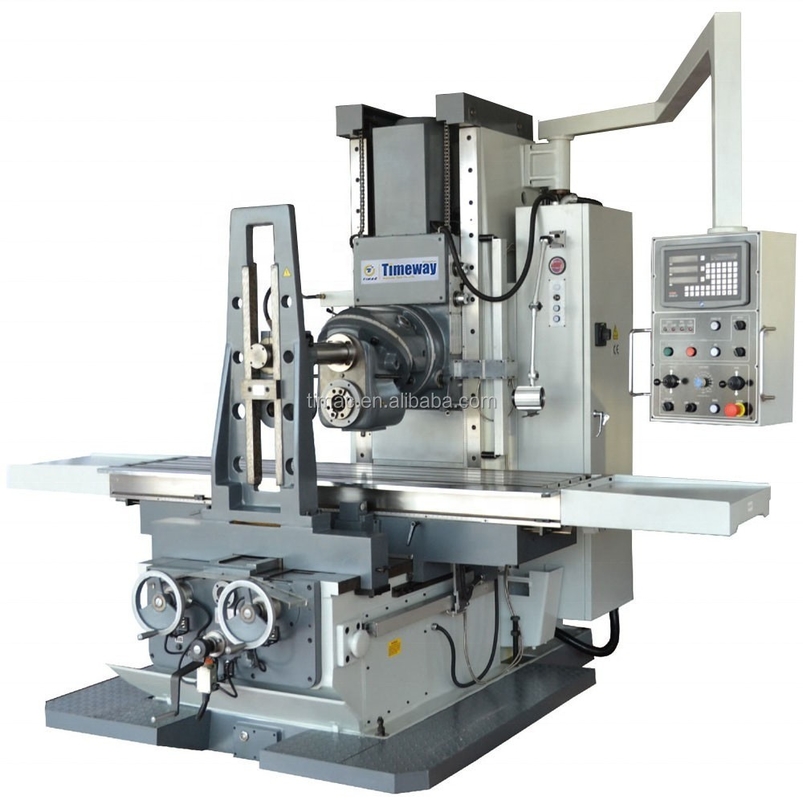

ISO50 Spindle Taper Large Universal Bed Type Milling Machine for 1500x670 Table Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-4 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500mm | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 670mm | Table Travel (Z) (mm): | 670mm |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 35 - 1345 R.p.m |
| Type: | Horizontal | Voltage: | 220V/240V/380V |
| Dimension(L*W*H): | 3300x2380x2750 Mm | Weight (KG): | 7300 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Opitional |
| Table Size: | 2100x500mm | T-slots: | 4-20-100mm |
| Max. Weight Of Workpiece: | 2000kg | X/Y/Z-axis Travel: | 1500/670/670mm |
| Spindle Taper: | ISO50 7:24 | Spindle Speed: | 35-1345rpm(12steps) |
| Machine Type: | Bed-type Milling Machine | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Kenya, Chile, Sri Lanka, Romania, Bangladesh, Kyrgyzstan, Nigeria, Uzbekistan, Egypt, Canada, Brazil | Core Components: | Motor |
| Table Travel (mm): | 1500x670 | Port: | China Port |
Product Description
Products Description
Features:

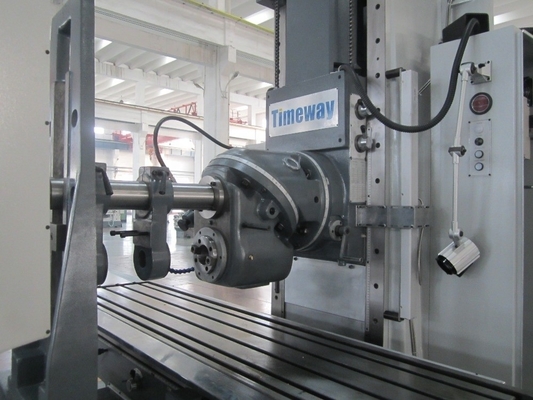

* Universal milling head with an ISO50 spindle taper;

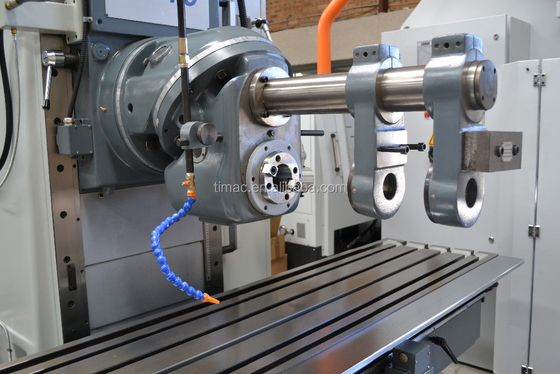

* Universal head swivels to horizontal position;
* Geared drive spindle speeds 12 steps 35-1345rpm;
* 7.5kW/10hp main spindle motor;
* Servo controlled feed motors on X, Y, Z-axis ensures response, accuracy and consistent feed;
* X, Y and Z-Axis servo controlled power-feed with rapid;
* Ball screw X, Y-axis providing smooth and accurate operation;
* Rapid feed servo controlled on X, Y, Z-Axis;
* Hardened and ground worktable & slideways;
* Square construction slides for X, Z-axis to maximize rigidity;
* Large 2100 x 500mm slotted work table;
* High grade casting for additional strength and minimal deformation;

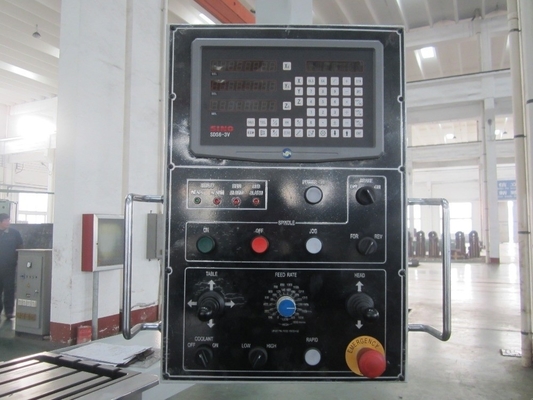

* Quality electrics & overload protection in an easy access enclosure;
* High/neutral and low gear selection lever to maximize torque;
* Micro switch on the manual knee handle for additional operator safety;
* Metric dial graduations of 0.02mm for X, Y, Z-axis;
* Table trays each end of work table;
* Clutch hand wheels X, Y-axis;
* Coolant system and halogen light included;
* Automatic oil lubrication pump and reservoir;
* Tool box and operations manual
* Universal head swivels to horizontal position;
* Geared drive spindle speeds 12 steps 35-1345rpm;
* 7.5kW/10hp main spindle motor;
* Servo controlled feed motors on X, Y, Z-axis ensures response, accuracy and consistent feed;
* X, Y and Z-Axis servo controlled power-feed with rapid;
* Ball screw X, Y-axis providing smooth and accurate operation;
* Rapid feed servo controlled on X, Y, Z-Axis;
* Hardened and ground worktable & slideways;
* Square construction slides for X, Z-axis to maximize rigidity;
* Large 2100 x 500mm slotted work table;
* High grade casting for additional strength and minimal deformation;
* Quality electrics & overload protection in an easy access enclosure;
* High/neutral and low gear selection lever to maximize torque;
* Micro switch on the manual knee handle for additional operator safety;
* Metric dial graduations of 0.02mm for X, Y, Z-axis;
* Table trays each end of work table;
* Clutch hand wheels X, Y-axis;
* Coolant system and halogen light included;
* Automatic oil lubrication pump and reservoir;
* Tool box and operations manual
Specification | BM715 |
Table Size | 2100 x 500mm |
Spindle Taper | ISO50 |
Longitudinal Travel (X-axis) | 1500mm |
Cross Travel (Y-axis) | 670mm |
Vertical Travel (Z-axis) | 670mm |
Type of Slides | Square (Y & Z) |
Spindle to Table | 670mm |
Throat Depth (max.) | 610mm |
Type Of Table Power Feed (X , Y & Z-axis) | Servo Drive |
Longitudinal & Cross Feed (X & Y-axis) | 20 ~ 1800mm/min |
Longitudinal & Cross Rapid (X & Y-axis) | 3700mm/min |
Vertical Feed (Z-axis) | 10 ~ 900mm/min |
Vertical Rapid (Z-axis) | 1750mm/min |
Table T-Slot Size | 20mm |
Work Table Load Capacity | 2000kg |
Spindle Speeds Vertical / Horizontal | 12 (35-1345rpm) |
Motor Power | 7.5kW / 10hp |
Floor Space Required | 4925 x 2380mm |
Overall Height | 2750mm |
Weight (net) | 7300kg |
