Range of Spindle Speed r.p.m 65 4500 r.p.m Vertical Turret Milling Machine M230A M230B
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | M230A M230B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,500.00/sets >=2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 840 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 368 | Table Travel (Z) (mm): | 450 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 3.75 |
| Voltage: | 280/380V | Dimension(L*W*H): | 1800x2016x2180 |
| Weight (KG): | 2300 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Vertical Milling Machine: | Vertical Turret Milling Machine | After-sales Service Provided: | Online Support |
| After Warranty Service: | Video Technical Support | Longitudinal Travel: | 840mm |
| Cross Travel: | 360mm | Vertical Travel: | 450mm |
| Machine Type: | Veritcal | Number Of Axes: | 2 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Morocco, Kenya, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Ukraine, Kyrgyzstan, Malaysia | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox |
| Year: | 2020 | Port: | China Port |
Product Description

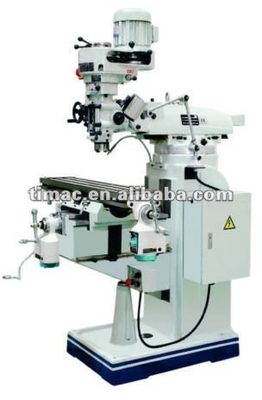

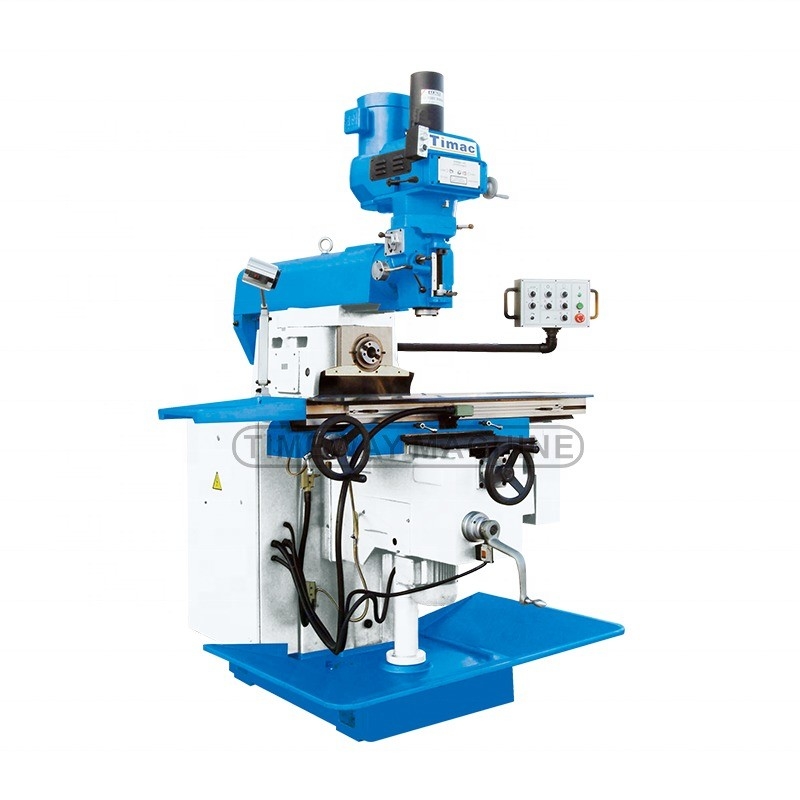

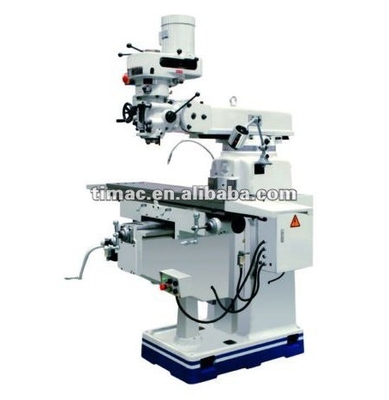

VERTICAL TURRET MILLING MACHINE
Standard accessories:
Draw bar, Electric box, Working light, Hand oil pump, Tool & tool box;
Optional accessories:
Digital readout system (DRO), Machine vise, Power feed unit, Gear box, Power feed, Clamping kits, ISO30 / ISO40 collet chuck, R8 collet chuck, Oil colleting plate, Plastic splash guard, Cooling system.
| Specification | Unit | M330 | M330A | |
| Table size | mm | 330x1370 | ||
| Longitudinal travel | mm | 840/1000 | ||
| Cross travel | mm | 368 | ||
| Vertical travel | mm | 450 | ||
| T- slot No. and size | mm | 3x16 | ||
| Ram travel | mm | 500 | ||
| Distance from spindle to table | mm | 0-450 | ||
| Spindle hole taper | Standard: ISO40 | |||
| Spindle travel | mm | 127 | ||
| Spindle speed | rpm | Standard: step 16 speed(50HZ: 65-4500 / 60HZ: 80-5440) | ||
| Optional: Variable speed 65-3750 | ||||
| Auto. Quill feed | mm/r | Three steps: 0.04(0.0015")/0.08(0.003")/0.15(0.006") | ||
| Spindle motor | kw/HP | 3.75kw / 5HP | ||
| Head swivel | 90° | |||
| Head tilting | 45° | Fix | ||
| Dimension of package | One | mm | 1800x2016x2180 | |
| Two | mm | 1800x2200x2180 | ||
| Gross weight | kg | 2300 | 2350 | |
M330:
*Rectangular guide ways on Y and Z axis.
*The guide way on saddle is lined with TF wearable material.
*5HP milling head motor and quill diameter is 100mm.
*The work table surface and 3 axis guide way are hardened and precision ground.
*Z axis adopts high speed lifting motor.
*Super saddle structure.
M330A:
*Rectangular guide ways on Y and Z axis;
*The guide way on saddle is lined with TF wearable material;
*5HP milling head motor and quill diameter is 100mm;
*The work table surface and 3 axis guide way are hardened and precision ground;
*Z axis adopts high speed lifting motor.
*Super saddle structure;
*Fixed structure is used to connect the mill head without adapter.
