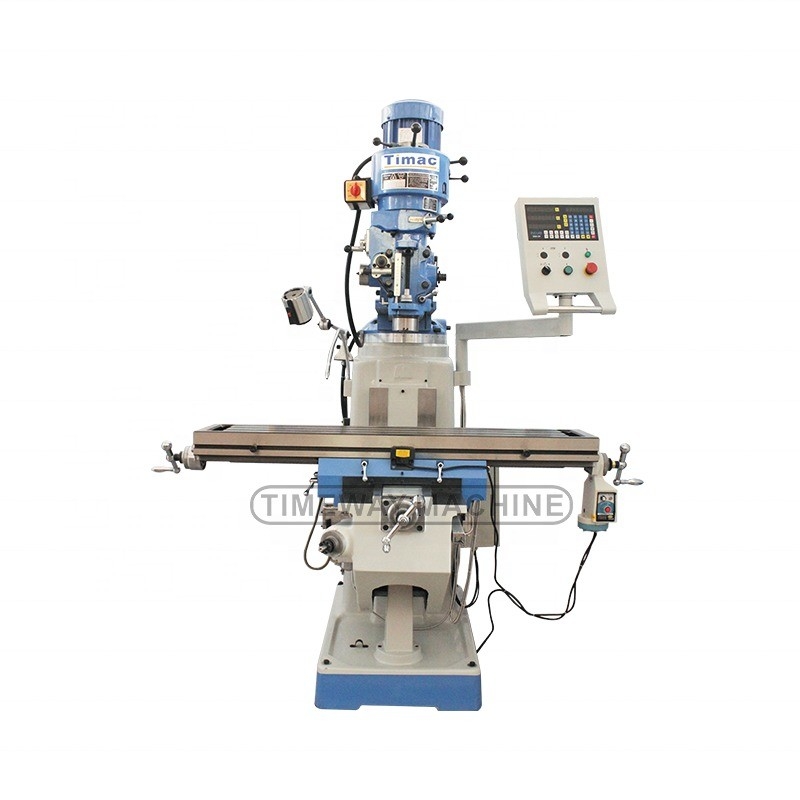

3HP Milling Head Vertical Turret Milling Machine High Precision Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | M250 M250A M250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,000.00/sets >=3 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 850 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 420 | Table Travel (Z) (mm): | 420 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Voltage: | 380v Or Other |
| Dimension(L*W*H): | 1516x1550x2080mm | Weight (KG): | 1550 |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Vertical Milling Machine: | Vertical Turret Milling Machine |
| X-axis Travel: | 850mm | Y-axis Travel: | 420mm |
| Z-axis Travel: | 420mm | Spindle Travel: | 127mm |
| Number Of Axes: | 2 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Bangladesh, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Australia, Germany, Viet Nam, Indonesia, Russia, Thailand |
| Core Components: | Bearing, Pump, PLC | Port: | China Port |
Product Description
3HP Milling Head Vertical Turret Milling Machine
M250:
*Rectangular guide ways on Y and X axis.
*The guide way on saddle is lined with TF wearable material.
M250A:
*Double 55°dovetail guide way is adopted on both Y and Z axis.
*The guide way on saddle is lined with TF wearable material.
*The worktable surface and 3 axis guide way are hardened and precision ground.
M250B:
*Double 55°dovetail guide way is adopted on Z axis, and rectangular guide way on Y axis.
*The guide way on saddle is lined with TF wearable material.
*The worktable surface and 3 axis guide way are hardened and precision ground.
Standard accessories:
Draw bar, Electric box, Working light, Hand oil pump, Tool & tool box;
Optional accessories:
Digital readout system (DRO), Machine vise, Power feed unit, Gear box, Power feed, Clamping kits, ISO30 / ISO40 collet chuck, R8 collet chuck, Oil colleting plate, Plastic splash guard, Cooling system.
| Specification | Unit | M250 | M250A | M250B | |
| Table size | mm | 254x1270 or 254x1370 | |||
| Longitudinal travel | mm | 850/950 | |||
| Cross travel | mm | 420 | 400 | ||
| Vertical travel | mm | 420 | |||
| T- slot No. and size | mm | 3x16 | |||
| Ram travel | mm | 470 | |||
| Distance from spindle to table | mm | 0-420 | |||
| Spindle hole taper | Standard: R8 / Optional: ISO30/ISO40 | ||||
| Spindle travel | mm | 127 | |||
| Spindle speed | rpm | Standard: step 16 speed(50HZ: 65-4500 / 60HZ: 80-5440) | |||
| Optional: Variable speed 65-4500 | |||||
| Auto. Quill feed | mm/r | Three steps: .0.04 (0.0015") / 0.08 (0.003") / 0.15 (0.006") | |||
| Spindle motor | kw/HP | 2.25kw / 3HP | |||
| Head swivel | 90° | ||||
| Head tilting | 45° | ||||
| Dimension of package | One | mm | 1516x1550x2080 | ||
| Two | mm | 1650x1790x2170 | |||
| Three | mm | 1650x2285x2235 | |||
| Gross weight | kg | 1550 | 1380 | 1420 | |
