Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
Universal Gantry Type Planing and Milling Machine Suitable for Various Materials
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $180,000.00/sets 1-2 sets |
| Packaging Details: | wooden/pallet |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 8000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 2000 | Table Travel (Z) (mm): | 2200 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 100 - 685 R.p.m |
| Type: | Universal | Voltage: | 380V |
| Dimension(L*W*H): | 16700x4300x4200mm | Weight (KG): | 45000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Product Name: | Planing Machine |
| Gantry Type Planing/milling Machine: | Gantry Type Planing/milling Machine | Grinding Milling: | Gantry Milling |
| Name: | Portal Milling Machine | Machine Type: | Portal Milling Machine |
| X-axis Travel: | 8000 Mm | Y-axis Travel: | 2000 Mm |
| Z-axis Travel: | 2200 Mm | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Showroom Location: | Colombia, Nigeria, Japan, Malaysia, Australia, United Kingdom, United States, Italy, Peru, Indonesia, Thailand | Core Components: | Other |
| Port: | China Port | ||
Product Description
Products Description
Gantry Type Planing/Milling Machine
Technical Parameter：
Specification | Unit | PMG2080 |
Distance between columns | mm | 2020 |
Up/down travel | mm | 2200 |
Up/down speed | mm/min | 360 |
Up/down motor power | kw | 4 |
Cross travel | mm | 2000 |
Vertical travel | mm | 300 |

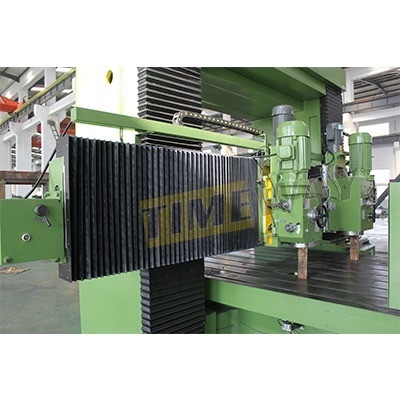

Machine details：
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
