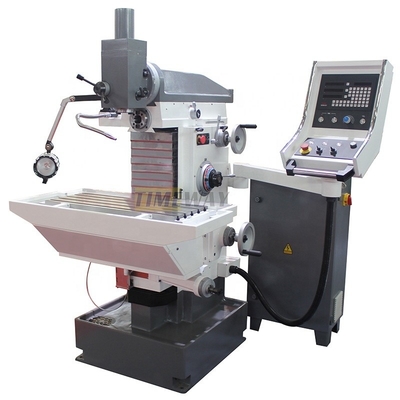

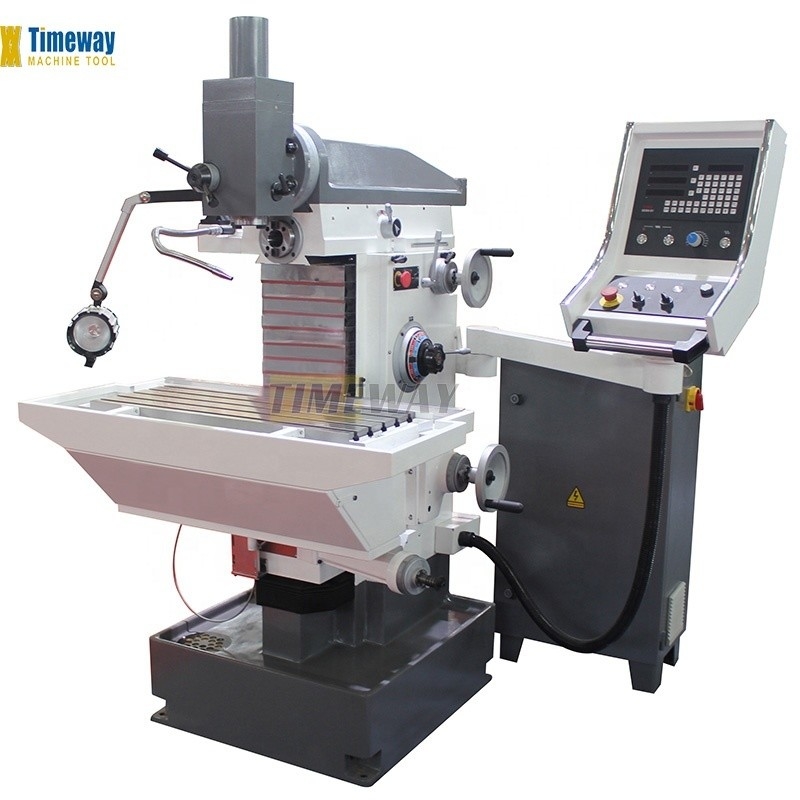

Vertical Tool Milling Machine Universal Top Choice for Machinery Repair Shops
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | UTM320A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 450 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 305 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 40 - 2000 R.p.m |
| Type: | Universal | Voltage: | As Customers' Requirement |
| Dimension(L*W*H): | 1215x1200x1800 Mm | Weight (KG): | 1300 |
| Warranty: | 12 Months | Key Selling Points: | Easy To Operate |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CNC Or Not: | Normal |
| After Warranty Service: | Online Support | Local Service Location: | Chile |
| Table Travel(X): | 450 Mm | Table Travel(Y): | 305 Mm |
| Table Travel(Z): | 400 Mm | Rapid Feed: | 1200 Mm/min |
| Warranty Period: | 1 Year | Weight: | 1300 Kg |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Showroom Location: | Bangladesh, Kazakhstan, Ukraine, Uzbekistan, Philippines, Peru, Indonesia, Russia, Thailand |
| Core Components: | Bearing, Motor, PLC, Other | Port: | China Port |
Product Description
Products Description
* Milling machine for tool construction;
* Automatic feeds on all 3 axes;
* Outer arbor supporting for horizontal milling;
* Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
* Streamlined arrangement of operating controls on the right side;
* Vertical head quill for drilling, with hand lever feed;
* Quill stroke 80mm;
* Central lubrication;
* Hardened guide ways;
* Automatic feeds on all 3 axes;
* Outer arbor supporting for horizontal milling;
* Heavily ribbed cast-iron machine stand ensures maximum static and dynamic rigidity;
* Streamlined arrangement of operating controls on the right side;
* Vertical head quill for drilling, with hand lever feed;
* Quill stroke 80mm;
* Central lubrication;
* Hardened guide ways;
* Can be equipped with Digital Position Indicator
Specification | UTM300A | UTM320A | UTM400A |
Work space dimensions | 300 x750 mm | 320 x 750 mm | 400 x 800 mm |
Vertical table dimensions | 225 x 830 mm | 225 x 830 mm | 250 x 1060 mm |
T-slots,work table | 5 x 14 x 63 mm | 5 x 14 x 63 mm | 6 x 14 x 63 mm |
T-slots,vertical table | 2 x 14 x 126 mm | 3 x 14 x 63 mm | 3 x 14 x 63 mm |
Longitudinal travels(X) | 405(manual) / 395 mm | 450(manual) / 400 mm | 500 mm |
Transverse travel(Y) | 200 mm | 305(manual) / 300 mm | 400 mm |
Vertical travel(Z) | 390(manual) / 380 mm | 400(manual) / 390 mm | 400 mm |
Horizontal spindle(Min.) | 35 mm | 85 ± 63 mm | 95 ± 63 mm |
Horizontal spindle(Max.) | 425 mm | 485 ± 63 mm | 475 ± 63 mm |
Vertical spindle(Min.) | 85 ± 63 mm | 55 ± 63 mm | |
Vertical spindle(Max.) | 440 ± 63 mm | 445 ± 63 mm | |
Max.throat | 188 mm | 160 mm | 540 mm |
Speed range | 40-1600 r/min | 40~2000 r/min. | 40~2000 r/min. |
Spindle mount | ISO 40, Taper 7:24 | ISO 40, 7:24 | ISO 40, Taper 7:24 |
X,Y,Z axis feeds | 10-380 mm/min. | 10~380 mm/min. | |
Rapid feed | 1200 mm/min. | 1200 mm/min. | |
Quill stroke | 80 mm | 80 mm | 80 mm |
Main motor rating | 2.2 kW | 2.2 kw | 3 kw |
Feed motor rating | 3.59 kw | 5 kw | |
Dimensions(LxWxH) | 1170×1210×1600 mm | 1215 x 1200 x 1800 mm | 1390 x 1430 x 1820 mm |
Weight | 1100 Kg | 1300 kg | 1400 Kg |
* Complete tool * Cutter arbor (dia. Φ16, 22, 27, 32mm)* Reducing sleeves (Morse1, 2, 3) * Spring collect (dia. Φ2, 3, 4, 5, 6, 8, 10, 12mm | * Dividing head * Machine vice * Universal angular table * Rotary table * Boring head * 3-axis digital position indicator |
