2600 X/Y/Z Travel BM7110/2 Heavy Duty Universal Bed Type Milling Machine for Benefit
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac, Timeway |
| Certification: | CE ISO |
| Model Number: | BM7110/1, BM710/2, BM7110/3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00 - $75,000.00/sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 800 Set/Sets per Year |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2100, 2600, 3100 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 1400 |
| Spindle Taper: | 7:24, ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 2000 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 22/26 |
| Voltage: | 380V 50Hz | Dimension(L*W*H): | 4200, 5200, 6500x2500x2500mm |
| Weight (KG): | 12000 | Warranty: | One Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2022 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Universal Swivel Head Milling Machine |
| Table Size: | 2000, 2500, 3000x1000mm | Max. Load Capacity: | 4000, 5000, 6000kg |
| X/Y/Z Travel: | 2100, 2600, 3100/1000/1400mm | Vertical Spindle Speed: | 30-2000rpm(2steps) |
| Horizontal Spindle Speed: | 30-2000rpm(2steps) | Weight: | 12000, 15000, 18000kg |
| Power: | 22/26kw | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising Company |
| Showroom Location: | Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Romania, South Africa, Kazakhstan, Uzbekistan, Malaysia, Australia, Turkey, Italy, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand | Core Components: | Motor, Gear, PLC, Gearbox |
| Table Travel (mm): | 2100, 2600, 3100/1000/1400 | Port: | China Port |
Product Description
Product Description

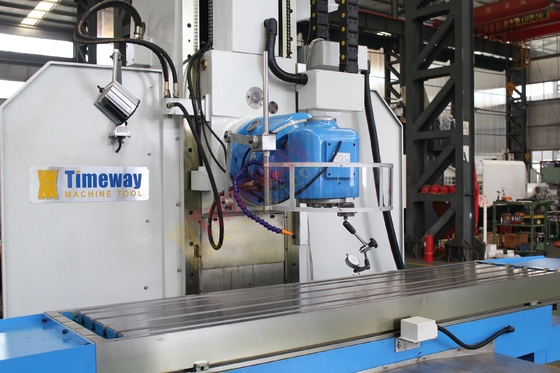

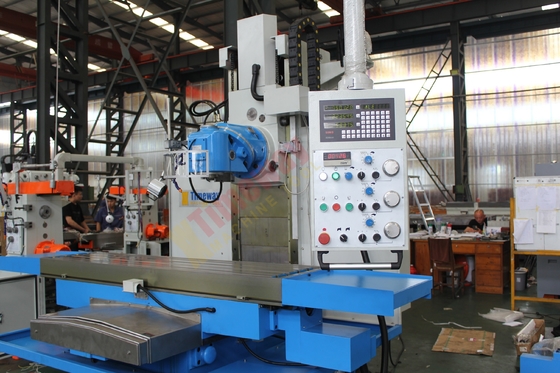

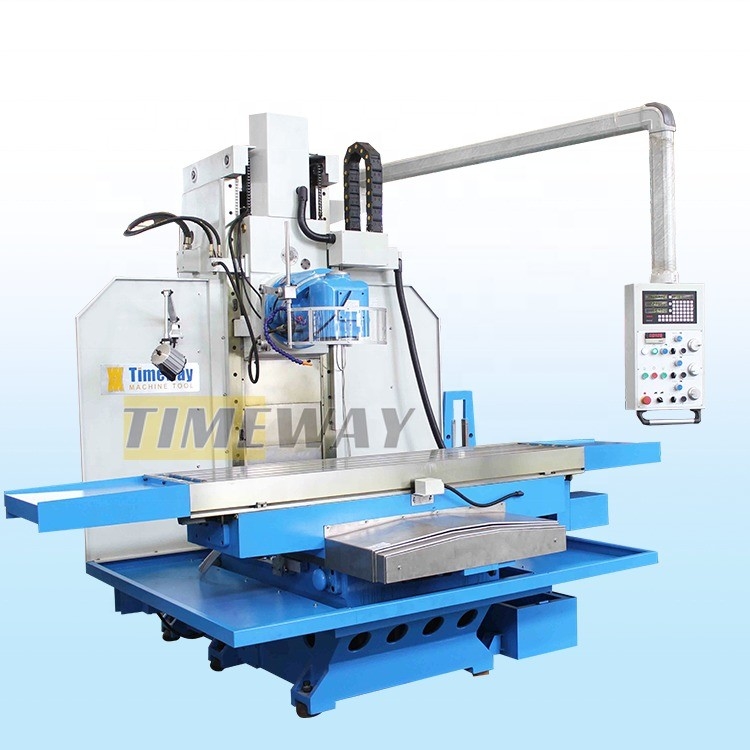

Giant Size Heavy Duty Universal Bed-type Milling Machine with Swivel Milling Head
Features:
1, Rigid grey cast-iron construction allows heavy work load.All guides are hardened, ground, and supplied with oil by a central lubrication unit
2, Universal swivel head swings easily to a horizontal position.Universal milling head system “Huron” can be adjusted to various angles
3, Servo-motors on all axes, infinitely variable feed, rapid feed, and speed control
4, Electronic hand-wheels on all axes
5, Ball screw drive on all axes,Ball screws in all three axis minimize play
6, powerful main motor,Variable speed adjustment with intermediate transmission system for optimal torque and almost constant speed at heavy workloads
7, Solid flat guidings guarantees stability at heavy milling
8, Reinforced saddle in robust box construction
2, Universal swivel head swings easily to a horizontal position.Universal milling head system “Huron” can be adjusted to various angles
3, Servo-motors on all axes, infinitely variable feed, rapid feed, and speed control
4, Electronic hand-wheels on all axes
5, Ball screw drive on all axes,Ball screws in all three axis minimize play
6, powerful main motor,Variable speed adjustment with intermediate transmission system for optimal torque and almost constant speed at heavy workloads
7, Solid flat guidings guarantees stability at heavy milling
8, Reinforced saddle in robust box construction
Specification
Specification | Unit | BM7110/1 | BM7110/2 | BM7110/3 |
Table size | mm | 1000x2000 | 1000x2500 | 1000x3000 |
X/Y/Z travel | mm | 2100x1000x1400 | 2600x1000x1400 | 3100x1000x1400 |
Max table weight | Kg | 4000 | 5000 | 6000 |
T-slots (NO./width/pitch) | mm | 7x22x140 | 7x22x140 | 7x22x140 |
Spindle speed series and range | rpm | 30-2000 (2steps) | 30-2000 (2steps) | 30-2000 (2steps) |
Main motor power | KW | 22/26 | 22/26 | 22/26 |
Overall Dimensions | mm | 4200x2500x2500 | 5200x2500x2500 | 6500x2500x2500 |
Machine weight | KG | 12000 | 15000 | 18000 |
Positive Comments From Customers
Company Profile

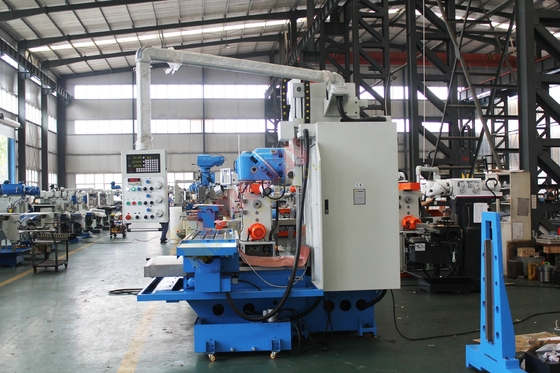

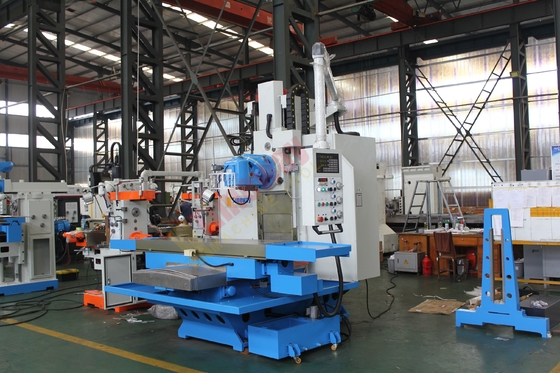

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
