ISO50 Spindle Taper Bed-Type Milling Machine BM716 for Versatile Vertical Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO9001 |
| Model Number: | BM716 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1800 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 900 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 40 - 1200 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 11 |
| Voltage: | As Require | Dimension(L*W*H): | 4300x3200x3300mm |
| Weight (KG): | 10000 | Warranty: | 1 Year, 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 2500x575mm |
| X Axis Travel: | 1800mm | Spindle Speed: | 40-1200(12steps) |
| Machine Type: | Bed-type Milling Machine | Power: | 11kw |
| Y Axis Travel: | 600mm | Z-axis Travel: | 900mm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Other | Showroom Location: | Uzbekistan, Malaysia, Australia, Turkey, Germany, Viet Nam, Peru, Indonesia |
| Core Components: | Bearing, Motor, Other | Table Travel (mm): | 1800x600x900 |
| Year: | 2022 | Port: | China Port |
Product Description

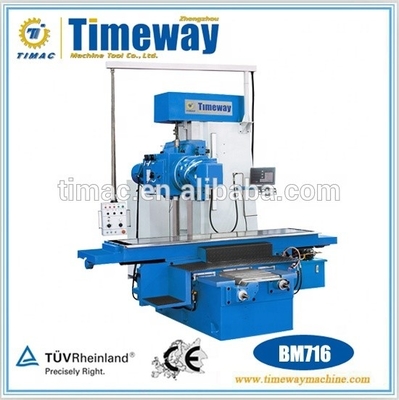

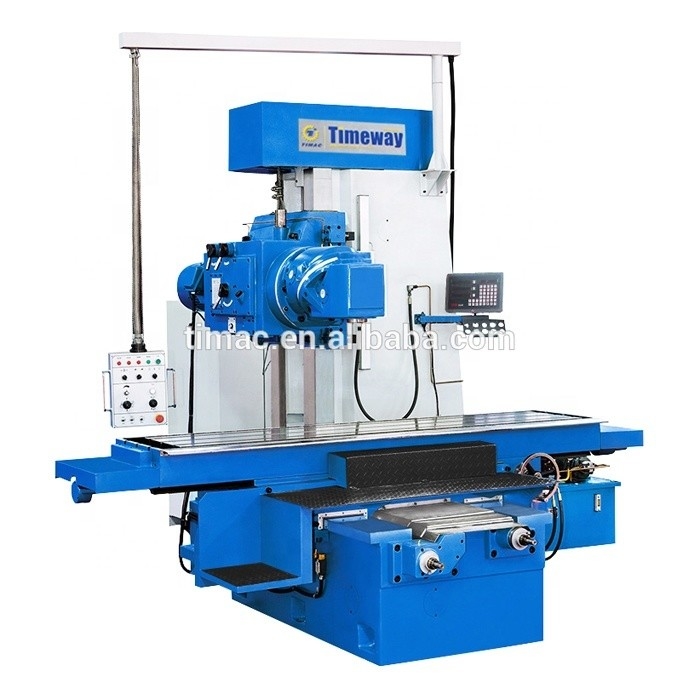

Universal Head Vertical Bed-type Milling Machine
BM716
Features:
- The Universal Heavy-Weight with high table load capacity and powerful main spindle drive, with hydraulic axis clamping and universal swivel head.
- Robust and proven design – very rigid, heavy machine bed made of premium cast-iron to ensure maximum precision and low vibration.
- Increased operator comfort with large step guard along the entire work table length – easy accessibility to the universal cutter head for easy tooling and unloading of machine when working with large workpieces.
- Robust guideways ensure maximum precision and durability; an automatic central lubrication system minimizes maintenance work.
- The worktable features are optimized to fulfill the needs of a wide spectrum of applications: large table setup area of 2500x575mm and high table load capacity of 3000kg.
- Easy and quick change-over from vertical to horizontal alignment of cutter spindle.
- Infinitely variable automatic linear and cross feed.
- Reliable hydraulic clamping on all axes.
- Powerful 11 kW motor for high-capacity machining.

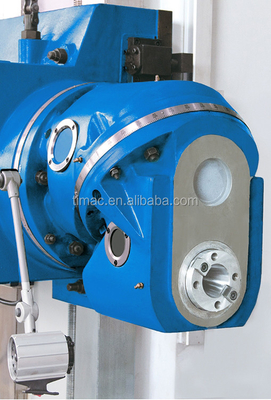

- The universal cutter head features a 360° swivel and is easy to control for versatile and complex machining of a wide variety of workpieces. 2 swivel levels allow setting of virtually any angle. It features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale from 90º to 45º. This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.
- The machine includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bed-type milling machine design for machining with long cutter arbors.
Horizontal Cutting Function:
Technical Parameter:
| Specification | BM716 | |
| Table | Table size | 2500x575 mm |
| T slot number/width/distance | 3-23-152 mm | |
| Max. load of Table | 3000 kg | |
| Machining range | Longitudinal travel (X-axis) | 1800 (2000) mm |
| Cross travel (Y-axis) | 600 mm | |
| Vertical travel (Z-axis) | 900 mm | |
| Main spindle | Spindle taper | ISO50 7:24 |
| Spindle speed step | 12steps, 40-1200rpm | |
| Distance from vertical spindle axis to column surface | 110 mm | |
| Min. distance from vertical spindle nose to table surface | 49 mm | |
| Min. distance from horizontal spindle axis to table surface | 30 mm | |
| Feeds | Longitudinal/cross feed | 20-2200 mm/min (variable) |
| Vertical feed | 12-1320 mm/min (variable) | |
| Longitudinal/cross rapid speed | 3000 mm/min | |
| Rapid Traverse vertical | 1800 mm/min | |
| Motor power | Main motor | 11 kw |
| Feed motor | 2.9 kw | |
| Elevating motor for headstock | 2 kw | |
| Coolant motor | 550 w | |
| Others | Package dimension | 3280x2280x3100 mm 2580x1990x1230 mm |
| Overall dimension | 4300x3200x3300 mm | |
| Machine weight | 10000 kg | |
Standard Accessories:
• ISO50 Milling chuck set(8pcs); • ISO50 Milling arbor(φ40mm);
• Draw bar; • 7:24 Taper sleeve;
• Quartz lamp; • Tool box;
• Oil gun, Coolant system; • Foundation bolts;
• Inner hexagon spanner; • Double-head wrench;
• CE standard electric components; • Operation manual(English edition);
Optional Accessories:
• 3 axes DRO; • Spindle guard(eye protection);
• Machine vice 200mm; • Universal dividing head;
• Rotary table 500mm;
