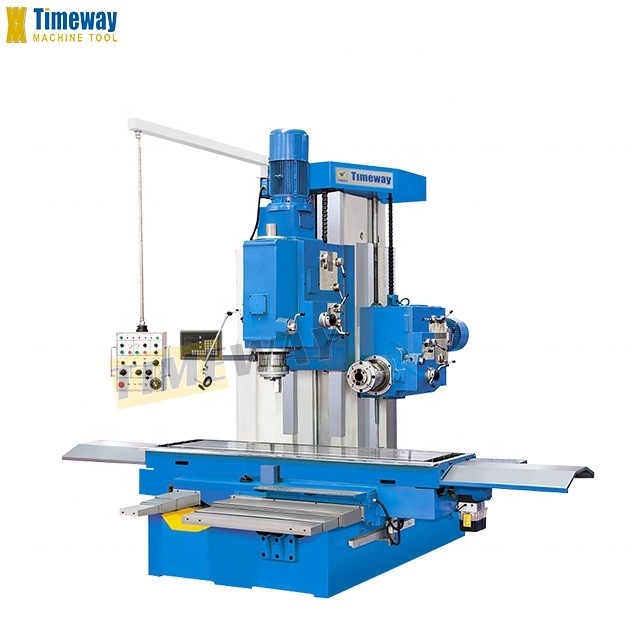

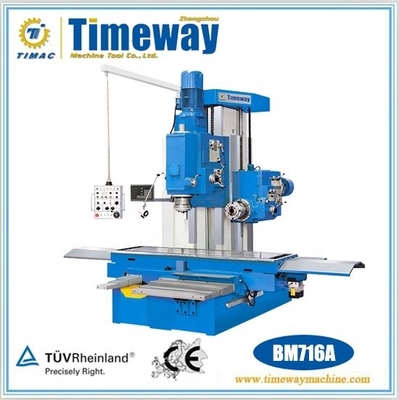

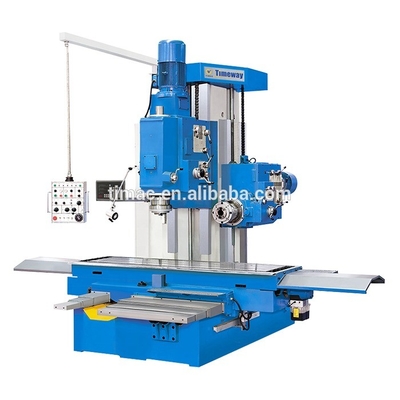

Professional Large-Sized Bed-Type Boring and Milling Machine for Your Business
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO9001 |
| Model Number: | BM716A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets 1-1 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1630 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 550 | Table Travel (Z) (mm): | 800 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 23 - 1000 R.p.m |
| Type: | VERTICAL&HORIZONTAL | Spindle Motor Power(kW): | 11 Kw |
| Voltage: | Customer Requirement | Dimension(L*W*H): | 4100X3700X4250MM |
| Weight (KG): | 17000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X-axis Travel: | 1630 Mm |
| Y-axis Travel: | 550 Mm | Z-axis Travel: | 800 Mm |
| T-slots: | 5/22 | Max. Weight Of Workpiece: | 3000 Kg |
| Spindle Taper(H/V): | ISO50 | Spindle Speed(H/V): | 23-1000 Rpm(12 Steps) |
| Weight: | 17000kg | Power: | 11 KW |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Showroom Location: | Chile, Colombia, Malaysia, Australia, United Kingdom, United States, Italy, Philippines, Brazil, Peru, India, Mexico |
| Core Components: | Motor, Other | Table Travel (mm): | 1630x550 |
| Port: | China Port | ||
Product Description
Products Description
The machine is applied to milling bigger workpiece and semi-finish machining, the machine can process the plane (horizontal plane, vertical plane), slot (key slot, T-slot, dovetail slot), boring hole and countersink of box and so on.
The machine has good rigidity, so it can heavily cut workpiece.
Power of main motor is high, and speed range of the motor is wide, which can exert the efficiency of tool, make high speed cutting.
To stick plastic on the interface of table and saddle, saddle and base, which improve the wear resistance and life of machine, reduce the friction factor.
Stability of machine is very good due to adopting rectangle guideway on the column and base.
One servo motor is installed in feed box, which controls X, Y, Z three-direction feed through three pieces of electromagnetic clutches.
Hydraulic pressure is adopted in X, Y, Z three-direction clampness.
The machine has good rigidity, so it can heavily cut workpiece.
Power of main motor is high, and speed range of the motor is wide, which can exert the efficiency of tool, make high speed cutting.
To stick plastic on the interface of table and saddle, saddle and base, which improve the wear resistance and life of machine, reduce the friction factor.
Stability of machine is very good due to adopting rectangle guideway on the column and base.
One servo motor is installed in feed box, which controls X, Y, Z three-direction feed through three pieces of electromagnetic clutches.
Hydraulic pressure is adopted in X, Y, Z three-direction clampness.
Specification | Unit | BM716A |
Table size | mm | 2400x650 |
Longitudinal travel of table | mm | 1630 |
Cross travel of table | mm | 550 |
Vertical travel of horizontal spindle | mm | 800 |
Vertical travel of vertical spindle | mm | 800 |
Min. distance between horizontal spindle and table surface | mm | 20 |
Min. distance between vertical spindle nose and table surface | mm | 20 |
T-slot of table (No. x width) | mm | 5x22 |
Taper of spindle (V/H Spindle) | - | ISO50 |
Stroke of spindle sleeve (V/H Spindle) | mm | 190 |
Spindle speed range (V/H Spindle) | rpm | 23-1000 |
Spindle speed steps | steps | 12 |
Longitudinal, cross feed range | - | Stepless |
Vertical feed range (V/H Spindle) | - | Stepless |
Longitudinal, cross rapid feed (V/H Spindle) | mm/min. | 2200 |
Vertical rapid feed (V/H Spindle) | mm/min. | 1100 |
Sleeve automatically feed speed steps | steps | 6 |
Sleeve automatically feed speed range (V/H Spindle) | mm/rev. | 0.05-0.4 |
Spindle motor power (V/H Spindle) | kw | 11 |
Feed motor power | kw | 4 |
Max. load on table | kg | 3000 |
Overall dimension (LxWxH) | mm | 4100x3700x4250 |
Net weight (approximate) | kg | 17000 |
