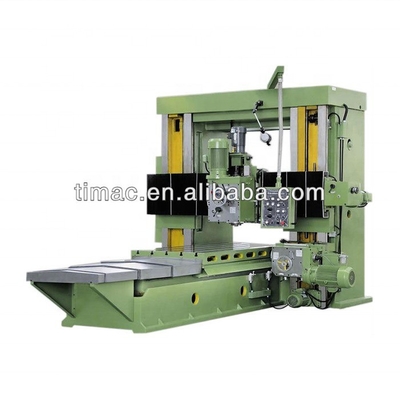

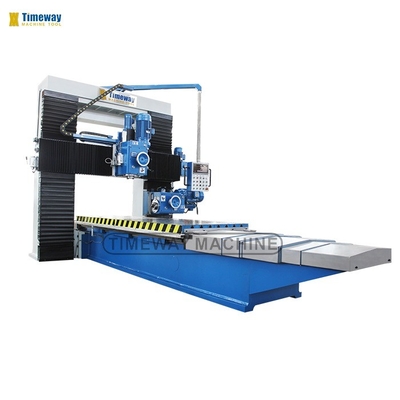

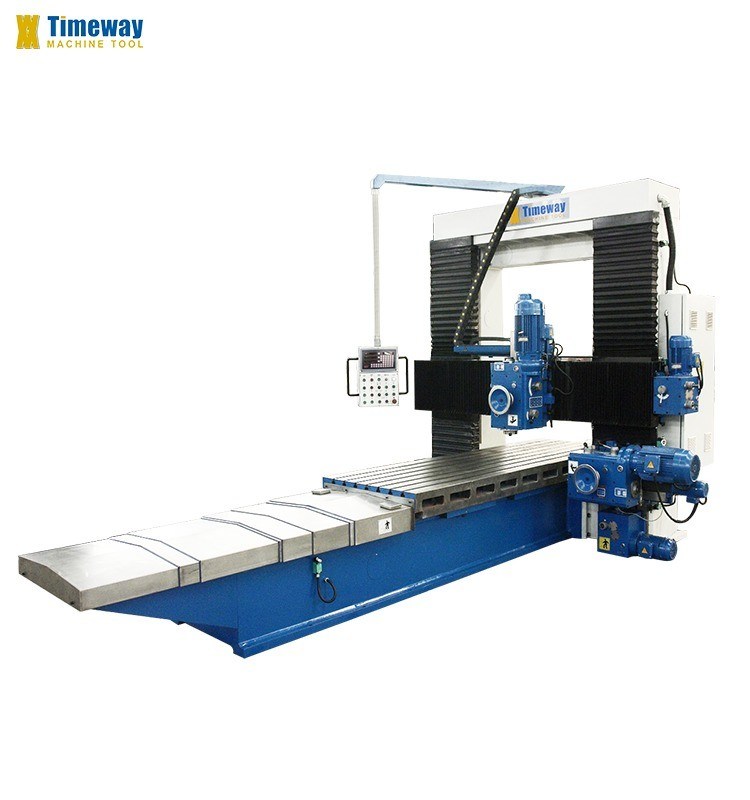

1200x6000mm Table Size Universal Plano Milling Machines for Gantry Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | ISO9001; CE |
| Model Number: | M2016/60 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,850.00/sets 1-2 sets |
| Packaging Details: | wood case |
| Supply Ability: | 30 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 6000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 2200 | Table Travel (Z) (mm): | 1000 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 10 - 685 R.p.m |
| Type: | Gantry | Spindle Motor Power(kW): | 7.5 |
| Voltage: | As Per Customer's Request | Dimension(L*W*H): | 14.08 X 3.23 X 3 M |
| Weight (KG): | 25000 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| After-sales Service Provided: | Field Installation, Commissioning And Training | Gantry Milling Machine: | Milling Machine |
| Power: | 7.5 Kw | X-axis Travel: | 6000mm |
| Y-axis Travel: | 2200mm | Z-axis Travel: | 1000mm |
| Number Of Axes: | 2 | Condition: | New |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Malaysia, Australia, Viet Nam, Brazil, Indonesia, Russia, Thailand |
| Core Components: | Motor, Other, Gearbox | Table Travel (mm): | 6000x2000x1500 |
| Port: | China Port | ||
Product Description
1200*6000mm Table Size / Universal Plano Milling Machines M2016/60
Application:
X20 series heavy gantry milling machines are high-tech products with high working efficiency.The core technique of it originates from Taiwan, the scientific & logical design of the structure and the adoption of the advanced function unit can realize strong cutting function and safe & reli-able movement and long working life.
It is used in machining work,moulding and some other industries,especially the machining of plane / end face / inclined plane / T slot / combined guideway of large / medium / small machine parts.
Feature:
1.Heat-treatment technics & mechanical lubrication are adopted on the guideway of the machine body to reduce friction & prolong the working life of the machine.
2.Stepless table speed change.
3.Rigid machine bed / beam / column ensure stability of the machine in strong cutting.
4.Milling head can move vertically or swivel ±30°.
| Specification | X20 SERIES HEAVY GANTRY MILLING MACHINES | ||||
| M2014/20 | M2014/40 | M2016/40 | M2016/60 | ||
| Table size mm | 1000 x 2000 | 1000 x 4000 | 1200 x 4000 | 1200 x 6000 | |
| Table feeding speed mm/min | 0-260 | ||||
| Table rapid feed speed mm/min | 2500 | ||||
| Power of table motor kw | 4 | 5.5 | 7.5 | ||
| Max.table loadkg | 4000 | 6000 | 8000 | 10000 | |
| Max.allowable workpiece dimensions | Length mm | 2000 | 4000 | 4000 | 6000 |
| Width mm | 1400 | 1600 | |||
| Height mm | 800 | 1200 | |||
| Dis.between columns mm | 1450 | 1620 | |||
| Spindle motor power kw | 7.5 | ||||
| Spindle taper | ISO50 | ||||
| Power of spindle feed motor kw | 1.5 | ||||
| Spindle speed r/min | 100-685(6 Steps) | ||||
| Milling head swivel angle | ± 30° | ||||
| Dis. Between vertical spindle nose & table surfacemm | 0-800 | 0-1200 | |||
| Dis. Between horizontal spindle nose & table surface mm | 100 | ||||
| Recommendatory dia.of tools mm | φ160 | φ200 | |||
| External dimensions | Length mm | 6080 | 10080 | 10080 | 14080 |
| Width mm | 2630 | 2630 | 3230 | 3230 | |
| Height mm | 2800 | 2800 | 3000 | 3000 | |
