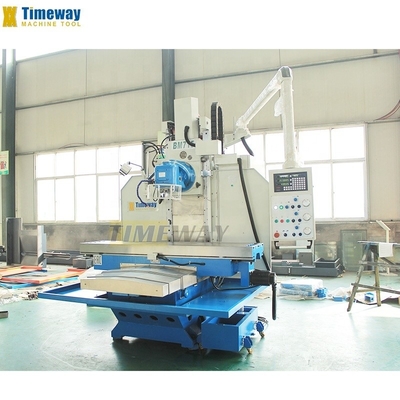

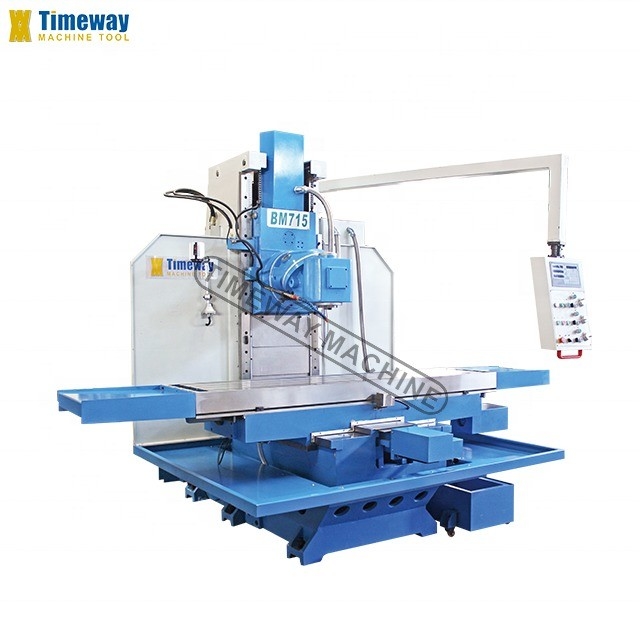

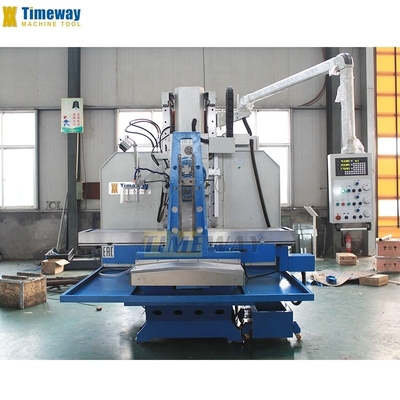

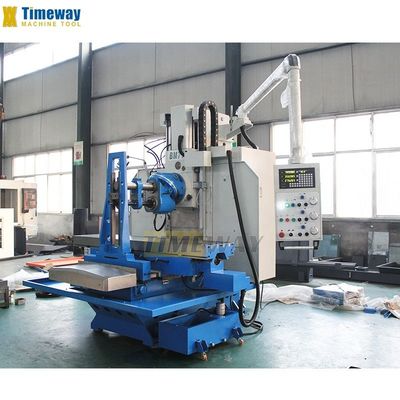

3-Axis BM715 PLC Control Bed Type Vertical Universal Milling Machine for Industrial
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $39,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650 | Table Travel (Z) (mm): | 650 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 6 - 1500 R.p.m |
| Type: | BED-TYPE | Spindle Motor Power(kW): | 11kw |
| Voltage: | As Customers' Requirement | Dimension(L*W*H): | 3220x2420x280 |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Product Type: | Bed Type Milling Lathe | Power: | 11kw |
| Table Travel(X): | 1500 Mm | Table Travel(Y): | 650 Mm |
| Table Travel(Z): | 650 Mm | Cooling Pump Motor Power: | 90 W |
| Weight: | 7300 Kg | Warranty Period: | 1 Year |
| Spindle Hole Taper: | 7:24 ISO50 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining |
| Showroom Location: | South Africa, Australia, Turkey, Germany, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Thailand | Table Travel (mm): | 1500x650x650 (700) |
| Year: | New | Core Components: | Bearing, Motor, Gear, PLC, Gearbox, Casting Iron |
| Port: | China Port | ||
Product Description
Products Description
Specifications | Unit | BM715 |
Spindle hole taper | mm | 7:24 ISO50 |
Spindle speed range | r/min | Variable 6-300,30-1500 |
Distance between spindle axis and column guideway | mm | 610 |
Distance between spindle nose and table surface(V) | mm | 0-650 |
Distance between spindle axis and table surface(H) | mm | 8-660 |
Table size | mm | 2100*500 |
T slots | mm | 4/20/100 |
Table travel-X | mm | 1500 |
Table travel-Y | mm | 650 |
Table feed-X/Y | mm/min | 2.5-3000 |
Table feed-Z | mm/min | 2.5-2500 |
Table rapid feed X/Y/Z | mm/min | 6000/6000/3000 |
Main motor power | Kw | 11 |
Torque of X/Y/Z axis AC servo motor | Nm | 18/23/18 |
Cooling pump motor power | w | 90 |
Overall size | mm | 3220×2420×2800 |
Weight | kg | 7300 |
Electric cabinet
Hung up control panel
Oil collecting plate
Coolant pump
Draw bar
Manual pulse generator (MPG)
Manual pulse generator (MPG)
Auto. lubricate pump
Machine vise
Collet chuck
Reduction sleeve
Work light
Work light
3axis digital readout system(DRO)
Wrenches
Clamping kits
Air power draw bar
Rotary table
Dividing head
