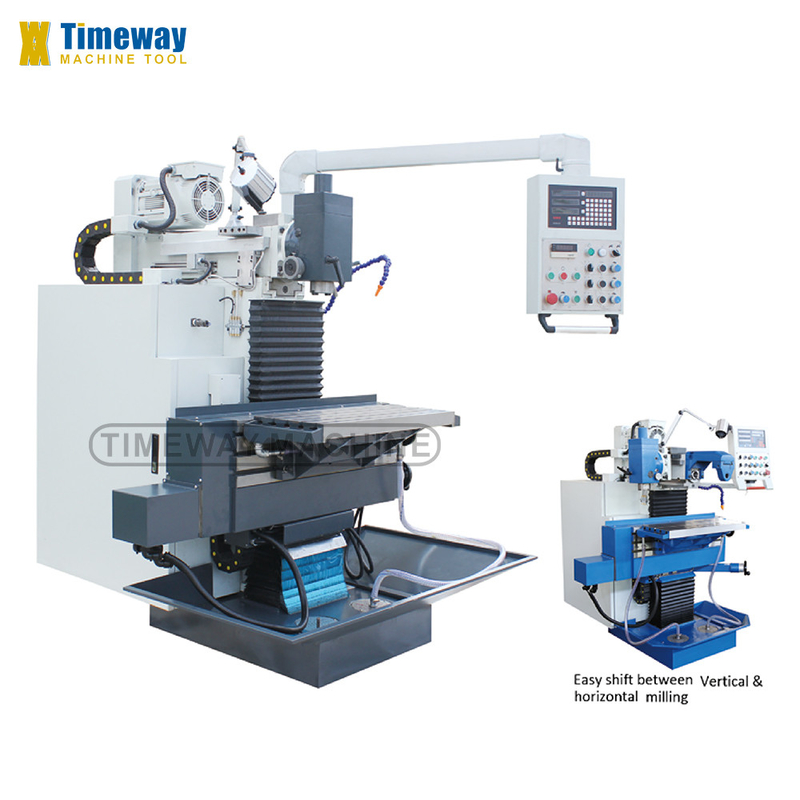

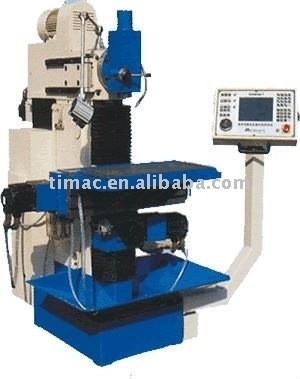

405mm X-axis Travel 3 Axis CNC Universal Tool Milling Machine With Rotary Head
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO |
| Model Number: | UTM320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | Range Of Spindle Speed(r.p.m): | 40 - 2000 |
|---|---|---|---|
| Number Of Axes: | 3 | No. Of Spindles: | Single |
| Machining Capacity: | Light Duty | Spindle Taper: | NT40 |
| Table Travel (X) (mm): | 405 | Table Travel (Y) (mm): | 305 |
| Table Travel (Z) (mm): | 400 | Positioning Accuracy (mm): | ±0.002 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Voltage: | 220v/380v |
| Dimension(L*W*H): | 1500x1700x1800mm | CNC Control System: | Optional |
| Key Selling Points: | Competitive Price | Weight (KG): | 1450 |
| Warranty: | 1 Year | Max. Table Load(kg): | 160 Kg |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Name: | CNC Universal Tool Milling Machine |
| After Warranty Service: | Online Support | Table Size: | 750x320mm |
| Vertical Table Dimension: | 890x225mm | X-axis Travel: | 405mm |
| Y-axis Travel: | 305mm | Z-axis Travel: | 400mm |
| Quill Stroke: | 60mm | Condition: | New |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Brazil, India, Spain, Kenya |
| Core Components: | Pump, Gear, PLC, Pressure Vessel, Engine | Year: | Latest Day |
Product Description
Product Paramenters
Tool Milling Machine
Specification | Unit | UTM320 | UTM400 | UTM450 | ||
Work space dimensions | mm | 750x320 | 800x400 | 850x450 | ||
Vertical table dimensions | mm | 890x225 | 1020x225 | 1190x250 | ||
T-slots,work table | mm | (5)14x63 | (6)14x63 | (7)14x63 | ||
T-slots,vertical table | mm | (3)14x63 | (3)14x63 | (3)14x63 | ||
Table load capacity | kg | 160 | 200 | 300 | ||
Travel | Longitudinal(X) | mm | 405 | 500 | 600 | |
Transverse(Y) | mm | 305 | 400 | 450 | ||
Vertical(Z) | mm | 400 | 400 | 450 | ||
Speed range | rpm | (2)40-2000 | (2)40-2000 | (2)40-2000 | ||
Spindle mount | NT40 | NT40 | NT40 | |||
Main motor rating | kw | 3.7 | 3.7 | 5.5 | ||
Dimensions (LxWxH) | mm | 1500x1700x1800 | 1500x1700x1800 | 1600x1800x2000 | ||
Weight | Kg | 1450 | 1550 | 1750 | ||
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
