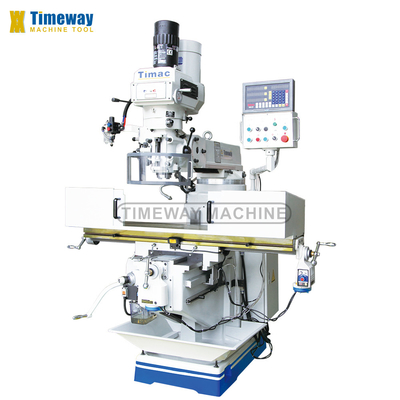

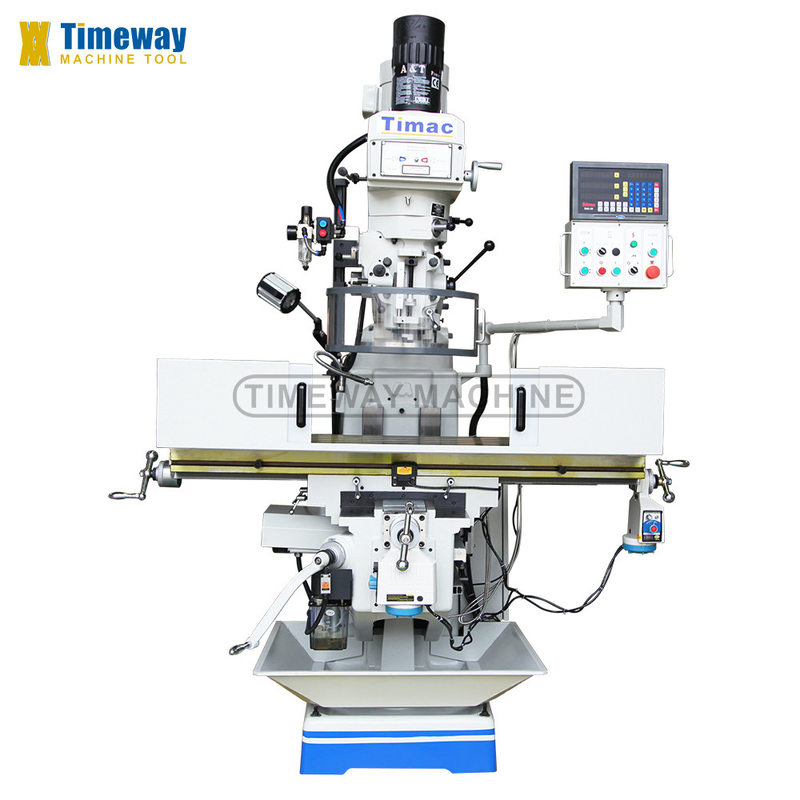

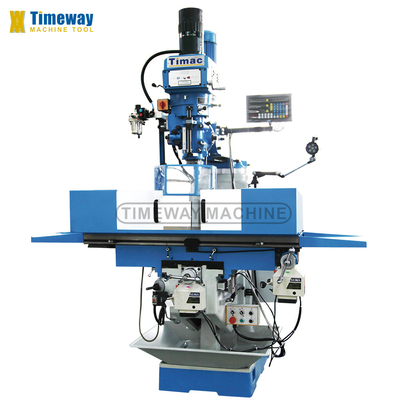

220V/380V Normal or CNC Applications Turret Milling Machine with Working Table
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE norms, ISO9001 |
| Model Number: | M250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $39,900.00/sets 1-2 sets |
| Packaging Details: | in wooden case(can be fumigated) or plywood case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 800/900 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 380 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Voltage: | 220V/380V |
| Dimension(L*W*H): | Depends On Models | Weight (KG): | 1300 |
| Warranty: | 1year | Key Selling Points: | Automatic |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Table Size: | Depends On Different Models | Color: | Customized |
| Machine Type: | Vertical Turret Milling Machine | Power(W): | Depends On Different Models |
| Weight: | As Model | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Chile, Romania, Kyrgyzstan | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Colombia, Algeria, Kazakhstan, Uzbekistan | Core Components: | Bearing, Motor, Pump, Pressure Vessel, Engine, Gearbox |
| Port: | China Port | ||
Product Description
Vertical Turret Milling Machine,Swivel Head Milling Machine,
Features:
The large number of mill head adjustments makes these robust and stable universal milling machine idea for drilling and milling simple to difficult workpiece in single part production,
repair work training etc.

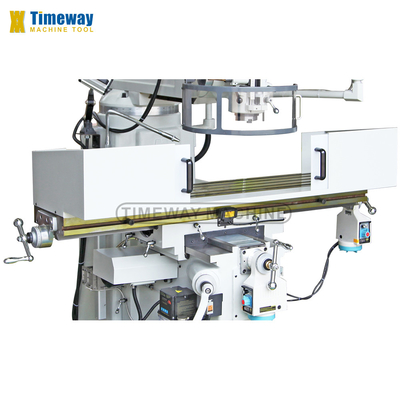

1.Work table features large clamping area, surface hardened and polished,
2.Universal mill head can be turned, tilted and swiveled.
3.Hardened and polished guideways in all axis.
4.3 automatic spindle feeds come standard.
5.Spindle is chromium plated and features micrometer depth stop.
6.Powerful coolant device included in machine base.
Standard Accessories:

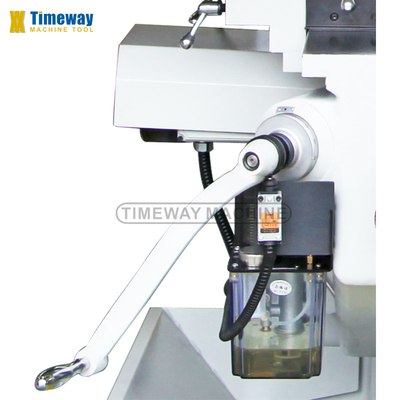

Draw bar, Electric cabinet, LED machine light, Handle oil pump, Coolat device, Tool box & tools, Operation manual(English)
Optional Accessories:
Inverter milling head, Air drw bar, 2/3-axis digital readout(DRO), Spindle feed ruler, Spindle protect guard, Worktable protect guard, Plastic splash guard, Electronic central lubrication,

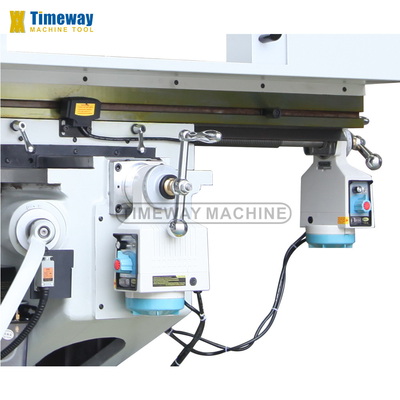

Coolant tray, Electro power feed for X/Y/Z axis, Gear box power feed, Table lifting motor,
Rotary table, Dividing head, Slotting head, Machine vise with swivel base, Milling chuck
collects kits 8/15 pcs, Deluxe clamping kit set 58 pcs.
Parameters:
| Specification | Unit | M250C | M250D | M300 | M300A | M330 | M330A | |
| Table size | mm | 254×1270 | 305×1370 | 330×1370 | ||||
| 254×1370 | 305×1500 | 330×1500 | ||||||
| Longitudianl travel | mm | 850/950 | 870/1000 | 740/1000 | ||||
| Cross travel | mm | 420 | 380 | 368 | ||||
| Vertical travel | mm | 420 | 420 | 450 | ||||
| T-slot(NO.& Size) | mm | 3×16 | ||||||
| Ram travel | mm | 470 | 500 | |||||
| Distance from spndle to table | mm | 0-420 | 0-435 | 0-450 | ||||
| Taper of spindle hole | Standard ISO40 | |||||||
| Spindle travel | mm | 127 | ||||||
| Spindle speed | rpm | Standard:step16speed 50HZ:65-4500 60HZ:80-5440 | ||||||
| Optional:Variable speed 65-3750 | ||||||||
| Auto.feed of quill | mm/r | 3steps:0.04(0.0015")/0.08(0.003")/0.15(0.006") | ||||||
| Spindle motor | kw/HP | 3.75kw/5HP | ||||||
| Head Swivel | 90º | |||||||
| Head tilting | fix | 45º | fix | 45º | fix | |||
| Dimension of package | One | mm | 1516×1550×2080 | 1566×1650×2080 | 1800×2016×2180 | |||
| Two | mm | 1650×1790×2170 | 1720×1800×2175 | 1800×2200×2180 | ||||
| Gross weight | kg | 1590 | 1700 | 1750 | 2300 | 2350 | ||
