Conventional Vertical Gear Hobbing Machine for Gear Manufacturing Process
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,150.00/sets >=2 sets |
| Packaging Details: | in pallet/plywood case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Type: | Gear Hobbing Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Gearbox, Motor, Gear |
| Voltage: | As Require | Dimension(L*W*H): | 1825x935x1930mm |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Weight (KG): | 2600 | Power (kW): | 4 |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops | Showroom Location: | Germany, Russia, Romania, Uzbekistan, Malaysia, Australia |
| Name: | Gear Hobbing Machine | Machine Type: | Conventional |
| Model: | GHM500/1 | COLOR: | Standard |
| Maximum Cutting Modulus Steel: | 5mm | Maximum Cutting Modulus Cast Iron: | 6mm |
| Maximum Diameter Of Hob: | 120mm | Main Motor Power: | 3KW |
| Warranty Period: | 1 Year | Port: | China Port |
Product Description

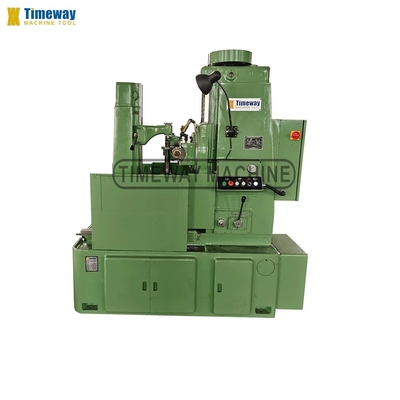

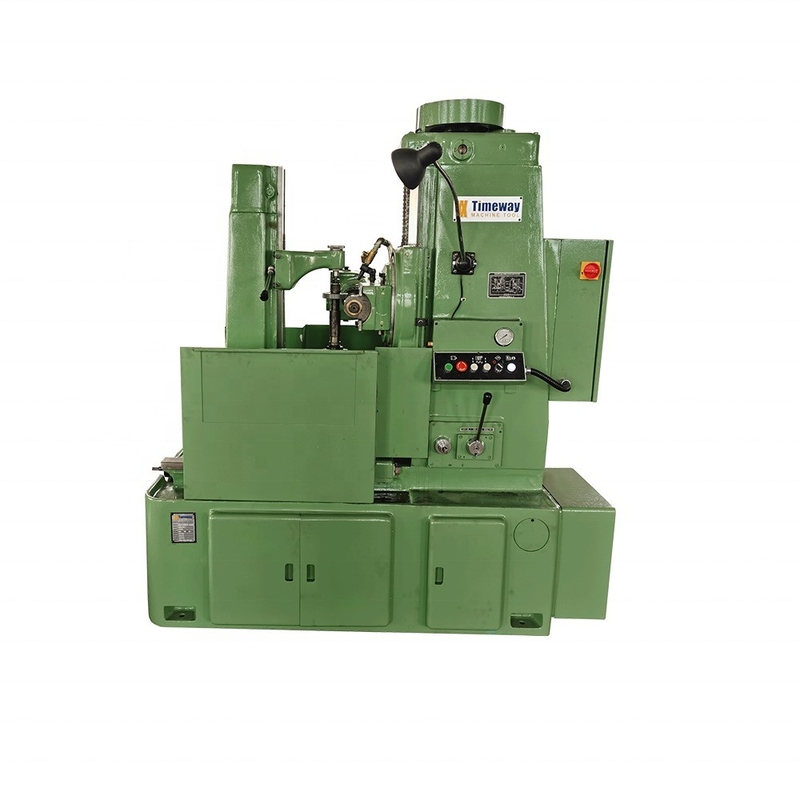

Vertical Gear Hobbing Machine GHM500/1
| Specification | GHM500 | GHM500/1 | |
| Maximum cutting modulus | Steel (mm) | 5 | |
|
| Cast iron (mm) | 6 | |
| Maximum diameter of processed spur gear | With external bracket (mm) | 350 | |
|
| Without external bracket (mm) | 500 | |
| Maximum diameter of processed cylindrical helical gear | When the rotation angle is 30°(mm) | 370 | |
|
| When the rotation angle is 45°(mm) | 250 | |
| Maximum vertical stroke length of hob (mm) | 260 | 460 | |
| Maximum hobbing length (mm) | 240 | 440 | |
| Hob spindle to worktable | Maximum (mm) | 320 | |
| Distance between center lines | Minimum (30 mm when the distance between the table surface and the hob spindle is less than 85 mm) | 25 | |
| The minimum distance from the table surface to the center line of the hob spindle (mm) | 170 | ||
| Diameter of interchangeable hob spindle (mm) | 22, 27, 32 | ||
| Maximum diameter of hob (mm) | 120 | ||
| Table hole diameter (mm) | 60 | ||
| Diameter of worktable spindle (mm) | 30 | ||
| Spindle speed of hob | Steps | 8 | |
|
| Range (rpm) | 50~275 | |
| Vertical hob feed per revolution of workpiece (mm/rev) | 0.24~4.25 | ||
| Main motor power (kw) | 3 | ||
| Main motor speed (rev/min) | 1430 | ||
| Pump motor power (kw) | 0.125 | ||
| Pump motor speed (rev/min) | 2790 | ||
| Machine weight (with accessories) (kg) | 2400 | 2600 | |
| Machine size (L×W×H) (mm) | 1825×935×1730 | 1825×935×1930 | |

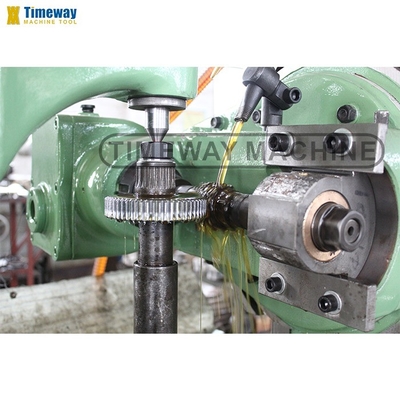

This machine is suitable for processing various cylindrical spur gears, helical gears and worm gears.
| Why choose TIMEWAY MACHINE? |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
