670mm Cross Travel Y-axis Metal Bed Type Milling Machine BM715 for Industry Production
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $47,000.00/sets >=1 sets |
| Packaging Details: | in pallet |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 670 | Table Travel (Z) (mm): | 670 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 35 - 1345 R.p.m |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 220v/380v/400v | Dimension(L*W*H): | 3300x2380x2750mm |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 2100x500mm |
| Longitudinal Travel (X-axis): | 1500mm | Cross Travel (Y-axis): | 670mm |
| Vertical Travel (Z-axis): | 670mm | T-slot Number/width/distance: | 4/20/100 |
| Type Of Slides: | Square (Y & Z) | Motor Power: | 7.5(10HP)kw |
| Floor Space Required: | 4925x2380mm | Overall Dimension: | 3300x2380x2750mm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Argentina, Algeria, Romania, Bangladesh, Kyrgyzstan, Malaysia, Egypt, Saudi Arabia, Mexico |
| Core Components: | Gear, Engine | Table Travel (mm): | 2100 X 500mm |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description

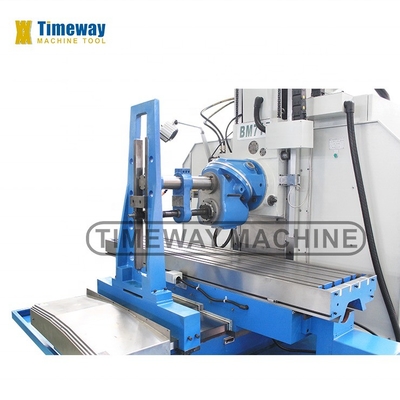

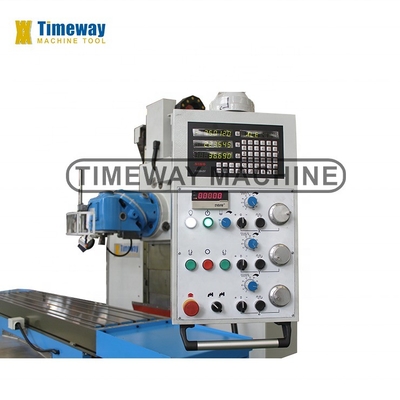

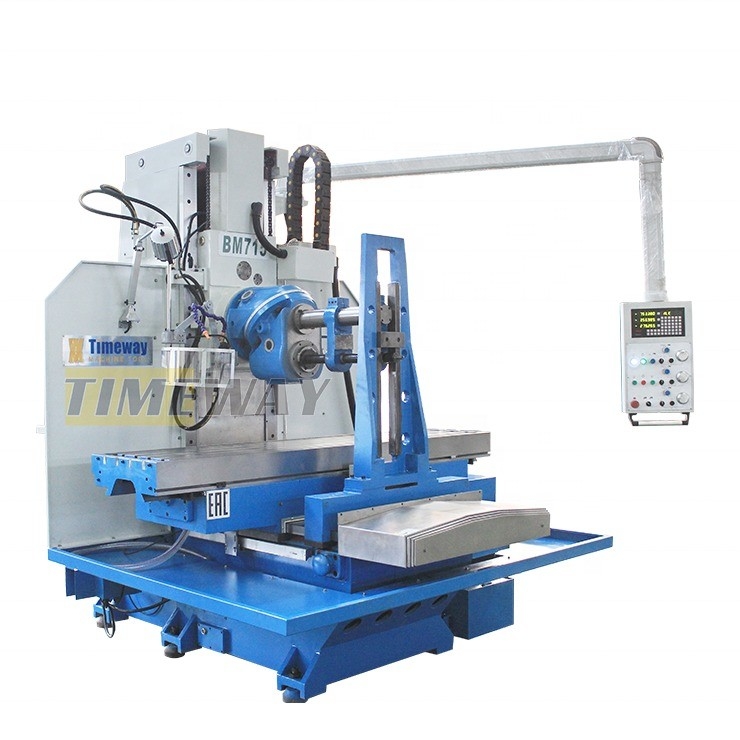

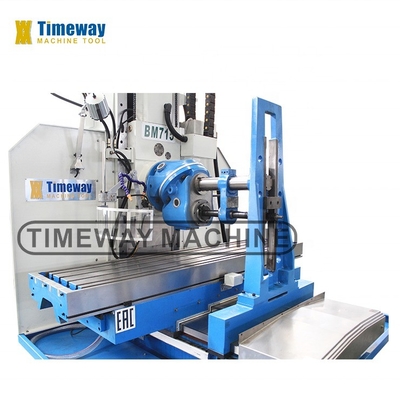

bed type milling machine
Features:
* Servo feed motors on X, Y, Z-axis ensures response,accuracy and consistent feed;
* Micro switch on the manual knee handle for additional operator safety;
* Tool box and operations manual;
* Ball screw X, Y-axis providing smooth and accurate operation;

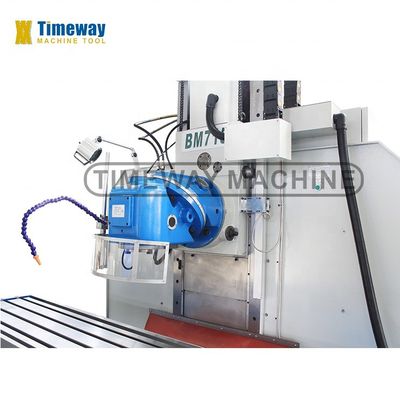

* Coolant system and halogen light included;
* Square construction slides for X, Z-axis to maximize rigidity;
* Clutch hand wheels X, Y-axis;
* Automatic oil lubrication pump and reservoir;

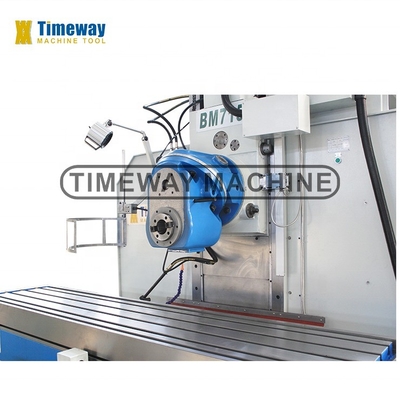

* Universal head swivels to horizontal position;
* Servo feed motors on X, Y, Z-axis ensures response,accuracy and consistent feed;
* Micro switch on the manual knee handle for additional operator safety;
* Tool box and operations manual;
* Ball screw X, Y-axis providing smooth and accurate operation;
* Coolant system and halogen light included;
* Square construction slides for X, Z-axis to maximize rigidity;
* Clutch hand wheels X, Y-axis;
* Automatic oil lubrication pump and reservoir;
* Universal head swivels to horizontal position;
Specification | Unit | BM715 |
Table size | mm | 2100 x 500 |
Spindle taper | - | ISO50 |
Longitudinal travel (X-axis) | mm | 1500 |
Cross travel (Y-axis) | mm | 670mm |
Vertical travel (Z-axis) | mm | 670mm |
T-slot number/width/distance | mm | 4/20/100 |
Type of slides | - | Square (Y & Z) |
Distance from spindle axis to column guideway | mm | 610mm |
Type of table power feed (X , Y & Z-axis) | - | Servo Drive |
Longitudinal & Cross feed (X & Y-axis) | mm/min | 20 ~ 1800 |
Longitudinal & Cross rapid (X & Y-axis) | mm/min | 3500 |
Vertical feed (Z-axis) | mm/min | 10 ~ 900 |
Vertical rapid (Z-axis) | mm/min | 1750 |
Work table load capacity | kg | 2000 |
Spindle speeds vertical / horizontal | r.p.m | 12steps (35-1345) |
Motor power | kw | 7.5(10HP) |
Floor space required | mm | 4925 x 2380 |
Overall dimension | mm | 3300 x 2380 x 2750 |
N.W / G.W | kg | 7300 / 8000 |
Standard accessories
Draw bar Tool box
Oil gun 7:24 Middle sleeve
Inner hexagon Spanner ISO50 milling Chuck
Double-end wrench ISO50 milling arbor
Horizontal milling arbor Operation manual
Horizontal milling arbor supporting Operation manual
Foundation bolts
Oil gun 7:24 Middle sleeve
Inner hexagon Spanner ISO50 milling Chuck
Double-end wrench ISO50 milling arbor
Horizontal milling arbor Operation manual
Horizontal milling arbor supporting Operation manual
Foundation bolts
