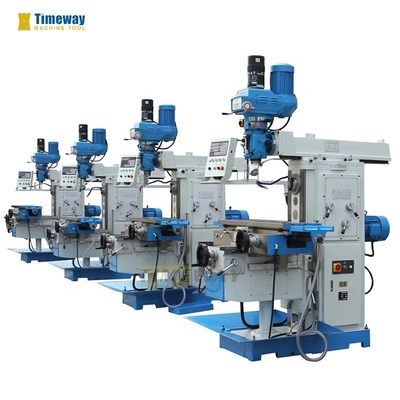

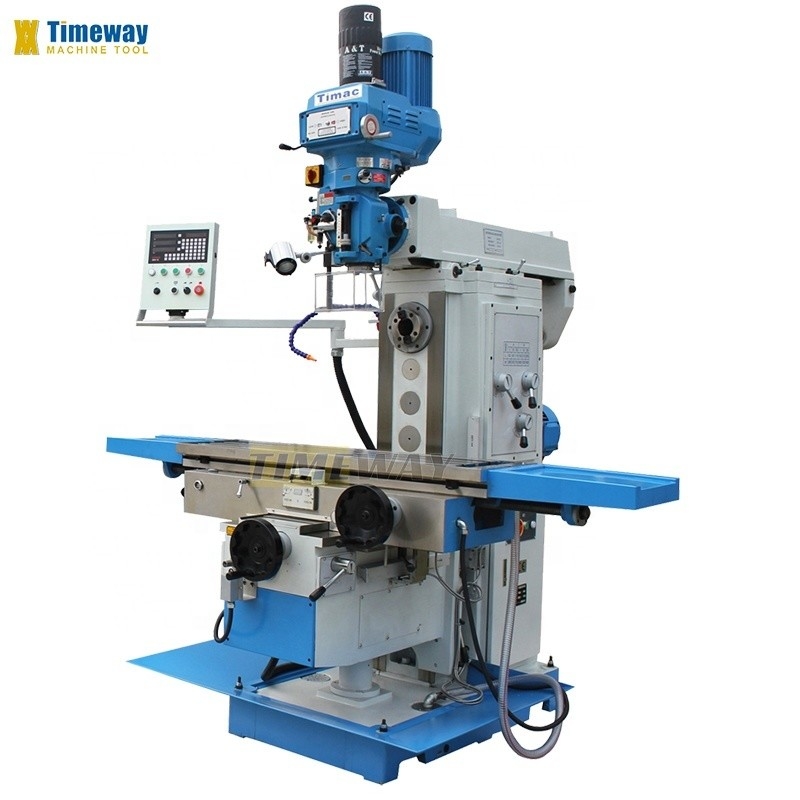

XL6332C Medium Duty Vertical Turret Universal Milling Machine with Flexible Operation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO9001:2008 |
| Model Number: | XL6332C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,800.00/sets 1-1 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1100 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 320 | Table Travel (Z) (mm): | 450 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 65 - 4660 R.p.m |
| Type: | VERTICAL | Voltage: | As Client's Request |
| Dimension(L*W*H): | 2250X2100X2500 Mm | Weight (KG): | 2750 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2019 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Table Load(kg): | 800 Kg | Spindle Bore(mm): | Other |
| Cutting Torque: | 10 N.m | Rapid Feed Speed(mm/min): | 0 - 1200 Mm/min |
| Feed Speed(mm/min): | 20 - 500 Mm/min | Tool Post Stations: | 4, 12, 8, 6 |
| CNC Or Not: | Normal | After-sales Service Provided: | Online Support |
| Milling Machine: | Machine Tools | Model: | XL6332C |
| Weight: | 2750kg | X-axis Travel: | 1100 Mm |
| Y-axis Travel: | 320 Mm | Z-axis Travel: | 450 Mm |
| Table Size: | 320X1325 Mm | ||
Product Description
Products Description
* Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
* Quiet, precision-made headstock gears with hardened and ground gears.
* The milling table features a large setup area and can be rotated in linear direction.
* The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but
can also be moved manually.
* Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an
auxiliary gearbox ensures powerful torque.
* Vertical and horizontal spindle each have their separate drive.
* Standard outer arbor support accommodates long milling arbors in the horizontal spindle.
* Powerful servo-motor allows infinite variation of feeds on all 3 axes.
* Minimum downtime due to rapid positioning of work table and rapid feeds in all axes.
* Control panel swivels for comfortable operation.
Specification | unit | XL6332C |
Table size | mm | 320x1325 |
Longitudinal travel (X) | mm | 1100 |
Cross travel (Y) | mm | 320 |
Vertical travel (Z) | mm | 450 |
T-slot No. and size and distance | mm | 3/18/70 |
Distance from vertical spindle to table | mm | 180-630 |
Vertical spindle taper | - | ISO40 |
Vertical spindle speed (steps) | rpm | 65-4660 (16) |
Vertical spindle motor power | kw | 3.7 |
Distance from horizontal spindle center to table | mm | 0-450 |
Distance from horizontal spindle center to ram | mm | 220 |
Horizontal spindle taper | - | ISO50 |
Horizontal spindle speed (steps) | rpm | 60-1800 (12) |
Horizontal spindle motor power | kw | 5.5 |
X-axis feed speed | mm/min | 30-750 |
Y-axis feed speed | mm/min | 20-500 |
Z-axis feed speed | mm/min | 15-375 |
X/Y/Z-axis rapid feed speed | mm/min | 1200/800/600 |
Torque of X/Y/Z axis AC servo motor | N.m | 10 |
Ram travel | mm | 550 |
Mill head swivel angle | ° | ±45° |
Machine dimensions (LxWxH) | mm | 2245x2100x2500 |
Net weight | kg | 2750 |
Horizontal mill arbor Coolant system Chip tray Work lamp Lubrication system Tools and Tool box Operator manual | 2/3-axis digital readout Variable stepless mill head Slotting head 58pcs clamping kit Machine vise Spindle protection guard Table protection guard Dividing head Rotary table Reducing sleeve |
