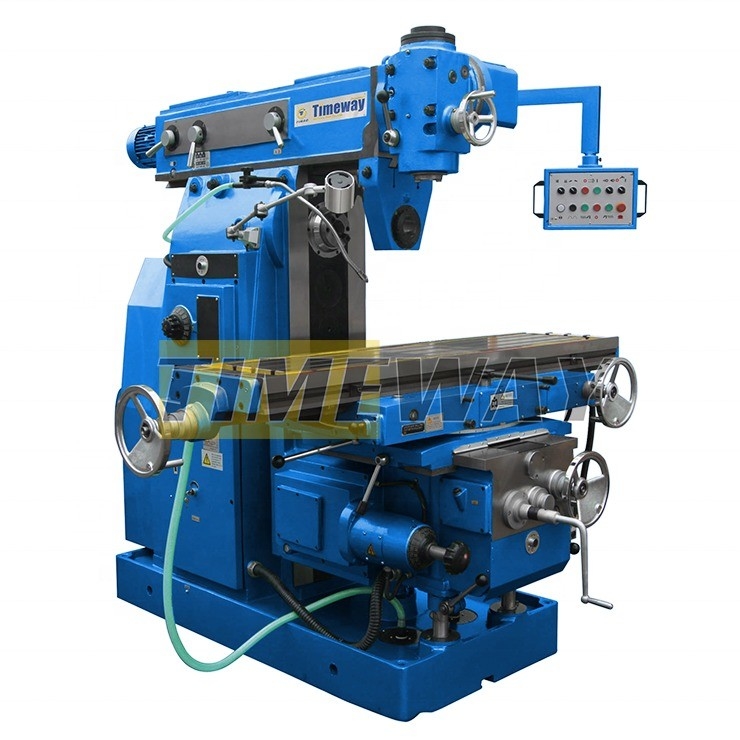

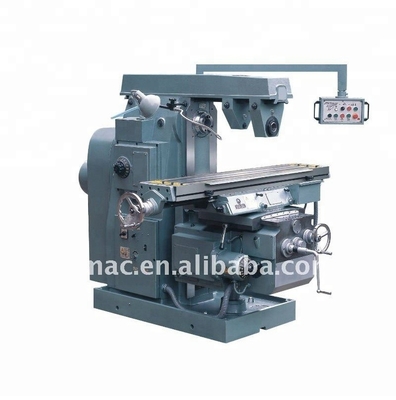

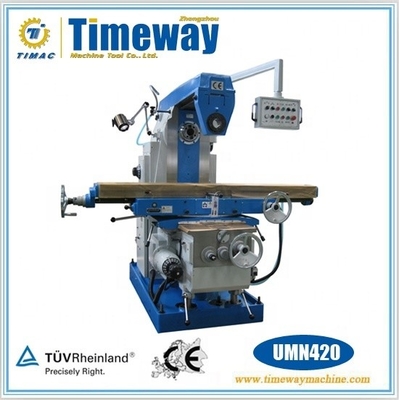

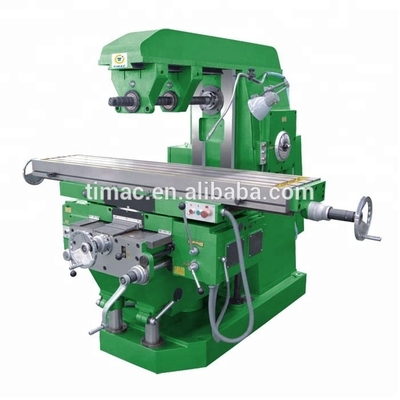

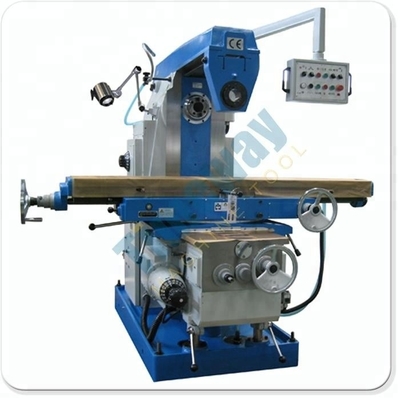

accuracy Horizontal Knee Type Universal Milling Machine for Customer Requirements
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | UMN420 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wood case (fumigated) |
| Supply Ability: | 60 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1280 Mm | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 360 Mm | Table Travel (Z) (mm): | 470 Mm |
| Spindle Taper: | BT50 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | Horizontal | Spindle Motor Power(kW): | 11 |
| Voltage: | As Client's Request | Dimension(L*W*H): | 2460*2270*2280mm |
| Weight (KG): | 4640 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After Warranty Service: | Online Support |
| Local Service Location: | Russia | CNC Or Not: | Normal |
| After-sales Service Provided: | Online Support | Milling Machine: | Machine Tools |
| Weight: | 4640kg | Power: | 11kw |
| Max.rotary Angle Of Worktable: | ±45° | Spindle Taper: | 7:24,No.50 |
| Horizontal Spindle-arm: | 155mm | Number Of Axes: | 2 |
| Condition: | New | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Romania, South Africa, Indonesia, Russia | Core Components: | Bearing, Motor, Pump, Other |
| Table Travel (mm): | 1280X360X470 | Port: | Shanghai Port |
Product Description
Products Description
Features:
* It is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces
* With enough rigidity, it can bear heavy processing
* Hardened and ground slide ways
* Automatic feeds on X, Y, Z axes
* Worktable can swivel ±45°
* It is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces
* With enough rigidity, it can bear heavy processing
* Hardened and ground slide ways
* Automatic feeds on X, Y, Z axes
* Worktable can swivel ±45°
Model | UMN420 | UMN320 |
Table size (W×L) | 420×1800mm | 320×1600mm |
Table travel (X/Y/Z) - Manual | 1280×360×470mm | 1020×300×410mm |
- Auto. | 1250×350×450mm | 1000×280×400mm |
Table t-slots(No./Width/Pitch) | 3-18-90mm | 3-18-80mm |
Max.rotary angle of worktable | ±45° | ±45° |
Max.loading of worktable | 800kg | 550kg |
Spindle taper | 7:24, No.50 | 7:24, No.50 |
Spindle speed range | 30-1500r.p.m (18steps) | 30-1500r.p.m (18steps) |
Arbor diameter | φ32,φ50mm | Φ22,φ27,φ32mm |
Table longitudinal & cross feed (X/Y) | 22-1100mm/min | 15-750mm/min |
Table vertical feed (Z) | 8.3-410mm/min | 5.7-280mm/min |
Table rapid speed (X/Y/Z) | 2400/2400/900mm/min | 2250/2250/844mm/min |
Spindle nose - worktable | 30-500mm | 30-440mm |
Horizontal spindle - arm | 155mm | 155mm |
Main motor power | 11kw | 7.5kw |
Feed motor | 3kw | 1.5kw |
Overall dimensions (L×W×H) | 2522×2262×2047mm | 2327×2067×1720mm |
Packing size (L×W×H) | 2460×2270×2280mm | 2220×2180×2280mm |
N.W/G.W | 4640/5000kg | 3300/3500kg |
Price (FOB China) |
Standard Configuration | Options & Extra Cost |
End mill cutter | Vertical milling head |
Cutter shaft | 3-axis SINO D.R.O |
58pcs clamping kitArbor tension screw | 58pcs clamping kit |
Oil gun | Machine vise |
Working light | Dividing head |
General tools | Rotary table |
Operator manual. | |
Cooling system |
