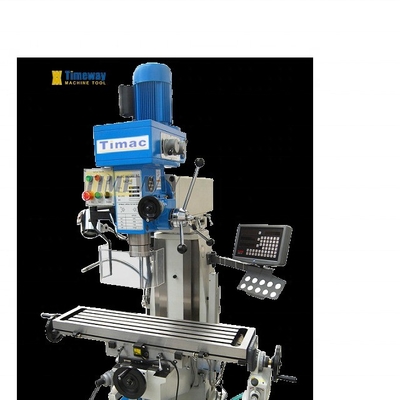

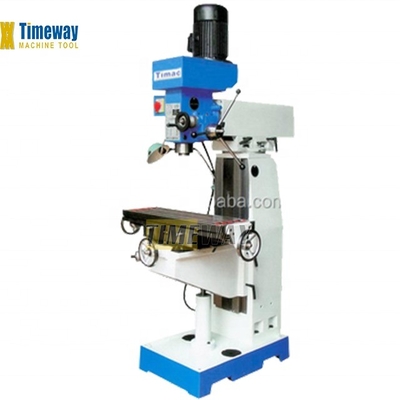

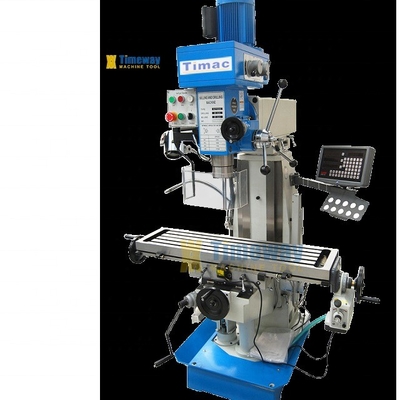

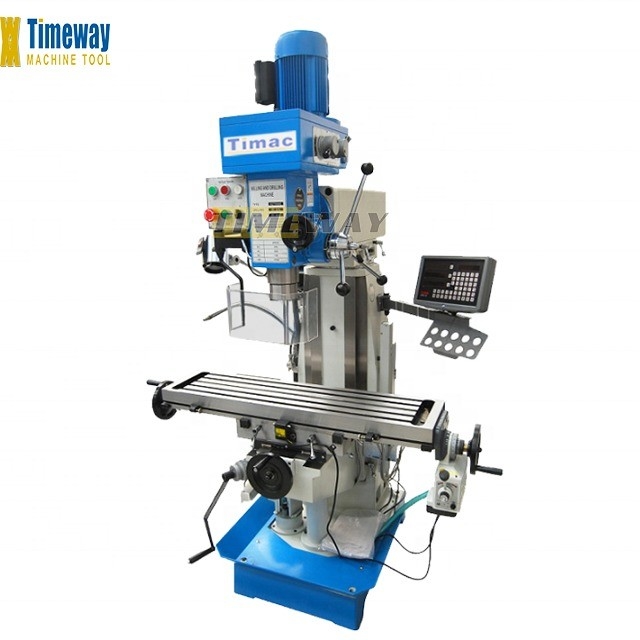

Universal Milling Drilling Machine ISO40 Spindle Taper and 600/260/300mm Table Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | MD400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $6,800.00/sets 1-2 sets |
| Packaging Details: | Wood case(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 Mm | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 260 Mm | Table Travel (Z) (mm): | 3000 Mm |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 115 - 1750 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 1.5 |
| Voltage: | Customer Requirement | Dimension(L*W*H): | 1660x1340x2130mm |
| Weight (KG): | 1350 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Customer Requirement | Table Size: | 280x1120mm |
| Table Travel: | 600/260/300mm | Vertical Spindle Speed: | 115-1750rpm(8) |
| Horizontal Spindle Speed: | 40-1300rpm(12) | Spindle Taper: | MT4(V); ISO40(H) |
| Spindle Travel: | 120mm | Head Swivel: | ±45° |
| Number Of Axes: | 2 | Condition: | New |
| Showroom Location: | Kenya, Colombia, Romania, South Africa, Ukraine, Australia, Italy, Brazil, Indonesia, Russia | Applicable Industries: | Manufacturing Plant, Other |
| Core Components: | Bearing, Motor, Gear, Engine, Other | Table Travel (mm): | 600/260/300mm |
| Port: | China Port | ||
Product Description
Products Description
Feature:
1. Milling drilling machine;
2. Both belt and gear type drive available;
3. MD300, MD500: with spindle auto.feeding function.
3. MD300, MD500: with spindle auto.feeding function.
Model | Unit | MD100 | MD200 | MD300 | MD400 | MD500 | |
MD100H | MD200H | MD300H | |||||
Spindle taper | ISO30,R8(V), ISO30(H) | ISO30,R8,MT4(V), ISO30(H) | ISO40(V), ISO30(H) | MT4(V), ISO40(H) | ISO40(V), ISO40(H) | ||
Distance from spindle to table | mm | 70-420 | 70-420 | 90-420 | 90-410 | 110-410 | |
Spindle speed | r.p.m | (8)230-1825(V), (8)60-1350(H) | (8)115-1750(V), (8)60-1350(H) | (8)90-2000, (8)60-1350(H) | (8)115-1750(V), (12)40-1300(H) | (8)115-1750(V), (12)40-1300(H) | |
Spindle travel | mm | 120 | 120 | 120 | 120 | 120 | |
Max. drilling capacity of auto feeding | mm | 50 | 50 | 50 | 50 | 50 | |
Head swivel | ±45° | ±45° | ±45° | ±45° | ±45° | ||
Table size | mm | 800x240 | 800x240 | 800x240 | 1120(1200)x280 | 1120(1200)x280 | |
Table travel (Longitudinal/Cross/Verical) | mm | 400/230/350 | 400/230/350 | 400/230/350 | 600/260/300 | 600/260/300 | |
T slot(No./width/distance) | mm | 3/14/60 | 3/14/60 | 3/14/60 | 3/14/70 | 3/14/70 | |
Main motor | kw | 0.85/1.5(V), 1.5(H) | 0.85/1.5(V), 1.5(H) | 1.5(V), 2.2(H) | 0.85/1.5(V), 2.2(H) | 2.2(V), 2.2(H) | |
Overall dimension | mm | 1290x1220x2100 | 1290x1220x2100 | 1290x1220x2100 | 1660x1340x2130 | 1660x1340x2130 | |
N.W./G.W. | kg | 800/900, 850/1000 | 800/900, 850/1000 | 820/900, 870/1000 | 1250/1350 | 1300/1380 | |
Rapid speeds of x-/z-axis | mm/min | 4000/6000 | |||||
max.travel of x-axis | mm | 300 | |||||
Tool-post working position | V4 / V6 / H6 | ||||||
Indexing time | s | 2.4(V4) 2.2(V6) 1.6(H6) | |||||
Indexing repeatility | mm | 0.008 | |||||
Size of tool shank | mm | 25 | |||||
Diameter of Tailstock quill | mm | 85 | |||||
Travel of tailstock quill | mm | 150 | |||||
Taper Hole of tailstock quill | Morse | Morse No. 5 | |||||
Workpiece accuracy | IT6IT7 | ||||||
Surface roughness | µm | Ra1.6 | |||||
Main power | kW | 7.5 | |||||
Lathe weight | kg | 2600/2900/3200/3600/4000 | |||||
Overall dimensions(Length×width×height) | mm | 2380/2610/2860/3430/3910×1340×1750 | |||||
• Coolant system • Oil collecting plate• Work lamp • Elevating rotary handle • Drill chuck • Mill collets • Draw bar • Machine vise • Wrench • Spanner • Middle sleeve • Operation manual(English edition) | • 3 axes DRO • 58pcs clamping kits • Rotary table • Dividing head • Variable frequency motor • Universal milling head |
