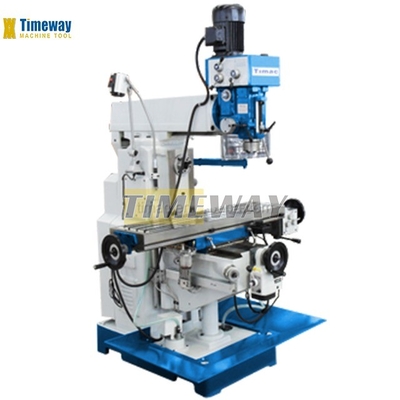

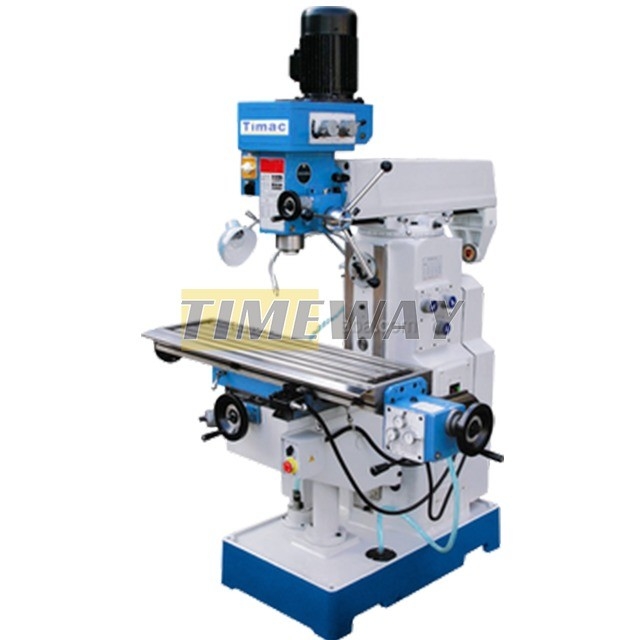

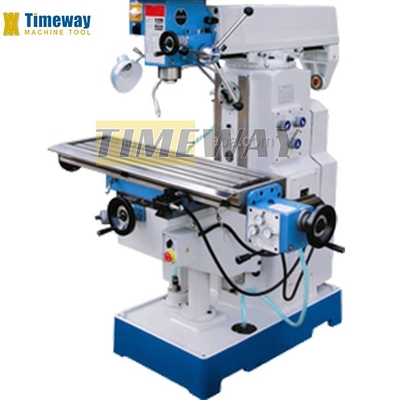

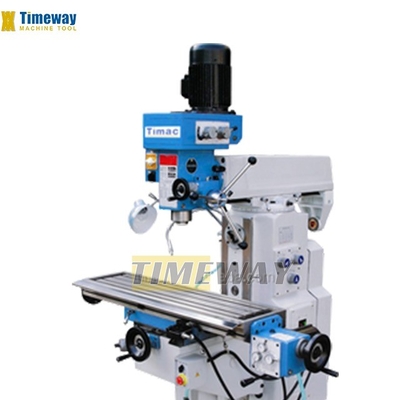

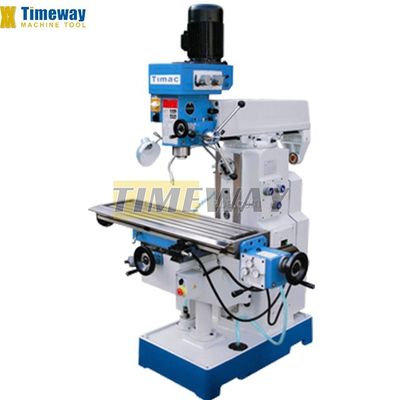

3-Axis Universal Milling Drilling Machine with Design and ISO40 V/H Spindle Taper
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | MD500 MD400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $10,000.00/sets 1-2 sets |
| Packaging Details: | Wood case(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 Mm | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 260 Mm | Table Travel (Z) (mm): | 300 Mm |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 115 - 1750 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 2.2 |
| Voltage: | Customer Requirement | Dimension(L*W*H): | 1660x1340x2130mm |
| Weight (KG): | 1300 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Online Support |
| Color: | Customer Requirement | Table Size: | 1120(1200)x280mm |
| Table Travel: | 600/260/300mm | T-slots: | 3/14/70mm |
| Vertical Spindle Speed: | 115-1750rpm(8steps) | Horizontal Spindle Speed: | 40-1300rpm(12steps) |
| Spindle Taper: | ISO40(V/H) | Spindle Travel: | 120mm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Other | Showroom Location: | Colombia, Kazakhstan, Ukraine, Australia, Egypt, Italy, France, Saudi Arabia, Thailand |
| Core Components: | Bearing, Motor, Pump, Gear, Engine, Other | Table Travel (mm): | 600x260x300 |
| Port: | China Port | ||
Product Description
Products Description
Features:
» Compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast-iron.
» Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
» Vertical and horizontal spindle speeds are changed by gear-box, so the feature of large torque.
» Spindle sleeve can tap, auto.feed with 3 steps, drill depth stop with display of measurement (MD500).
» Entire cutter head swivels ±90°, expand Machining range of machine tools.
» For horizontal machining, the top beam including the head can be rotated by ±180° on the column.
» Spindle with micro-feed function (Micro hand-wheel), to realize small size of feed and more correctly machining.(MD400).
» Coolant system and work lamp and chip collection tray are included in standard equipment.
» Compact, easy to handle universal milling machine with rigid frame made of vibration-dampening cast-iron.
» Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
» Vertical and horizontal spindle speeds are changed by gear-box, so the feature of large torque.
» Spindle sleeve can tap, auto.feed with 3 steps, drill depth stop with display of measurement (MD500).
» Entire cutter head swivels ±90°, expand Machining range of machine tools.
» For horizontal machining, the top beam including the head can be rotated by ±180° on the column.
» Spindle with micro-feed function (Micro hand-wheel), to realize small size of feed and more correctly machining.(MD400).
» Coolant system and work lamp and chip collection tray are included in standard equipment.
Specifications | Unit | MD400 | MD500 |
Table size | mm | 280x1120/280x1200 | 280x1120/280x1200 |
Longitudinal travel (X) | mm | 600 | 600 |
Cross travel (Y) | mm | 260 | 260 |
Vertical travel (Z) | mm | 300 | 300 |
T-slot No. and size and distance | mm | 3/14/70 | 3/14/70 |
Loading capacity | kg | 200 | 200 |
Max. drilling capacity | mm | 50 | 50 |
Max. tapping capacity | mm | M16 | M16 |
Distance from vertical spindle to table | mm | 90-410 | 110-410 |
Distance from vertical spindle to column | mm | 200-700 | 200-700 |
Vertical spindle taper | - | MT4 | ISO40 |
Verical spindle quill travel | mm | 120 | 120 |
Vertical spindle quill automatic feed | mm/r | - | 0.08/0.15/0.25 |
Vertical spindle speed | rpm | 115-1750 (8) | 90-2000 (8) |
Vertical spindle motor power | kw | 0.85/1.5 | 2.2 |
Distance from horizontal spindle center to table | mm | 0-300 | 0-300 |
Horizontal spindle taper | - | ISO40 | ISO40 |
Horizontal spindle speed | rpm | 40-1300 (12) | 40-1300 (12) |
Horizontal spindle motor power | kw | 2.2 | 2.2 |
X/Y-axis feed speed | mm/min | X: 24-720 | X: 36-1100 |
Z-axis rapid feed speed | mm/min | - | - |
Mill head swivel angle | ° | ±45° | ±45° |
Machine dimensions (LxWxH) | mm | 1660x1340x2130 | 1660x1340x2130 |
Net weight/gross weight | kg | 1250/1350 | 1300/1380 |
· Coolant system · Oil collecting plate· Work lamp · Elevating rotary handle · Drill chuck · Mill collets · Draw bar · Machine vise · Wrench · Spanner · Middle sleeve · Operation manual(English edition) | ·3 axes DRO · 58pcs clamping kits · Rotary table · Dividing head · Variable frequency motor · Universal milling head |
