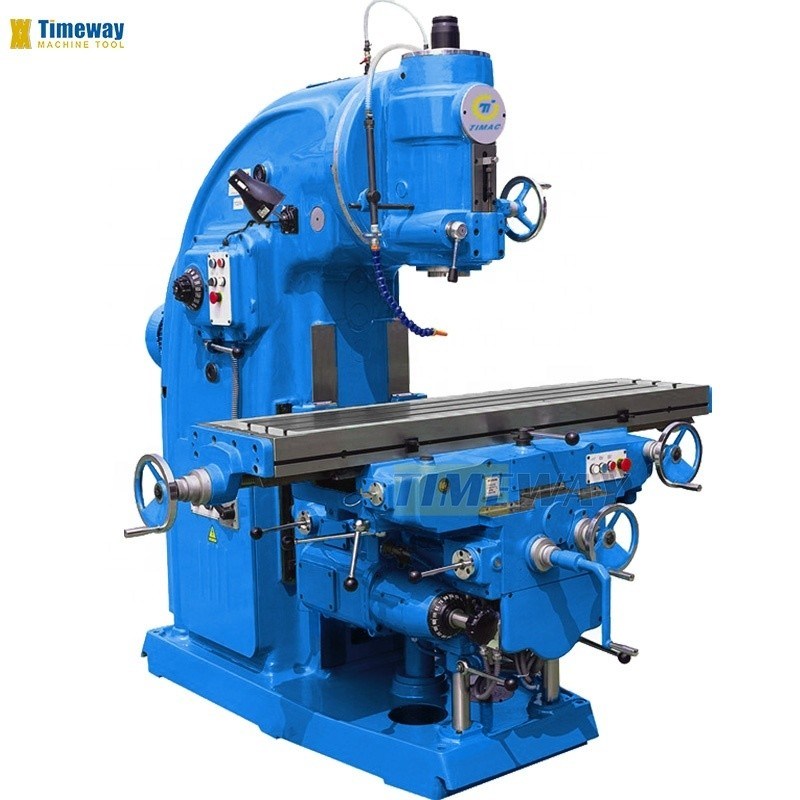

Universal Vertical Knee-type Milling Machine with 900/880 mm Table Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | VM400W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,999.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 900/880 Mm | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 315/300 Mm | Table Travel (Z) (mm): | 385/365 Mm |
| Spindle Taper: | ISO50, ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 11 KW |
| Voltage: | As Requested | Dimension(L*W*H): | 656x2159x2198 Mm |
| Weight (KG): | 4250 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Vertical Knee-type Milling Machine |
| Machine Type: | Vertical Milling Machine | Spindle Bore Diameter: | 29 Mm |
| CNC Or Not: | Normal | Model: | VM400W |
| Table Size: | 400x1700 Mm | Spindle Speed Range: | 30-1500 R/min |
| Main Motor Power: | 11kw | Machine Weight: | 4250 Kg |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Kenya, Colombia, Kyrgyzstan, Uzbekistan, Malaysia, Australia, Germany, Philippines, Mexico, Spain | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Motor, Engine, Other | Table Travel (mm): | 29 Mm |
| Port: | China Port | ||
Product Description
Products Description
* Rugged knee-and-column milling machine, massive machine frame with very rigid knee slide.
* X/Y/Z axis with automatic feed and rapid feed.
* Worktable and guideways and transmission gears are hardened and ground.
* Extremely rigid cutter head, swivel ±45 degree.
* Manual quill feed for boring and micro-feed.
*2/3-axis position indicator is available.
* X/Y/Z axis with automatic feed and rapid feed.
* Worktable and guideways and transmission gears are hardened and ground.
* Extremely rigid cutter head, swivel ±45 degree.
* Manual quill feed for boring and micro-feed.
*2/3-axis position indicator is available.
Specification | Unit | VM320W | VM400W |
Table size | mm | 320x1325 | 400x1700 |
T-slot (No./width/pitch) | mm | 3/18/90 | 3/18/90 |
Distance from spindle nose to table | mm | 60-410 | 115-500 |
Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 |
Cross travel(manual/auto) | mm | 255/240 | 315/300 |
Vertical travel(manual/auto) | mm | 350/330 | 385/365 |
Mill head swivel angle | ° | ±45° | ±45° |
Spindle bore diameter | mm | 29 | 29 |
Spindle taper | - | 7:24 ISO50 | 7:24 ISO50 |
Spindle speed range | r/min | 30-1500 | 30-1500 |
Spindle speed step | steps | 18 | 18 |
Table longitudinal feed speed (X) | mm/min | 23.5-1180 | 23.5-1180 |
Table cross feed speed (Y) | mm/min | 15-786 | 15-786 |
Table vertical feed speed (Z) | mm/min | 8-394 | 8-394 |
Feed speed steps (X/Y/Z) | steps | 18 | 18 |
Rapid feed speed(X/Y/Z) | mm/min | 2300/1540/770 | 2300/1540/770 |
Main motor power | kw | 7.5 | 11 |
Feed motor power | kw | 1.5 | 32 |
Overall dimensions (Lx WxH) | mm | 2294x1780x2150 | 656x2159x2198 |
Machine weight | kg | 2860 | 4250 |
* Draw bar * Coolant system* Chip tray * Work lamp * Lubrication system * Tools and Tool box * Operator manual | * 2/3-axis digital readout * 58 pcs clamping kit * Machine vise * Spindle protection guard * Table protection guard * Dividing head * Rotary table * Reducing sleeve |
