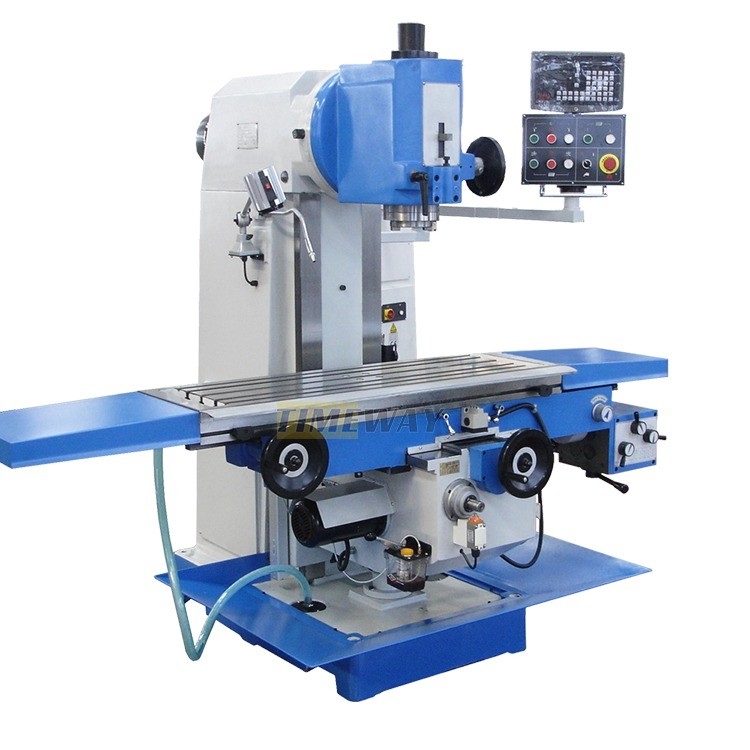

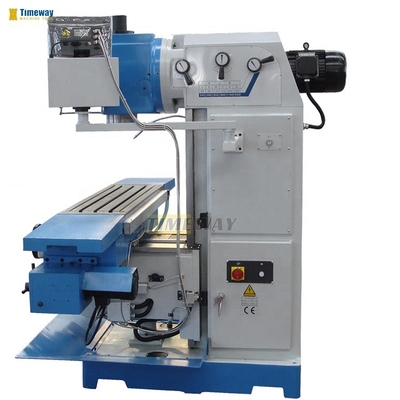

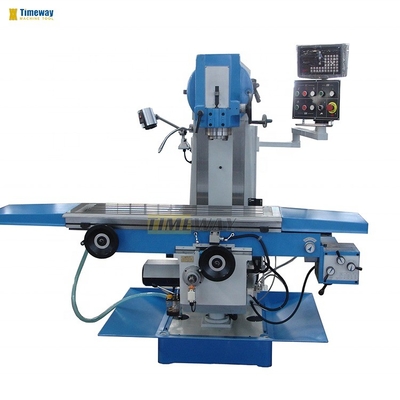

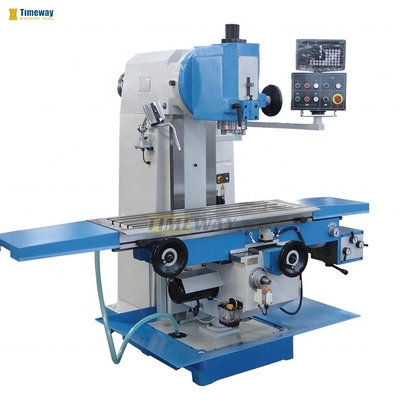

Manufacturing Plant Heavy Knee-Type Universal Milling Machine with CE Certification
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | VM360/VM360A/VM360B/VM360L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 250 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 60 - 1700 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 4 |
| Voltage: | 380V | Dimension(L*W*H): | 1800x1850x1880 |
| Weight (KG): | 2100 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate Drilling Milling Machine | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 360x1220 Mm |
| Longitudinal Travel (X): | 600 | Cross Travel (Y): | 250 |
| Vertical Travel (Z): | 400 | T-slots: | 3/14/95 |
| Distance From Spindle Nose To Table: | 320 | Distance From Spindle Center To Column: | 80-480 |
| X/Y-axis Feed Speed: | 18-555 (8) | X/Y-axis Rapid Feed Speed: | 810 |
| Spindle Taper: | 7:24 ISO50 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox |
| Table Travel (mm): | 360x1220 | Port: | China Port |
Product Description
Products Description
Specifications | Unit | VM360 | VM360A | VM360B | VM360L |
Table size | mm | 360x1220 | 360x1250 | 360x1250 | 360x1500 |
Longitudinal travel (X) | mm | 600 | 600 | 1000 | 1100 |
Cross travel (Y) | mm | 250 | 320 | 320 | 300 |
Vertical travel (Z) | mm | 400 | 450 | 450 | 380 |
T-slots | mm | 3/14/95 | 3/18/80 | 3/18/80 | 3/14/70 |
Distance from spindle nose to table | mm | 80-480 | 80-440 | 60-540 | 60-400 |
Distance from spindle center to column | mm | 320 | 320 | 360 | 320 |
X/Y-axis feed speed | mm/min | 18-555 (8) | 22-555 (8) | 22-555 (8) | 22-555 (8) |
X/Y-axis rapid feed speed | mm/min | 810 | 1080 | 1080 | 1080 |
Z-axis rapid feed speed | mm/min | - | 590 | 590 | 590 |
Spindle taper | - | 7:24 ISO50 | 7:24 ISO50 | 7:24 ISO50 | 7:24 ISO50 |

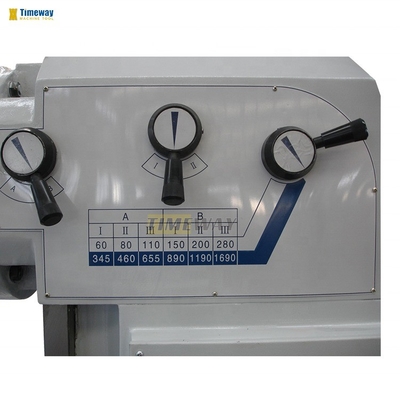

Spindle speed (steps) | rpm | 60-1700 (12) | 60-1700 (12) | 60-1700 (12) | 60-1700 (12) |
Mill head swivel angle | ° | ±35° | ±35° | ±35° | ±35° |
Main motor power | kw | 4 | 4 | 4 | 4 |
Feed motor power | kw | 0.55 | 0.75 | 0.75 | |
Lifting motor power | kw | - | 1.1 | 1.1 | 1.1 |
Coolant pump power | kw | 0.04 | 0.04 | 0.04 | 0.04 |
Net weight/gross weight | kg | 1900/2100 | 2200/2400 | 2230/2400 | 2400/2550 |
Machine dimensions (LxWxH) | mm | 1800x1850x1880 | 1800x1850x1880 | 2220x1790x1980 | 2300x1820x2000 |
STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
Ÿ Draw bar Ÿ Coolant system Ÿ Chip tray Ÿ Work lamp Ÿ Lubrication system Ÿ Tools and Tool box Ÿ Operator manual | Ÿ 2/3-axis digital readout Ÿ 58pcs clamping kit Ÿ Machine vise Ÿ Spindle protection guard Ÿ Table protection guard Ÿ Dividing head Ÿ Rotary table Ÿ Reducing sleeve |
