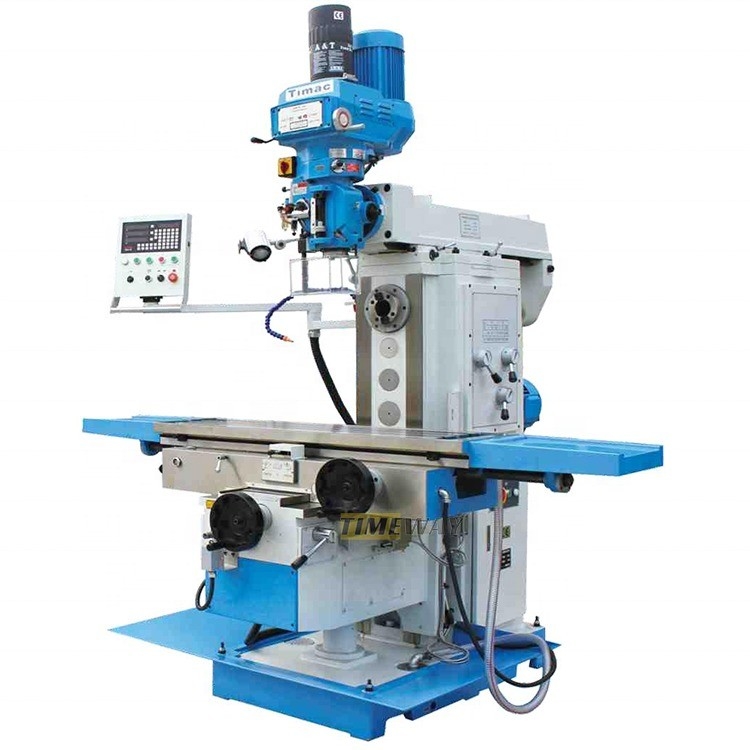

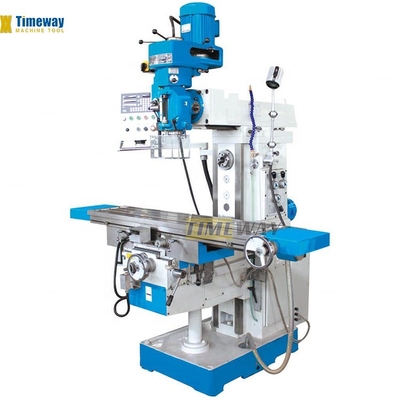

Superior Performance Vertical Turret Milling Machine with 320x1600 mm Table Size
Product Details:
| Place of Origin: | QINGDAO |
| Brand Name: | TIMEWAY |
| Model Number: | XL6332CL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1300 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 320 | Table Travel (Z) (mm): | 450 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 65 - 4660 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 3.7 |
| Voltage: | Customized | Dimension(L*W*H): | 2520x2100x2500 |
| Weight (KG): | 2800 | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 320x1600 Mm |
| Longitudinal Travel (X): | 1300 Mm | Cross Travel (Y): | 320 Mm |
| Vertical Travel (Z): | 450 Mm | T-slot No. And Size And Distance: | 3/18/70 |
| Vertical Spindle Taper: | ISO40 | Horizontal Spindle Taper: | ISO50 |
| X-axis Feed Speed: | 30-750 Mm/min | Y-axis Feed Speed: | 20-500 Mm/min |
| Net Weight: | 2800 Kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | Ukraine, Nigeria, Italy, France | Core Components: | Motor, Engine |
| Table Travel (mm): | 320x1600 | Year: | NEW |
| Port: | China Port | ||
Product Description
Products Description
* Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
* Quiet, precision-made headstock gears with hardened and ground gears.
* The milling table features a large setup area and can be rotated in linear direction.
* The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but can also be moved manually.
* Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an auxiliary gearbox ensures powerful torque.
* Vertical and horizontal spindle each have their separate drive.
* Standard outer arbor support accommodates long milling arbors in the horizontal spindle.
* Powerful servo-motor allows infinite variation of feeds on all 3 axes.
* Minimum downtime due to rapid positioning of work table and rapid feeds in all axes.
* Control panel swivels for comfortable operation.
* Quiet, precision-made headstock gears with hardened and ground gears.
* The milling table features a large setup area and can be rotated in linear direction.
* The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but can also be moved manually.
* Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an auxiliary gearbox ensures powerful torque.
* Vertical and horizontal spindle each have their separate drive.
* Standard outer arbor support accommodates long milling arbors in the horizontal spindle.
* Powerful servo-motor allows infinite variation of feeds on all 3 axes.
* Minimum downtime due to rapid positioning of work table and rapid feeds in all axes.
* Control panel swivels for comfortable operation.
Specifications | Unit | XL6332CL | XL6336CL |
Table size | mm | 320x1600 | 360x1600 |
Longitudinal travel (X) | mm | 1300 | 1300 |
Cross travel (Y) | mm | 320 | 320 |
Vertical travel (Z) | mm | 450 | 450 |
T-slot No. and size and distance | mm | 3/18/70 | 3/18/80 |
Distance from vertical spindle to table | mm | 180-630 | 200-650 |
Vertical spindle taper | - | ISO40 | ISO40 |
Vertical spindle speed (steps) | rpm | 65-4660 (16) | 65-4660 (16) |
Vertical spindle motor power | kw | 3.7 | 3.7/5.5 |
Distance from horizontal spindle center to table | mm | 0-450 | 20-470 |
Distance from horizontal spindle center to ram | mm | 220 | 245 |
Horizontal spindle taper | - | ISO50 | ISO50 |
Horizontal spindle speed (steps) | rpm | 60-1800 (12) | 60-1800 (12) |
Horizontal spindle motor power | kw | 5.5 | 5.5 |
X-axis feed speed | mm/min | 30-750 | 30-750 |
Y-axis feed speed | mm/min | 20-500 | 20-500 |
Z-axis feed speed | mm/min | 15-375 | 15-375 |
X/Y/Z-axis rapid feed speed | mm/min | 1200/800/600 | 1200/800/600 |
Torque of X/Y/Z axis AC servo motor | N.m | 10 | 10 |

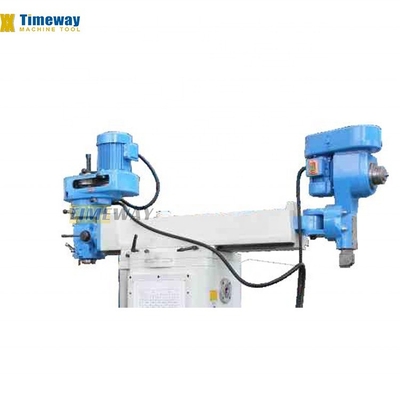

Ram travel | mm | 550 | 550 |
Mill head swivel angle | ° | ±45° | ±45° |
Machine dimensions (LxWxH) | mm | 2520x2100x2500 | 2520x2100x2500 |
Net weight | kg | 2800 | 2850 |
Draw bar Horizontal mill arbor Coolant system Chip tray Work lamp Lubrication system Tools and Tool box Operator manual | 2/3-axis digital readout Variable stepless mill head Slotting head 58pcs clamping kit Machine vise Spindle protection guard Table protection guard Dividing head Rotary table Reducing sleeve |

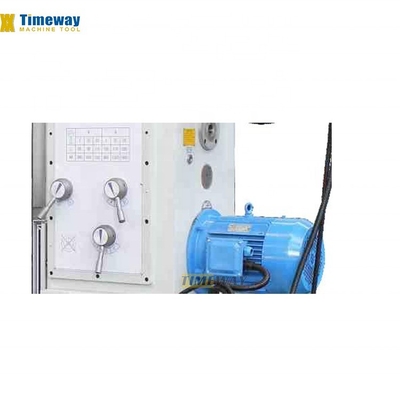

User-friendly control elements allow
easy and quick speed change.
easy and quick speed change.

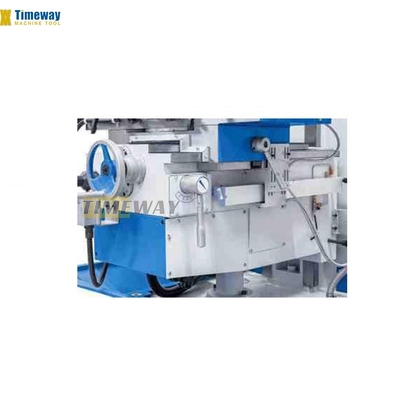

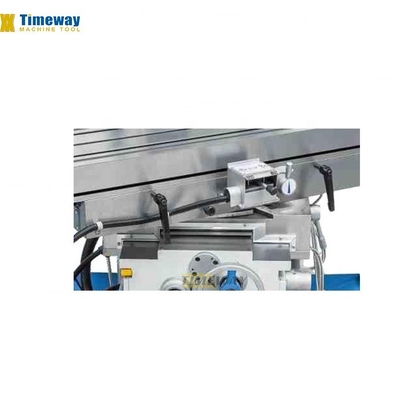

Rectangular rails guarantee stability at high
milling load, mill table swivels ±45°.
milling load, mill table swivels ±45°.
