Swivel Head Knee Type Universal Milling Machine for Metal Working ±360° Worktable Angle
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | US320H/US320HL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 700 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 255 | Table Travel (Z) (mm): | 320 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 3 |
| Voltage: | 380V | Dimension(L*W*H): | 2294X1770X1780 |
| Weight (KG): | 2900 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate Drilling Milling Machine | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 320x1325 |
| Longitudinal Travel (X): | 700 | Cross Travel (Y): | 255 |
| Vertical Travel (Z): | 320 | T-slots: | 3/18/70 |
| Worktable Swivel Angle: | ±360° | Distance From Spindle Center To Table: | 190-510 |
| Horizontal Spindle Taper: | 7:24 ISO50 | Spindle Speed (steps): | 35-1500(18) |
| Machine Weight: | 2900/3000 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox |
| Table Travel (mm): | 320x1325 | Port: | China Port |
Product Description
Products Description
Features:

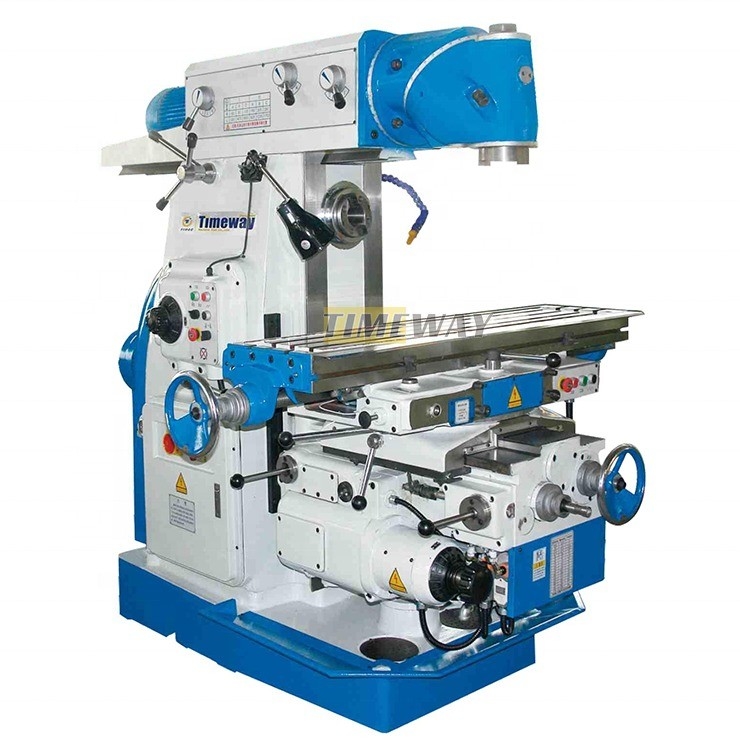

---The mill machine is a solidly constructed universal milling machine featuring a moveable arm and big clamping area.
---The big dimensioned guideways in all axis guarantees absolute precision and stability.
---Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
---Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
---The milling table features a large setup area, long X-axis travel, and it can be horizontally swiveled up to 45°.
---Quiet and precision-made headstock gears with hardened and ground gears.

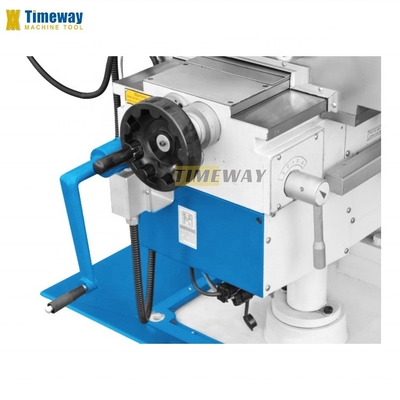

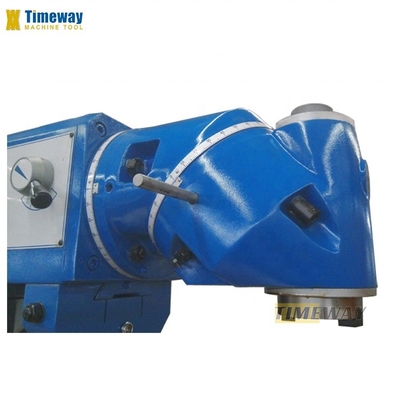

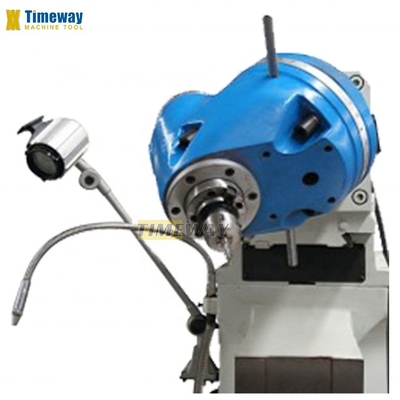

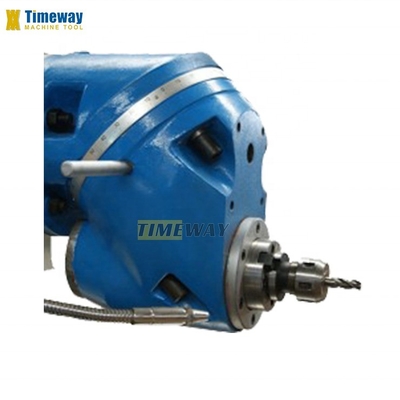

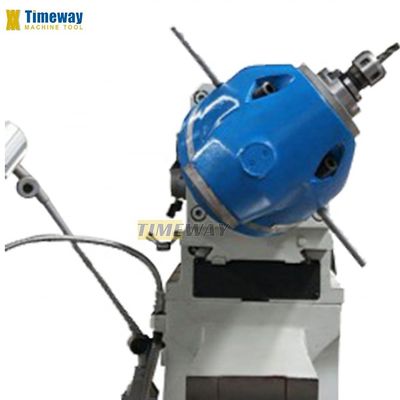

---The universal cutter head swivels on 2 planes, allowing virtually any spatial angle setting.
----Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power.
---Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle.
---Minimum downtime due to rapid positioning of work table and rapid feeds in all axes.
---Swiveling control panel with integrated position indicator for maximum operator comfort.
---Coolant system and chip tray are included.
---The big dimensioned guideways in all axis guarantees absolute precision and stability.
---Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
---Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
---The milling table features a large setup area, long X-axis travel, and it can be horizontally swiveled up to 45°.
---Quiet and precision-made headstock gears with hardened and ground gears.
---The universal cutter head swivels on 2 planes, allowing virtually any spatial angle setting.
----Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power.
---Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle.
---Minimum downtime due to rapid positioning of work table and rapid feeds in all axes.
---Swiveling control panel with integrated position indicator for maximum operator comfort.
---Coolant system and chip tray are included.
SPECIFICATIONS | UNIT | US320H | US320HL |
Table size | mm | 320x1325 | 320x1600 |
Longitudinal travel (X) | mm | 700 | 900 |
Cross travel (Y) | mm | 255 | 255 |
Vertical travel (Z) | mm | 320 | 320 |
T-slot (No /width/pitch) | mm | 3/18/70 | 3/18/70 |
Distance from vertical spindle nose to table | mm | 190-510 | 190-510 |
Distance from vertical spindle axis to column | mm | 215-470 | 215-470 |
Distance from horizontal spindle axis to table | mm | 30-350 | 30-350 |
Distance from horizontal spindle axis to ram | mm | 155 | 155 |
X-axis feed speed | mm/min | 23.5-1180 （18) | 23.5-1180(18 |
Y-axis feed speed | mm/min | 23.5-1180（18) | 23.5-1180（18） |
Z-axis feed speed | mm/min | 8-394 (18) | 8-394（18) |
X/Y/Z-axis rapid feed speed | mm/min | 2300/2300/770 | 2300/2300/770 |
Vertical spindle hole taper | 7:24 ISO50 | 7:24 ISO50 | |
Vertical spindle speed range | rpm | 60-1750(12) | 60-1750(12) |
Horizontal spindle hole taper | 7:24 ISO50 | 7:24 ISO50 | |
Horizontal spindle speed range | rpm | 30-1500(18) | 30-1500 (18) |
Mill head swivel angle | 360° | 360* | |
Worktable swivel angle | ±45° | ±45° | |
Main motor power (vertical) | kw | 4 | 4 |
Main motor power (horizontal) | kw | 7.5 | 7.5 |
X/Y/Z-axis feed speed | kw | 1.5 | 1.5 |
Coolant pump motor | kw | 0.04 | 0.04 |
Machine weight | kg | 2900 | 3000 |
Machine dimensions (LxWxH) | mm | 2294x1770x1780 | 2294x2050x1780 |
STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
Ÿ Draw bar Ÿ Horizontal mill arbor Ÿ Coolant system Ÿ Chip tray Ÿ Work lamp Ÿ Lubrication system Ÿ Tools and Tool box Ÿ Operator manual | Ÿ 2/3-axis digital readout Ÿ 58pcs clamping kit Ÿ Machine vise Ÿ Spindle protection guard Ÿ Table protection guard Ÿ Dividing head Ÿ Rotary table Ÿ Reducing sleeve |
