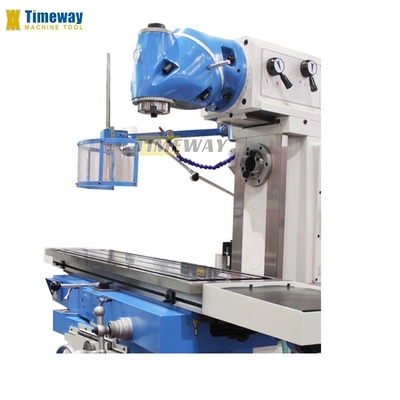

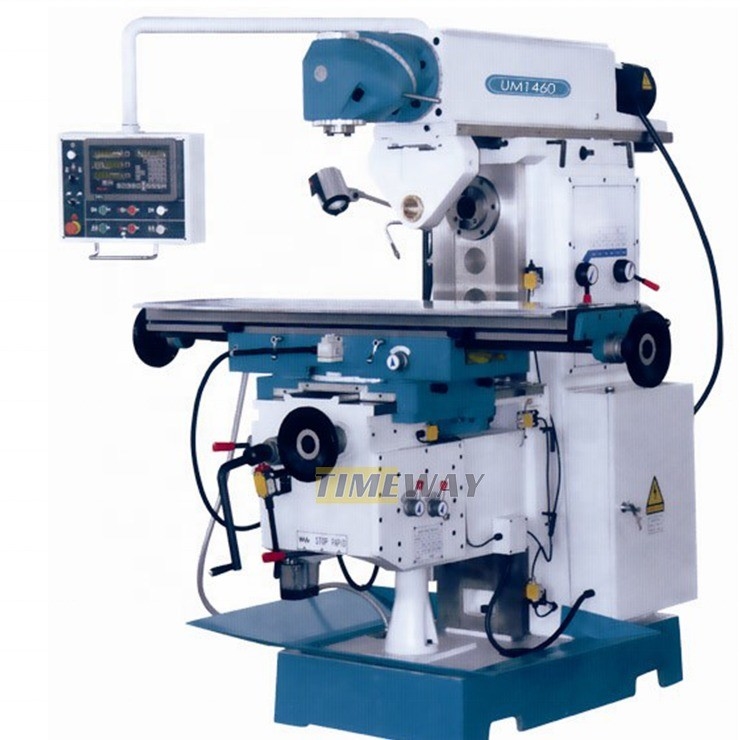

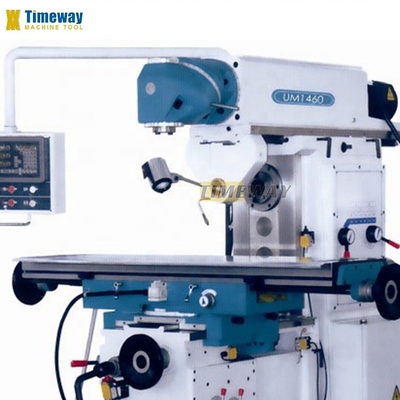

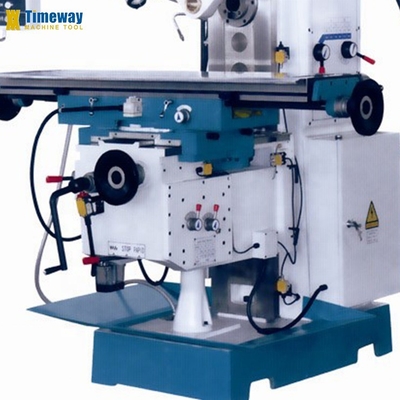

Universal Knee Type Milling Machine 2220x1660x2020 Model and Turret Swivel Head Combo
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | UM1460-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 900 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 390 | Table Travel (Z) (mm): | 500 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 60 - 1800 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 4 |
| Voltage: | 380V | Dimension(L*W*H): | 2220x1660x2020 |
| Weight (KG): | 2750 | Warranty: | 2350 |
| Key Selling Points: | Easy To Operate Drilling Milling Machine | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 360x1500 |
| Longitudinal Travel (X): | 900 | Cross Travel (Y): | 390 |
| Vertical Travel (Z): | 500 | T-slots: | 3/18/70 |
| Worktable Swivel Angle: | ±360° | Distance From Spindle Center To Table: | 220-720 |
| Horizontal Spindle Taper: | ISO40 | Spindle Speed (steps): | 60-1800(12) |
| Machine Weight: | 2350 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox |
| Table Travel (mm): | 360x1500 | Port: | China Port |
Product Description
Products Description
Features:
---The mill machine is a solidly constructed universal milling machine featuring a moveable arm and big clamping area.
---The big dimensioned guideways in all axis guarantees absolute precision and stability.
---Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
---Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
---The milling table features a large setup area, long X-axis travel, and it can be horizontally swiveled up to 45°.
---Quiet and precision-made headstock gears with hardened and ground gears.
---The universal cutter head swivels on 2 planes, allowing virtually any spatial angle setting.
---Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power.
---Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle.
---Minimum downtime due to rapid positioning of work table and rapid feeds in all axes.
---Swiveling control panel with integrated position indicator for maximum operator comfort.
---Coolant system and chip tray are included.
---The big dimensioned guideways in all axis guarantees absolute precision and stability.
---Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing.
---Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance.
---The milling table features a large setup area, long X-axis travel, and it can be horizontally swiveled up to 45°.
---Quiet and precision-made headstock gears with hardened and ground gears.
---The universal cutter head swivels on 2 planes, allowing virtually any spatial angle setting.
---Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power.
---Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle.
---Minimum downtime due to rapid positioning of work table and rapid feeds in all axes.
---Swiveling control panel with integrated position indicator for maximum operator comfort.
---Coolant system and chip tray are included.
SPECIFICATIONS | UNIT | UM1460-1 |
Table size | mm | 360x1500 |
Longitudinal travel (X) | mm | 900 |
Cross travel (Y) | mm | 390 |
Vertical travel (Z) | mm | 500 |
Ram travel | mm | 460 |
T-slots | mm | 3/18/70 |
Loading capacity | kg | 500 |
Distance from vertical spindle center to column | mm | 220-720 |
Distance from vertical spindle nose to table | mm | 170-670 |
Distance from horizontal spindle center to table | mm | 30-510 |
Distance from horizontal soindle center to ram | mm | 150 |
X-axis feed speed | mm/min | 30-600(8) |
Y-axis feed speed | mm/min | 22-410(8) |
Z-axis feed speed | mm/min | 15-220(8) |
X-axis rapid feed speed | mm/min | 1800 |
Y-axis rapid feed speed | mm/min | 1200 |
Z-axis rapid feed speed | mm/min | 600 |
Vertical spindle taper | ISO40 | |
Vertical spindle speed (steps) | rpm | 60-1800（12) |
Horizontal spindle taper | ISO50 | |
Horizontal spindle speed (steps) | rpm | 40-1300(12) |
Table swivel angld | 士45° | |
Mill head swivel angle | 360° | |
Main motor power | kw | 4(V);3(H) |
X/Y-axis feed motor power | kw | 1.1 |
Coolant motor power | kw | 0.09 |
Net weight | kg | 2350 |
Machine dimensions (LxWxH) | mm | 2220x1660x2020 |
STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
Ÿ Draw bar Ÿ Coolant system Ÿ Chip tray Ÿ Work lamp Ÿ Lubrication system Ÿ Tools and Tool box Ÿ Operator manual | Ÿ 2/3-axis digital readout Ÿ 58pcs clamping kit Ÿ Machine vise Ÿ Spindle protection guard Ÿ Table protection guard Ÿ Dividing head Ÿ Rotary table Ÿ Reducing sleeve |
