Custom-made Bridge Type Double Column Gantry Milling Machine for High Precision Milling
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | GM800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $55,000.00/sets 1-4 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000/3000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1100 | Table Travel (Z) (mm): | 800 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | Gantry | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 380V | Dimension(L*W*H): | 4000/6000x3000x2300 |
| Weight (KG): | 4000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X-axis Travel: | 2000/3000 |
| Y-axis Travel: | 1100 | Z-axis Travel: | 800 |
| Name: | Milling Machine | Machine Type: | Gantry Milling Machine |
| Keyword: | Milling Machine Manual | Product Name: | Double Column Milling Machine |
| Color: | Custom-made | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox |
| Table Travel (mm): | 2000/3000x800 | Port: | China Port |
Product Description
Products Description

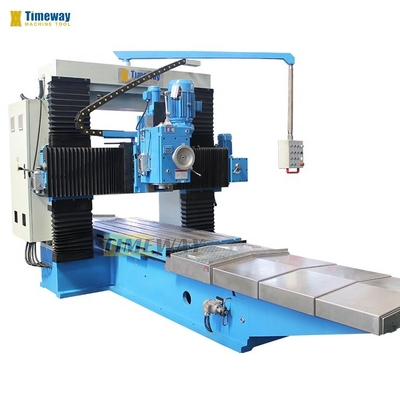

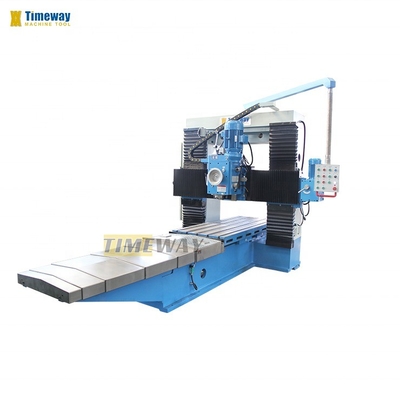

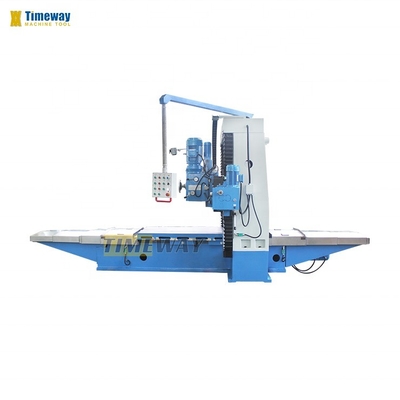

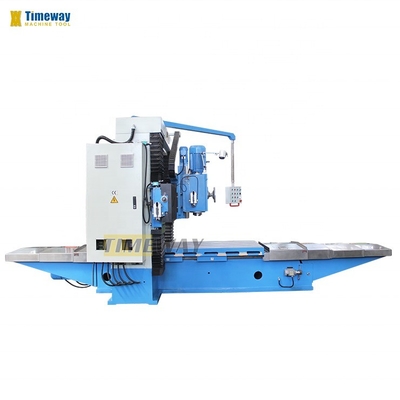

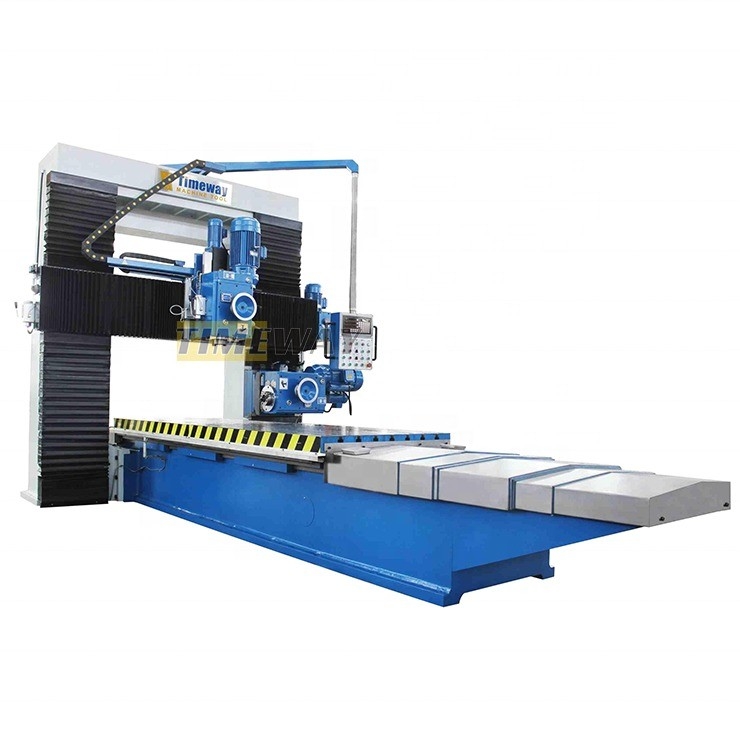

Gantry Type Milling Machine
Features:
---Bed, columns and travel tracks form a solid cast-iron frame structure for high rigidity under hard machining conditions and high table loads.
---The gantry construction is fully integrated into the machine frame for maximum rigidity.
---The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
---Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
---Infinitely variable feed on X.

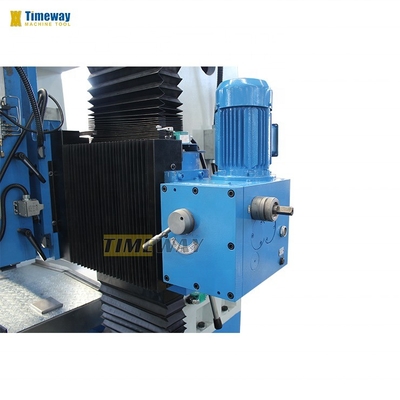

---Main spindle gears with 6 steps for vertical and horizontal operation.
---Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.
---All guideways are protected by telescoping covers or bellows.
---The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
---Automatic central lubrication is included.
---The gantry construction is fully integrated into the machine frame for maximum rigidity.
---The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
---Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
---Infinitely variable feed on X.
---Main spindle gears with 6 steps for vertical and horizontal operation.
---Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.
---All guideways are protected by telescoping covers or bellows.
---The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
---Automatic central lubrication is included.
Technical Parameter：
Specification | Unit | GM800 |
Table size (length) | mm | 2000/3000 |
Max. height of workpiece | mm | 800 |
Distance between columns | mm | 1140 |
Table feed speed | mm/min | infinite variable |
Table rapid feed speed | mm/min | 1400 |
Spindle taper | - | ISO50 |
Positive Comments From Customers
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
