3200 KG Weight Double Column Bridge Type Milling Machine with 2000/3000/4000 Z-Axis Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | GM1000/GM1250/GM1400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000/3000/4000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 2000/3000/4000 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 82 - 505 R.p.m |
| Type: | Gantry | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 380V | Dimension(L*W*H): | 4000/6000x3000x2300 |
| Weight (KG): | 3200 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate Drilling Milling Machine | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | X-axis Travel: | 2000/3000/4000 |
| Y-axis Travel: | 1000 | Z-axis Travel: | 2000/3000/4000 |
| Name: | Gantry Milling Machine | Machine Type: | Gantry Milling Machine |
| Product Name: | Double Column Milling Machine | Keyword: | Metal Milling Machine |
| Key Selling Points: | Competitive Price | Color: | Custom-made |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox | Table Travel (mm): | 4550/7000/9000x3200x2550 |
| Port: | China Port | ||
Product Description
Products Description

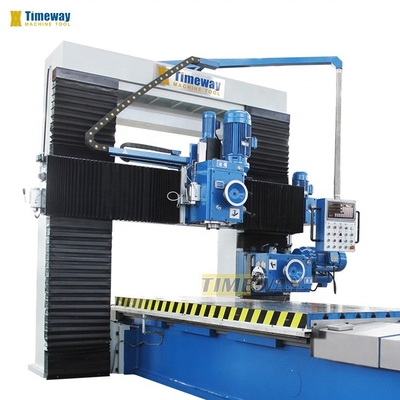

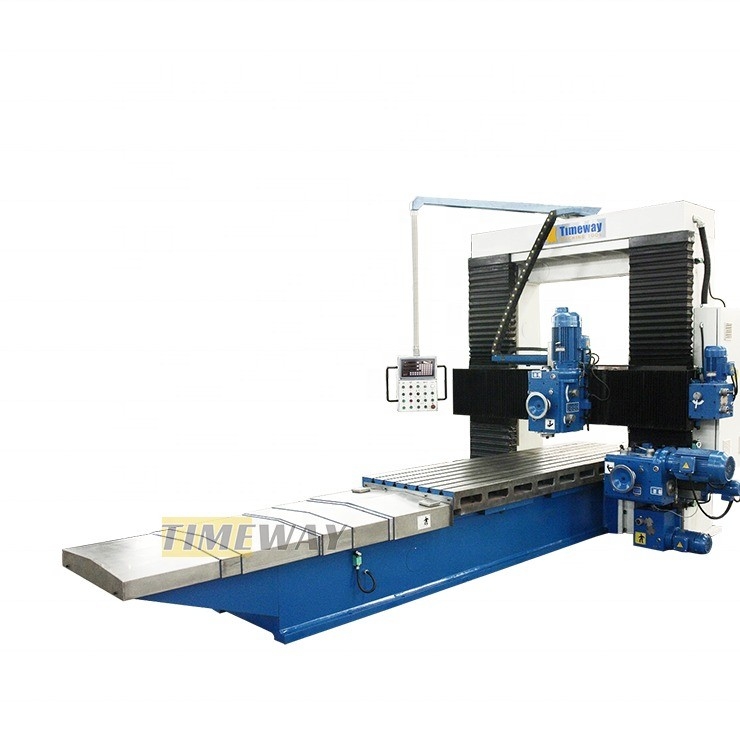

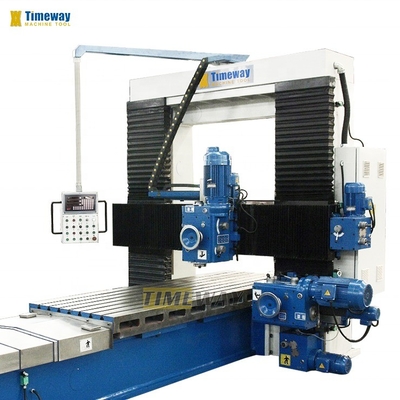

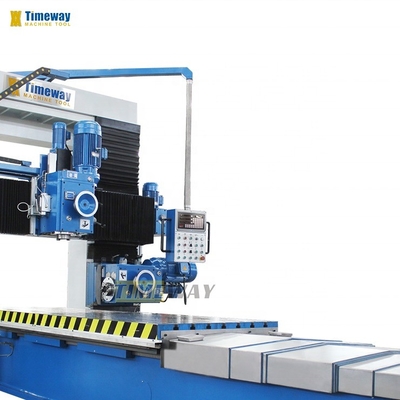

Gantry Type Milling Machine
Features:
---Bed, columns and travel tracks form a solid cast-iron frame structure for high rigidity under hard machining conditions and high table loads.
---The gantry construction is fully integrated into the machine frame for maximum rigidity.
---The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
---Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
---Infinitely variable feed on X.

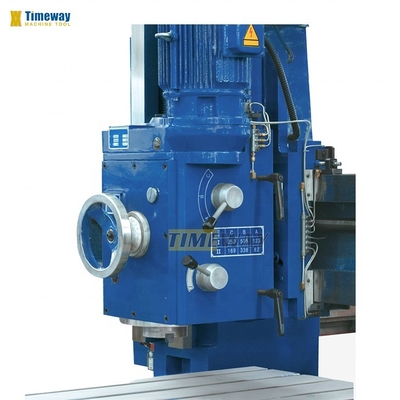

---Main spindle gears with 6 steps for vertical and horizontal operation.
---Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.
---All guideways are protected by telescoping covers or bellows.
---The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
---Automatic central lubrication is included.
---The gantry construction is fully integrated into the machine frame for maximum rigidity.
---The traverse height is adjustable, ensuring high rigidity even with flat workpieces, since the throat size can be minimized.
---Rigid guides with ground surfaces support the table across the entire travel distance to ensure constant high geometric accuracy.
---Infinitely variable feed on X.
---Main spindle gears with 6 steps for vertical and horizontal operation.
---Including weight balancing system for easy movement and precise positioning of the horizontal spindle head.
---All guideways are protected by telescoping covers or bellows.
---The control panel is mounted on a long arm, giving the user maximum positioning flexibility.
---Automatic central lubrication is included.
Technical Parameter：
Specification | Unit | GM1000 | GM1250 | GM1400 |
Max. width of workpiece | mm | 1300 | 1400 | 1800 |
Max. height of workpiece | mm | 1000 | 1000/1200 | 1000/1200 |
Table feed speed | mm/min | 20-360 | 25-450 | 25-450 |
Table rapid feed speed | mm/min | 1050 | 1300 | 1300 |
Spindle taper | - | ISO50 | ISO50 | ISO50 |
Mill head swivel angle | ° | ±35° | ±35° | ±35° |
