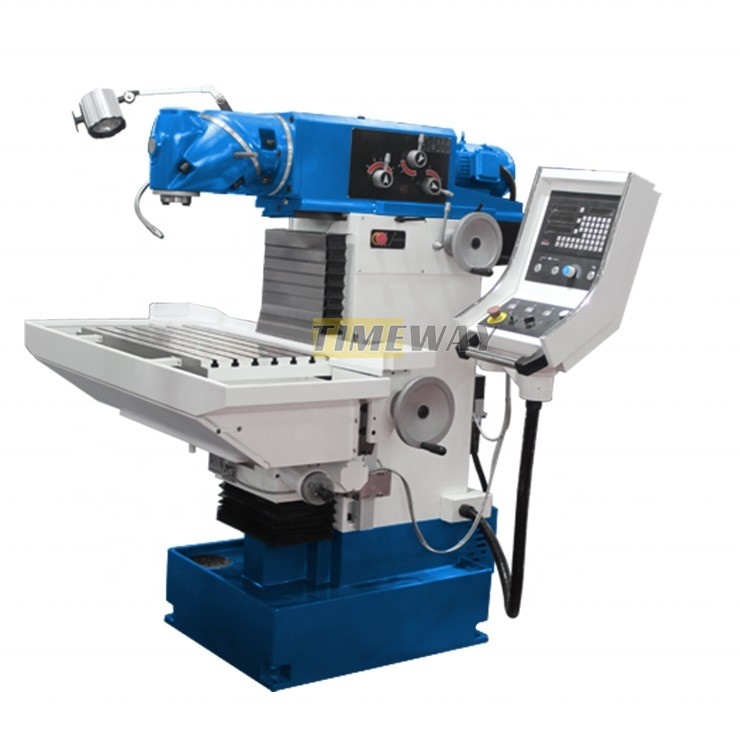

Versatile Vertical and Horizontal Tool Turret Milling Machine with High Spindle Speed
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | UTM260K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 350 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 200 | Table Travel (Z) (mm): | 350 |
| Spindle Taper: | MT4 | Range Of Spindle Speed(r.p.m): | 30 - 2050 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 3 |
| Voltage: | 380V | Dimension(L*W*H): | 1450x1445x1650 |
| Weight (KG): | 1200 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate Drilling Milling Machine | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Horizontal Worktable Size: | 280x700 |
| Vertical Worktable Size: | 260x750 | Longitudinal Travel (X): | 350 |
| Ram Cross Travel (Y): | 200 | Vertical Travel (Z): | 350 |
| Vertical Mill Spindle Quill Travel: | 80 | Vertical Spindle Swivel Angle: | ±45° |
| Vertical Spindle Taper: | MT4 | Vertical Spindle Speed: | 150-1660 (8) |
| Horizontal Spindle Taper: | MT4 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox |
| Table Travel (mm): | 280x700 | Port: | China Port |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description

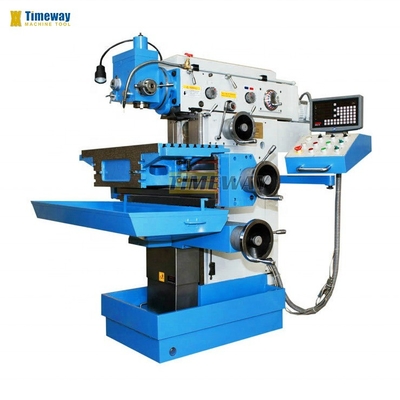

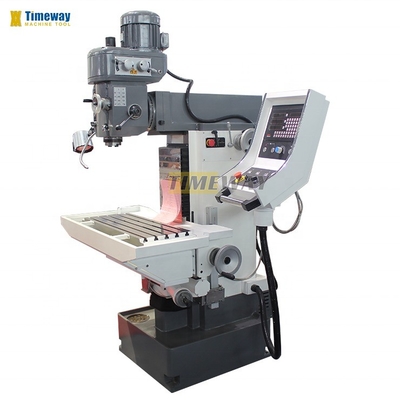

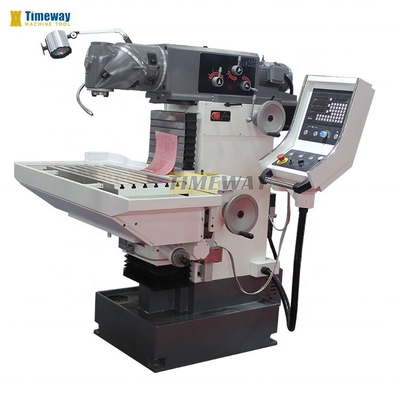

Tool Milling Machine
Features:
---Hand wheel guarantees simple and precise feed settings.
---Complete with manual, automatic and rapid feed in all three axis.
---Central lubrication in guideways comes standard.
---Clear design of speed and feed controls.
---Vertical clamping area with 5 T-slots allows clamping of work table, universal tilting table and oversize workpieces.
---Optimal adjustments of spindle speed and feed allow for economic machining of various materials.
---Solid grey cast-iron machine base guarantees precision and minimizes vibrations.
---Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc.
---Hardened and polished guideways guarantee top accuracy.
---Tiltable vertical milling head with spindle adjustment and three automatic drill feeds.
---Complete with manual, automatic and rapid feed in all three axis.
---Central lubrication in guideways comes standard.
---Clear design of speed and feed controls.
---Vertical clamping area with 5 T-slots allows clamping of work table, universal tilting table and oversize workpieces.
---Optimal adjustments of spindle speed and feed allow for economic machining of various materials.
---Solid grey cast-iron machine base guarantees precision and minimizes vibrations.
---Ultimate machine for tool and mould construction, training, industry, model making and prototyping etc.
---Hardened and polished guideways guarantee top accuracy.
---Tiltable vertical milling head with spindle adjustment and three automatic drill feeds.
Specifications | Unit | UTM400K |
Horizontal worktable size | mm | 400x800 |
Vertical worktable size | mm | 250x950 |
Longitudinal travel (X) | mm | 500 |
Ram cross travel (Y) | mm | 350 |
Vertical travel (Z) | mm | 400 |
Loading capacity | kg | 300 |
Main motor power | kw | 3 |
Machine dimensions (LxWxH) | mm | 1820×1640×1710 |
Packing size (LxWxH) | mm | 2050x1760×2080 |
STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
Ÿ Draw bar Ÿ Coolant system Ÿ Chip tray Ÿ Work lamp Ÿ Lubrication system Ÿ Tools and Tool box Ÿ Operator manual | Ÿ 2/3-axis digital readout Ÿ 58pcs clamping kit Ÿ Machine vise Ÿ Spindle protection guard Ÿ Table protection guard Ÿ Dividing head Ÿ Rotary table Ÿ Reducing sleeve |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
