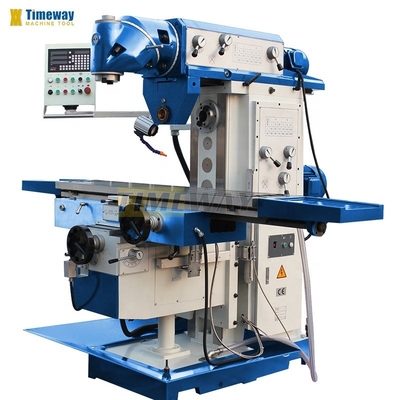

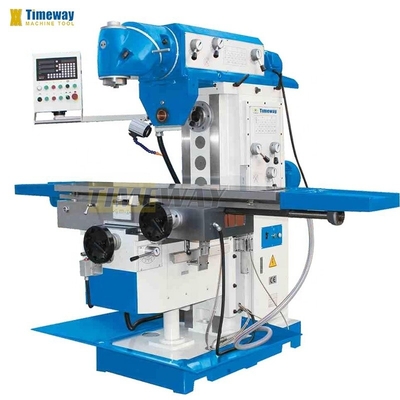

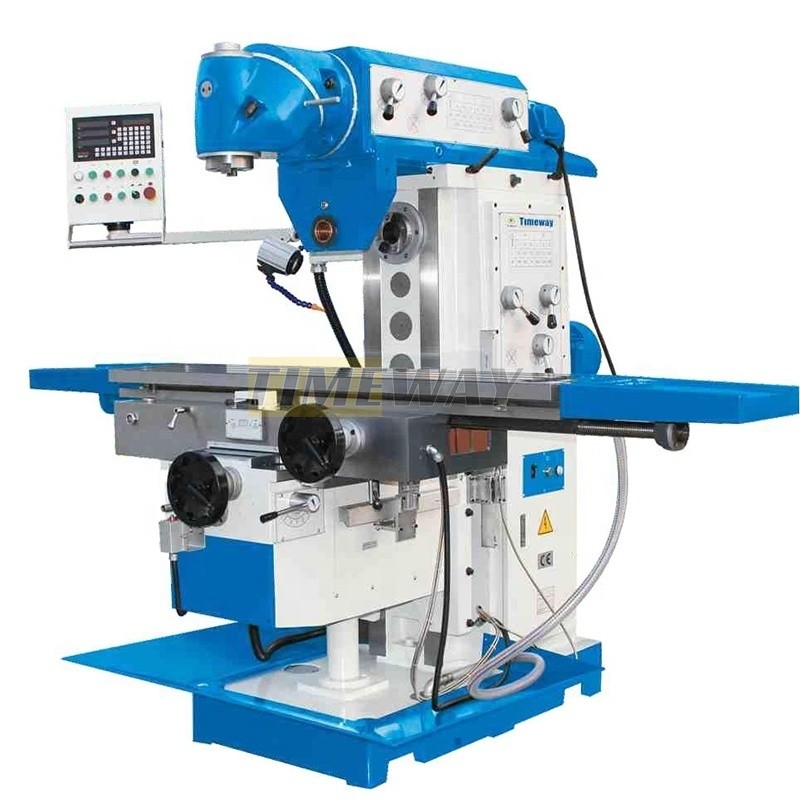

Universal Swivel Head Knee-type Milling Machine with 1100x 320x450 mm Table Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | Servo S36H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1100 Mm | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 320 Mm | Table Travel (Z) (mm): | 450 Mm |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 60 - 1750 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 4 Kw |
| Voltage: | 220/380V | Dimension(L*W*H): | 2245x2100x2000 Mm |
| Weight (KG): | 2750 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Swivel Head Knee-type Milling Machine |
| Keyword: | Milling Machine | Function: | Metal Cutting |
| Model: | Servo S36H | Table Size: | 360x1325 Mm |
| CNC Or Not: | Normal | Ram Travel: | 550 Mm |
| Machine Weight: | 2750 Mm | Machine Dimensions (LxWxH): | 2245x2100x2000 Mm |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Kenya, Argentina, Romania, Ukraine, Nigeria, Australia, Philippines, Brazil, Mexico, Russia, Spain | Table Travel (mm): | 1100x 320x450 Mm |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Gear, Other |
| Port: | China Port | ||
Product Description
Products Description
* Variable speed adjustment by frequency inverter with optimal torque.

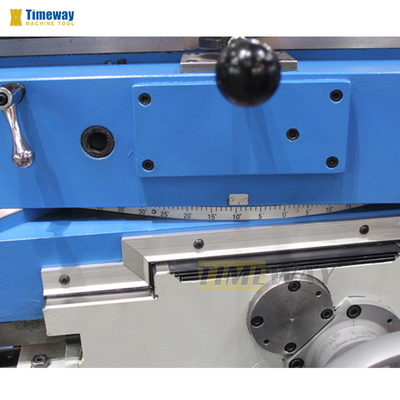

* Hardened and polished guideways guarantees top accuracy.
* Clear design of speed and feed controls.
* Finely graduated feeds in all axis, driven by servomotor.
* Complete with rapid feed in x-, y- and z-axis to reduce downtime.
* Central lubrication in x- and y-axis comes standard
* Hardened and polished guideways guarantees top accuracy.
* Clear design of speed and feed controls.
* Finely graduated feeds in all axis, driven by servomotor.
* Complete with rapid feed in x-, y- and z-axis to reduce downtime.
* Central lubrication in x- and y-axis comes standard
Specification | Unit | Servo S36H | Servo S36HL |
Table size | mm | 360x1325 | 360x1600 |
Longitudinal travel (X) | mm | 1100 | 1300 |
Cross travel (Y) | mm | 320 | 320 |
Vertical travel (Z) | mm | 450 | 450 |
Ram travel | mm | 550 | 550 |
T-slot (No./width/pitch) | mm | 3/18/80 | 3/18/80 |
Distance from vertical spindle nose and table | mm | 196-646 | 196-646 |
Distance from horizontal spindle axis and table | mm | 20-470 | 20-470 |
Distance from horizontal spindle axis and ram | mm | 200 | 200 |
X-axis feed speed | mm/min | 30-750 | 30-750 |
Y-axis feed speed | mm/min | 20-500 | 20-500 |
Z-axis feed speed | mm/min | 13-375 | 13-375 |
X/Y/Z-axis rapid feed speed | mm/min | 1200/800/600 | 1200/800/600 |
Vertical spindle hole taper | – | 7: 24 ISO50 | 7: 24 ISO50 |
Vertical spindle speed range | rpm | 60-1750 (12) | 60-1750 (12) |
Horizontal spindle hole taper | – | 7: 24 ISO50 | 7: 24 ISO50 |
Horizontal spindle speed range | rpm | 60-1800 (12) | 60-1800 (12) |

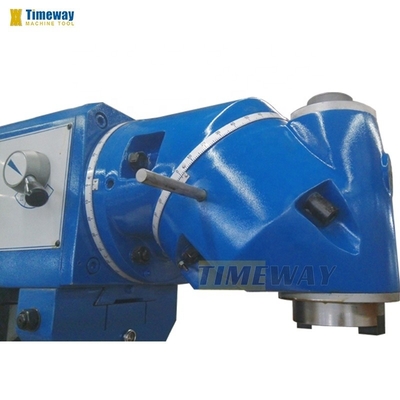

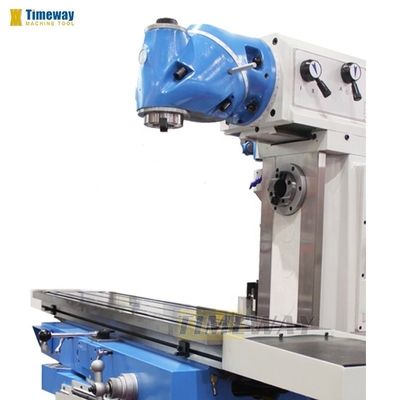

Mill head swivel angle | ° | 360° | 360° |
Main motor power (vertical) | kw | 4 | 4 |
Main motor power (horizontal) | kw | 5.5 | 5.5 |
Coolant pump motor | kw | 0.04 | 0.04 |
Torque of X/Y/Z axis servo motor | N.m | 10 | 10 |
Machine weight | kg | 2750 | 2800 |
Machine dimensions (LxWxH) | mm | 2245x2100x2000 | 2520x2100x2000 |
· Draw bar · Coolant system· Chip tray · Work lamp · Lubrication system · Tools and Tool box · Operator manual | · 2/3-axis digital readout · 58pcs clamping kit · Machine vise · Spindle protection guard · Table protection guard · Dividing head · Rotary table · Reducing sleeve |
