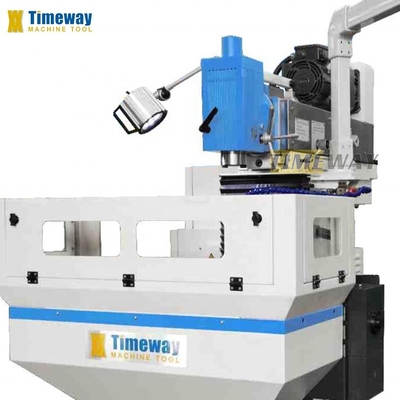

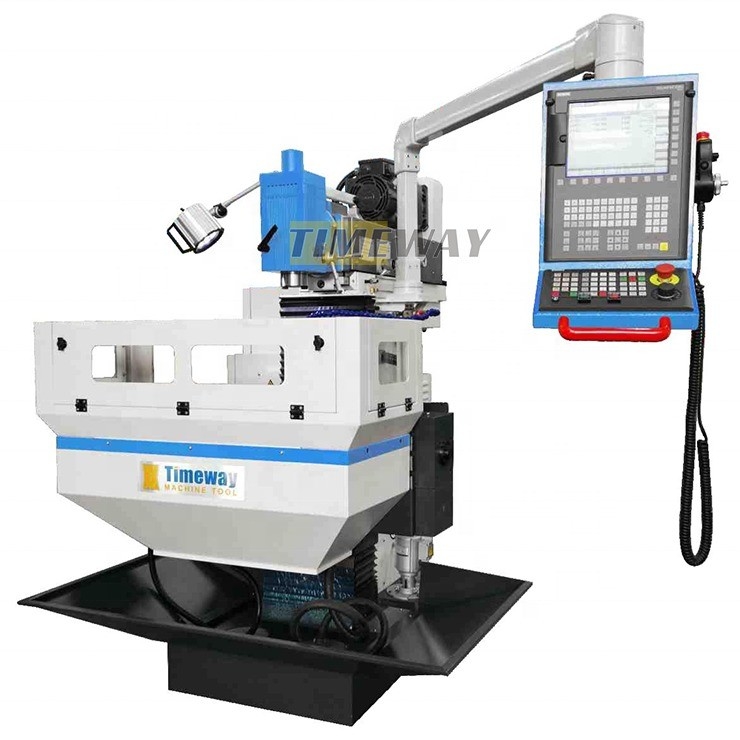

Easy to Operate Milling Machine with SIEMENS 828D and Vertical Spindle Speed 10-1000
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | UTMK320 UTMK400 UTMK450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,000.00/sets 1-4 sets |

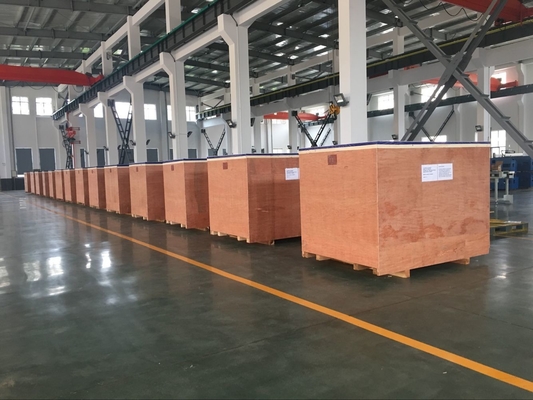

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 405 | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 305 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | NT40 | Range Of Spindle Speed(r.p.m): | 10 - 1000 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 3.7 |
| Voltage: | 380V | Dimension(L*W*H): | 1500x1700x1800 |
| Weight (KG): | 1450 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate Drilling Milling Machine | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Horizontal Worktable Size: | 750x320 |
| Vertical Worktable Size: | 890x225 | Longitudinal Travel (X): | 405 |
| Ram Cross Travel (Y): | 305 | Vertical Travel (Z): | 400 |
| Vertical Mill Spindle Quill Travel: | 80 | Vertical Spindle Swivel Angle: | ±45° |
| Vertical Spindle Taper: | MT4 | Vertical Spindle Speed: | 10-1000 |
| Horizontal Spindle Taper: | NT40 | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox |
| Table Travel (mm): | 750x320 | Port: | China Port |
Product Description
Products Description
Features:
---The Machine column made of premium cast-iron, ensures maximum dynamic rigidity and constant precision.
---Precision pre-loaded ball screws on all axes.

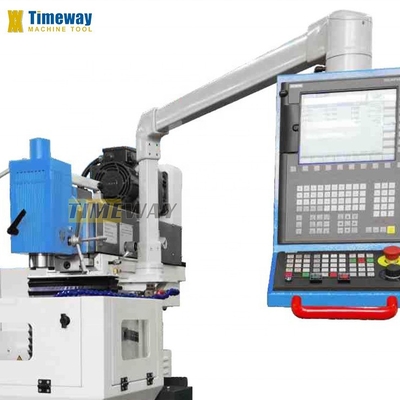

---Ergonomically arranged controls and a swivelling control panel for maximum operator comfort.
---Standard equipped with SIEMENS 808D CNC system for stable control.
---Both machines have rigid outer arbors for horizontal milling.
---Despite the compact design, this machine features a large work table and large travels for versatile use.
---Automatic feed on all axes, infinitely variable and with fast rapid feed.
---The vertical cutter head swivels and the quill can be moved manually.
---The infinitely variable main spindle drive with counter gear offers a wide speed range with high torque.
---Extensive accessory package included.
---Central lubrication system is standard equipment.
---Precision pre-loaded ball screws on all axes.
---Ergonomically arranged controls and a swivelling control panel for maximum operator comfort.
---Standard equipped with SIEMENS 808D CNC system for stable control.
---Both machines have rigid outer arbors for horizontal milling.
---Despite the compact design, this machine features a large work table and large travels for versatile use.
---Automatic feed on all axes, infinitely variable and with fast rapid feed.
---The vertical cutter head swivels and the quill can be moved manually.
---The infinitely variable main spindle drive with counter gear offers a wide speed range with high torque.
---Extensive accessory package included.
---Central lubrication system is standard equipment.
SPECIFICATIONS | UNIT | UTMK320 | UTMK400 | UTMK450 |
Horizontal table size | mm | 750x320 | 800×400 | 850x450 |
T-slots of horizontal table | mm | 5/14/63 | 6/14/63 | 7/14/63 |
Vertical table size | mm | 890x225 | 1020x225 | 1190x250 |
T-slots of vertical table | mm | 3/14/63 | 3/14/63 | 3/14/63 |
Load capacity | kg | 160 | 200 | 300 |
Longitudinal travel (X) | mm | 405 | 500 | 600 |
Cross travel (Y) | mm | 305 | 400 | 450 |
Vertical travel (Z) | mm | 400 | 400 | 450 |
Spindle speed range | rpm | 40-2000(2 | 40-2000(2) | 40-2000(2） |
Spindle taper | NT40 | NT40 | NT40 | |
X/Y/Z-axix feed speed | mm/min | 10-1000 | 10-1000 | 10-1000 |
X/Y/Z-axis rapid feed speed | mm/min | 1200 | 1200 | 1200 |
Spindle quill stroke | mm | 60 | 60 | 60 |
Main motor power | kw | 3.7 | 3.7 | 5.5 |
Feed motor torque (X/Y/Z) | N.m | 7,717.7/10 | 7.7/7.7/10 | 10/10/15 |
Machine dimensions (LxWxH) | mm | 1500x1700x1800 | 1500x1700x1800 | 1600x1800x2000 |
Machine weight | kg | 1450 | 1550 | 1750 |
STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
Ÿ SIEMENS 808D CNC system Ÿ Draw bar Ÿ Coolant system Ÿ Chip tray Ÿ Work lamp Ÿ MPG Ÿ Lubrication system Ÿ Tools and Tool box Ÿ Operator manual | Ÿ SIEMENS 828D CNC system Ÿ FANUC 0i-MF CNC system Ÿ 2/3-axis digital readout Ÿ 58pcs clamping kit Ÿ Machine vise Ÿ Spindle protection guard Ÿ Table protection guard Ÿ Dividing head Ÿ Rotary table Ÿ Reducing sleeve |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
