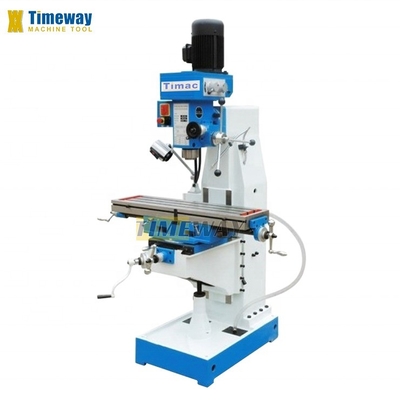

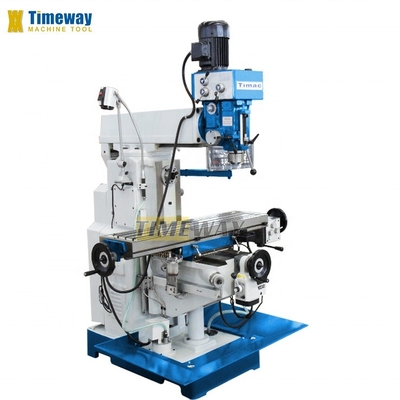

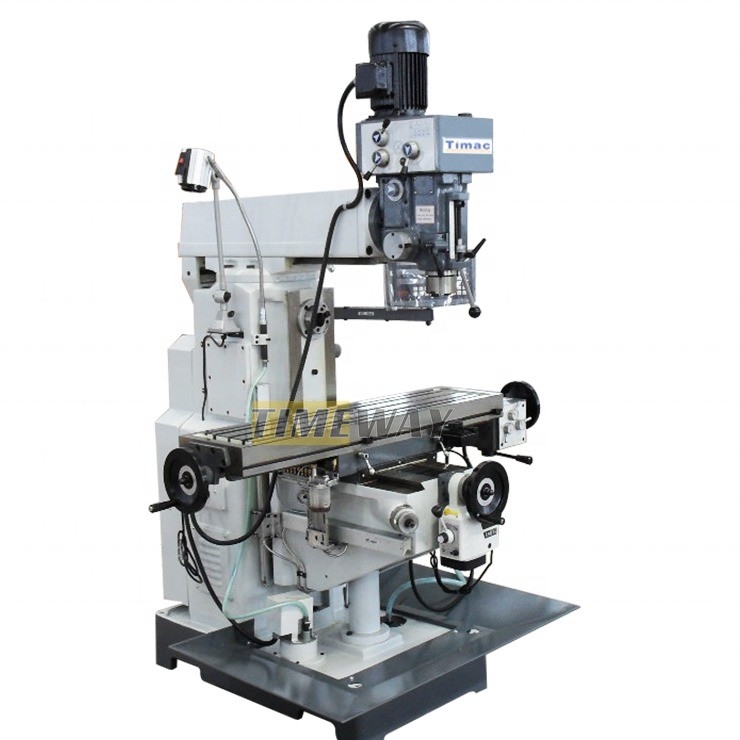

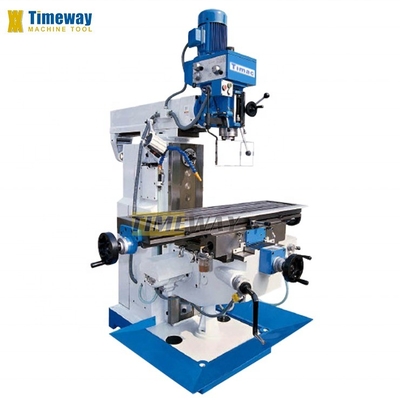

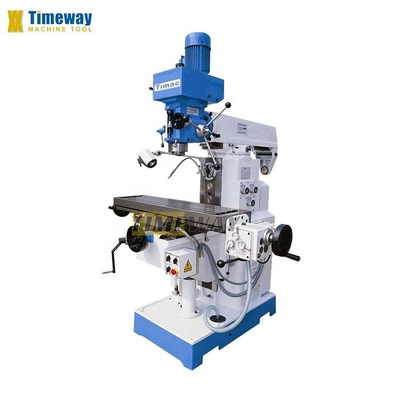

ISO40 Spindle Taper Milling Drilling Machine for Precise and Versatile Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | MD400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $13,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 600 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 260 | Table Travel (Z) (mm): | 300 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 90 - 2000 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 1..5 |
| Voltage: | 380V | Dimension(L*W*H): | 1660x1340x2130 |
| Weight (KG): | 1250 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate Drilling Milling Machine | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 280x1120/280x1200 |
| Longitudinal Travel (X): | 600 | Cross Travel (Y): | 260 |
| Vertical Travel (Z): | 300 | T-slot No. And Size And Distance: | 3/14/70 |
| Distance From Vertical Spindle To Table: | 110-410 | Max. Drilling Capacity: | 50 |
| Vertical Spindle Taper: | ISO40 | Vertical Spindle Speed: | 90-2000 (8) |
| Horizontal Spindle Speed: | 40-1300 (12) | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Sri Lanka, Romania, Nigeria, Egypt, United States, Philippines | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox |
| Table Travel (mm): | 280x1120/280x1200 | Port: | China Port |
Product Description
Products Description
Features:
---Coolant system and work lamp and chip collection tray are included in standard equipment.
---Compact, easy to handle milling machine with rigid frame made of vibration-dampening cast-iron.
---Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
---Vertical and horizontal spindle speeds are changed by gear-box.
---Auto-feed and rapid feed on X, Y axes, lifting motor is on Z axis.
---Spindle quill automatic feed with 3 steps, drill depth stop with display of measurement.
---Entire cutter head swivels ±90°, expand machining range of machine tools.
---Top beam can be rotated by ±180° on the column to horizontal machining.
----Coolant system and work lamp and chip collection tray are included in standard equipment.
---Compact, easy to handle milling machine with rigid frame made of vibration-dampening cast-iron.
---Hardened and ground table surface, guideways, and gears; The guideway is scrapped by hand.
---Vertical and horizontal spindle speeds are changed by gear-box.
---Auto-feed and rapid feed on X, Y axes, lifting motor is on Z axis.
---Spindle quill automatic feed with 3 steps, drill depth stop with display of measurement.
---Entire cutter head swivels ±90°, expand machining range of machine tools.
---Top beam can be rotated by ±180° on the column to horizontal machining.
----Coolant system and work lamp and chip collection tray are included in standard equipment.
Specifications | Unit | MD500 |
Table size | mm | 280x1120/280x1200 |
Longitudinal travel (X) | mm | 600 |
Cross travel (Y) | mm | 260 |
Vertical travel (Z) | mm | 300 |
T-slot No. and size and distance | mm | 3/14/70 |
Loading capacity | kg | 200 |
Max. drilling capacity | mm | 50 |
Max. tapping capacity | mm | M16 |
Distance from vertical spindle to table | mm | 110-410 |
Distance from vertical spindle to column | mm | 200-700 |
Vertical spindle taper | - | ISO40 |
Verical spindle quill travel | mm | 120 |
Vertical spindle quill automatic feed | mm/r | 0.08/0.15/0.25 |
Vertical spindle speed | rpm | 90-2000 (8) |
Vertical spindle motor power | kw | 2.2 |
Distance from horizontal spindle center to table | mm | 0-300 |
Horizontal spindle taper | - | ISO40 |
Horizontal spindle speed | rpm | 40-1300 (12) |
Horizontal spindle motor power | kw | 2.2 |
X/Y-axis feed speed | mm/min | X: 36-1100 |
Z-axis rapid feed speed | mm/min | - |
Mill head swivel angle | ° | ±45° |
Machine dimensions (LxWxH) | mm | 1660x1340x2130 |
Net weight/gross weight | kg | 1300/1380 |
STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
Draw bar, Coolant system, Chip tray, Work lamp, Lubrication system, Tools and Tool box, Operator manual | 2/3-axis digital readout 58pcs clamping kit, Machine vise, Spindle protection guard, Table protection guard, Dividing head, Rotary table, Reducing sleeve |
