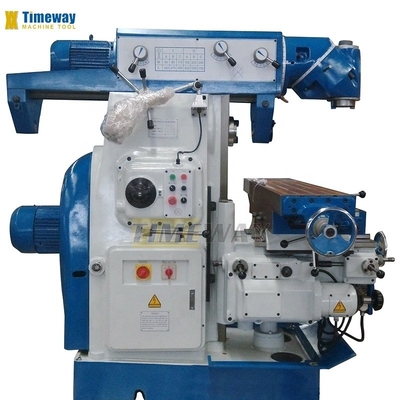

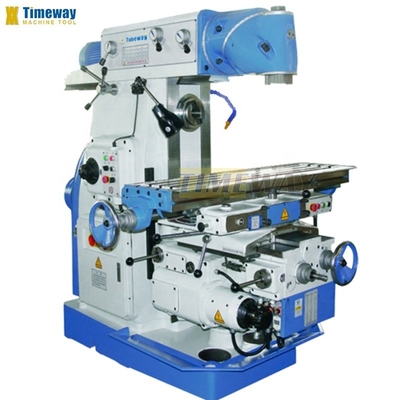

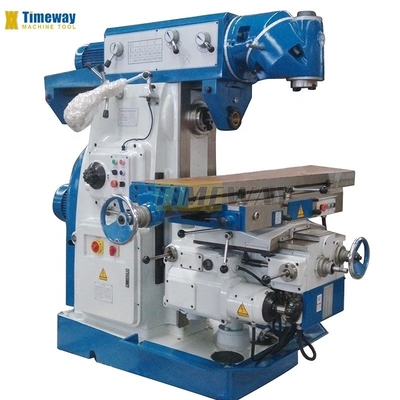

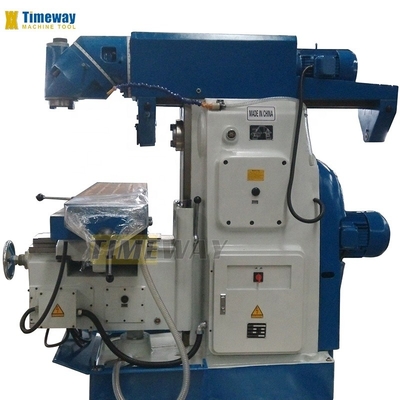

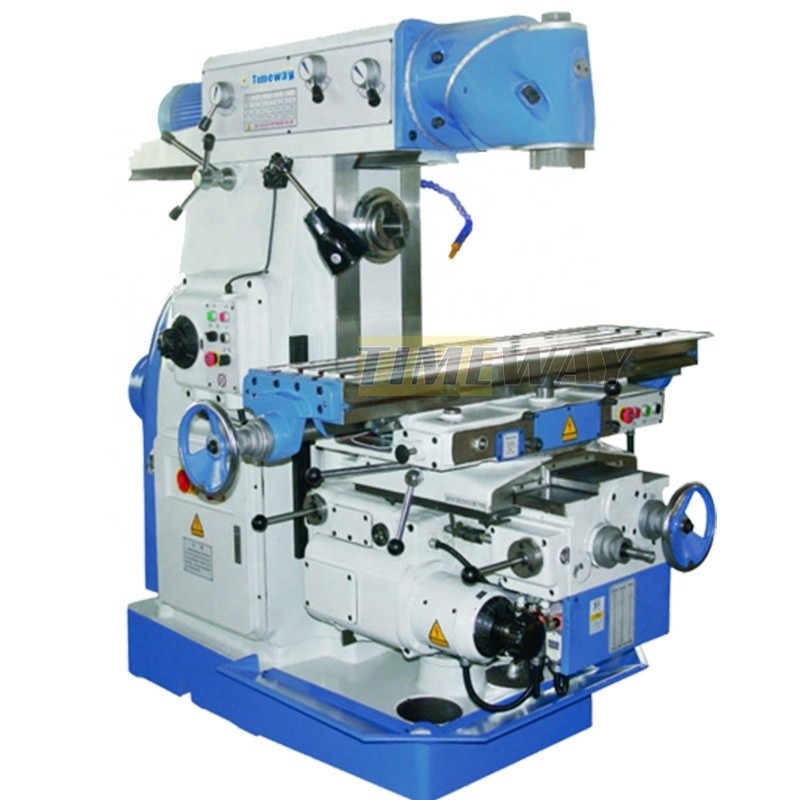

4 kW Manual Swivel Head Knee-type Milling Machine Perfect for Your Production Needs
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | US320 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 700 Mm | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 255 Mm | Table Travel (Z) (mm): | 320 Mm |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 60 - 1750 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 4 Kw |
| Voltage: | 220/380 V | Dimension(L*W*H): | 2295x1770x1780 Mm |
| Weight (KG): | 2900 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Swivel Head Knee-type Milling Machine |
| Keyword: | Milling Machine | Function: | Metal Cutting |
| CNC Or Not: | Normal | Table Size: | 320x1325 Mm |
| Spindle Speed Range: | 60-1750 Rpm | Main Motor Power: | 4 Kw |
| Net Weight: | 2900 Kg | Overall Sizes: | 2294x1770x1780 Mm |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Kenya, South Korea, Romania, Ukraine, Australia, United States, Brazil, Mexico, Russia | Table Travel (mm): | 700x255x320 Mm |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Motor, Other |
| Port: | China Port | ||
Product Description
Products Description

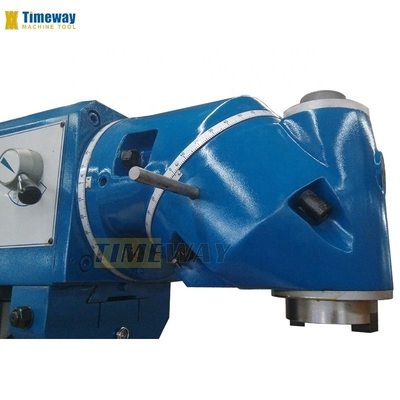

* The mill machine is a solidly constructed universal milling machine featuring a moveable arm and big clamping area. * The big dimensioned guideways in all axis guarantees absolute precision and stability. * Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing. * Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance. * The milling table features a large setup area, long X-axis travel, and it can be horizontally swiveled up to 45°. * Quiet and precision-made headstock gears with hardened and ground gears. * The universal cutter head swivels on 2 planes, allowing virtually any spatial angle setting. * Verrtical and horizontal spindles each have a separate drive with gearbox for maximum machining power. * Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle. * Minimum downtime due to rapid positioning of work table and rapid feeds in all axes. * Swiveling control panel with integrated position indicator for maximum operator comfort. * Coolant system and chip tray are included.
Specification | Unit | US320 | US320B | |
Table size | mm | 320X1325 | 320X1600 | |
Max Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 | |
Max transverse travel(manual/auto) | mm | 250/240 | ||
Max transverse vertical travel(manual/auto) | mm | 320/300 | ||
Max rotary angle | ±45° | |||
T-Slots(N/W/D) | 3/28/70 | |||
Spindle hole taper | mm | 7:24 ISO50 | ||
Distance from Horizontal spindle axis to table surface | mm | 30-350 | ||
Distance from vertical spindle nose to table surface | mm | 190-510 | ||
Distance from vertical column to table center | mm | 470-215 | ||
Distance from spindle center line to arm surface | mm | 155 | ||
Speed steps | (V):12 (H):18 | |||
Spindle speed range | r.p.m | (V)60-1750 (H)30-1500 | ||
Table feed steps | 18 | |||
Table feed range-Longitudinal | mm/min | 23.5-1180 | ||
Table feed range-Cross | mm/min | 23.5-1180 | ||
Table feed range-Vertical | mm/min | 8-394 | ||
Table rapid moving speed-Longitudinal/Cross | mm/min | 2300 | ||
Table rapid moving speed-Vertical | mm/min | 770 | ||
Main motor power | kw | (V)4 (H)7.5 | ||
Main motor speed | r.p.m | 1440 | ||
Feed motor power | Kw | 1.5 | ||
Feed motor speed | r.p.m | 1440 | ||
Net Weight | Kg | 2900 | 3000 | |
Overall sizes | mm | 2294×1770×1780 | 2294×2050×1780 | |
· Draw bar · Horizontal mill arbor· Coolant system · Chip tray · Work lamp · Lubrication system · Tools and Tool box · Operator manual | · 2/3-axis digital readout · 58pcs clamping kit · Machine vise · Spindle protection guard · Table protection guard · Dividing head · Rotary table · Reducing sleeve |
