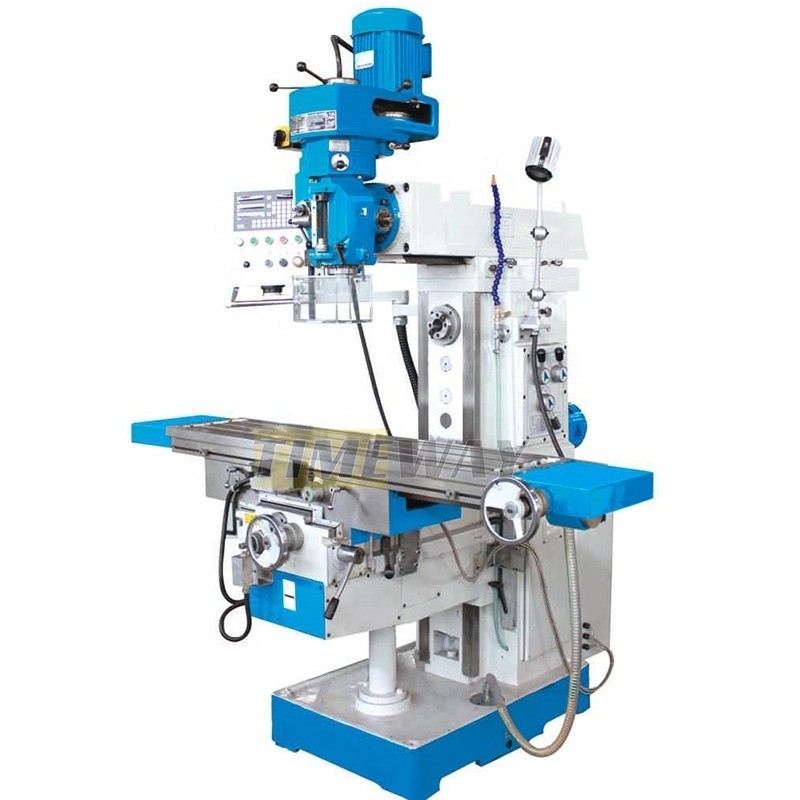

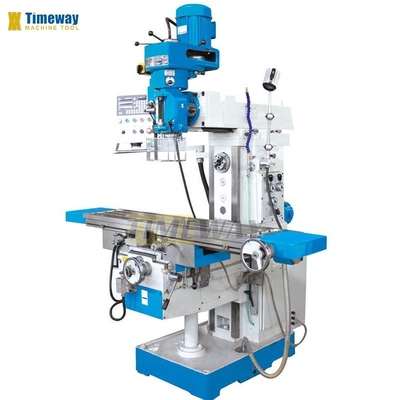

1000mm Table Travel Manual Turret Milling Machine with Spindle Speed Range 65-4660 rpm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | XQ6332C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1000 Mm | Machining Capacity: | Light Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 380 Mm | Table Travel (Z) (mm): | 400 Mm |
| Spindle Taper: | R8/ISO30 | Range Of Spindle Speed(r.p.m): | 65 - 4660 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 Kw |
| Voltage: | 220V/380V | Dimension(L*W*H): | 1820x1680x2350 Mm |
| Weight (KG): | 1800 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Turret Milling Machine |
| Keyword: | Milling Machine | Function: | Metal Milling |
| Model: | XQ6332C | CNC Or Not: | Normal |
| Table Size: | 320x1370 Mm | Spindle Taper: | ISO30 |
| Spindle Speed Range: | 65-4660 Rpm | Net Weight: | 1800 Kg |
| Machine Dimensions (LxWxH): | 1820x1680x2350 Mm | Number Of Axes: | 3 |
| Condition: | New | Showroom Location: | Morocco, Kenya, Romania, Kyrgyzstan, Australia, Italy, Brazil, Peru, Mexico, Russia |
| Table Travel (mm): | 1000x380x400 Mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Bearing, Motor, Other | Port: | China Port |
Product Description
Products Description
* Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing. * Quiet, precision-made headstock gears with hardened and ground gears. * The milling table features a large setup area and can be rotated in linear direction. * The cutter head quill features a 3-step automatic feed and automatic depth shut-off, but can also be moved manually. * Spindle speed of vertical cutter head is infinitely variable over a wide speed range; an auxiliary gearbox ensures powerful torque. * Vertical and horizontal spindle each have their separate drive. * Standard outer arbor support accommodates long milling arbors in the horizontal spindle. * Powerful servo-motor allows infinite variation of feeds on all 3 axes. * Minimum downtime due to rapid positioning of work table and rapid feeds in all axes. * Control panel swivels for comfortable operation.
Specification | Unit | XQ6332A | XQ6332C |
Table size | mm | 320x1370 | 320x1370 |
Longitudinal travel (X) | mm | 820 | 1000 |
Cross travel (Y) | mm | 300 | 380 |
Vertical travel (Z) | mm | 400 | 400 |
T-slot No. and size and distance | mm | 3/14/80 | 3/14/80 |
Vertical spindle taper | R8/ISO30 | R8/ISO30 | |
Vertical spindle speed (steps) | rpm | 65-4660 (16) | 65-4660 (16) |
Vertical spindle motor power | kw | 2.2 | 2.2 |
Distance from horizontal spindle center to table | mm | 75-475 | 75-475 |
Distance from horizontal spindle center to ram | mm | 200 | 200 |
Horizontal spindle taper | ISO40 | ISO40 | |
Horizontal spindle speed (steps) | rpm | 35-1500 (12) | 35-1500 (12) |
Horizontal spindle motor power | kw | 3 3 | 3 3 |
X-axis feed speed | mm/min | 0-830 | 0-830 |
Y-axis feed speed | mm/min | 30-830 | 30-830 |
Z-axis feed speed | mm/min | 23-625 | 23-625 |
X/Y/Z-axis rapid feed speed | mm/min | 1335/1335/1000 | 1335/1335/1000 |
Torque of X/Y/Z axis AC servo motor | N.m | 10 | 10 |
Ram travel | mm | 450 | 450 |
Mill head swivel angle | ° | ±45° | ±45° |
Machine dimensions (LxWxH) | mm | 1820x1680x2350 | 1820x1680x2350 |
Net weight | kg | 1750 | 1800 |
· Draw bar · Horizontal mill arbor · Coolant system · Chip tray · Work lamp · Lubrication system · Tools and Tool box · Operator manual | · 2/3-axis digital readout · Variable stepless mill head · Slotting head · 58pcs clamping kit · Machine vise · Spindle protection guard · Table protection guard · Dividing head · Rotary table · Reducing sleeve |
