High Precision Vertical Milling Machine for Medium Duty Machining Needs at Affordable
Product Details:
| Place of Origin: | SHANGHAI |
| Brand Name: | TIMEWAY |
| Model Number: | VM400W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $5,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 900 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 315 | Table Travel (Z) (mm): | 385 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 30 - 1500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 11 |
| Voltage: | Customize Requirement | Dimension(L*W*H): | 2625x2159x2198 |
| Weight (KG): | 4250 | Warranty: | 12 Months |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 400x1700 Mm |
| T-slot (No./width/pitch): | 3/18/90 Mm | Distance From Spindle Nose To Table: | 115-300 Mm |
| Longitudinal Travel: | 900 Mm | Cross Travel: | 315 Mm |
| Vertical Travel: | 385 Mm | Main Motor Power: | 11 Kw |
| Feed Motor Power: | 3 Kw | Machine Weight: | 4250 Kg |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Construction Works | Showroom Location: | Nigeria, Uzbekistan, Egypt, Italy, Brazil |
| Core Components: | Motor, Engine | Table Travel (mm): | 400x1700 |
| Year: | NEW | Port: | China Port |
Product Description
Products Description

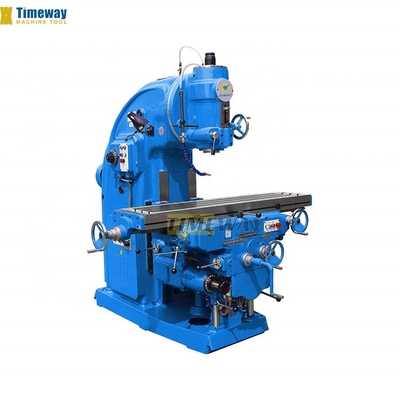

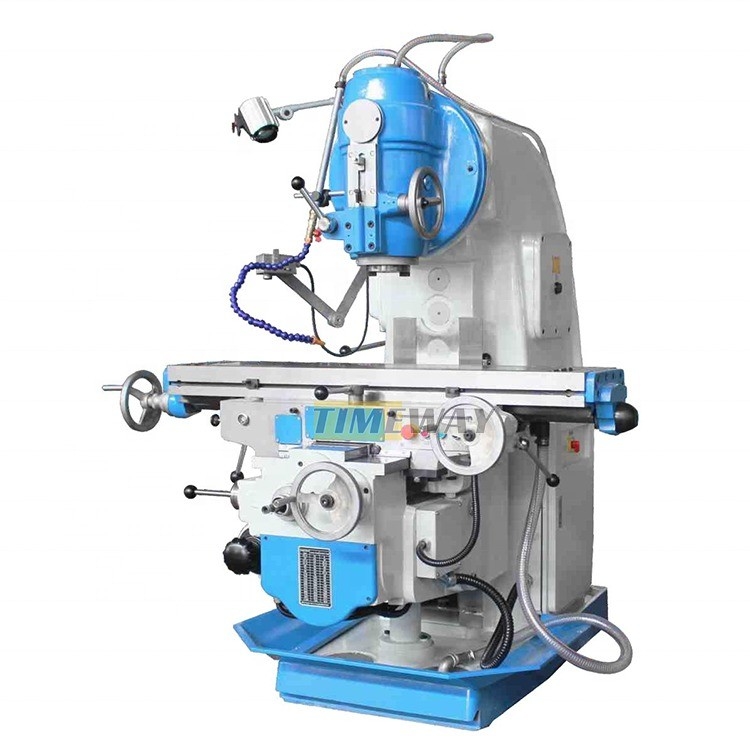

1. Rugged knee-and-column milling machine, massive machine frame with very rigid knee slide.
2. X/Y/Z axis with automatic feed and rapid feed.
3. Worktable and guideways and transmission gears are hardened and ground.

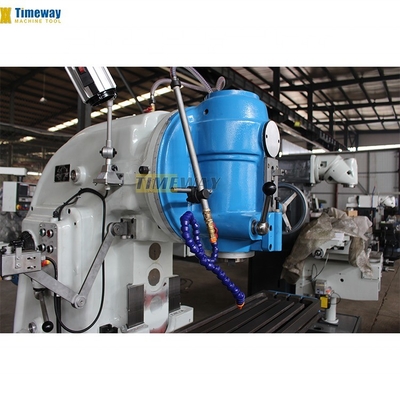

4. Extremely rigid cutter head, swivel ±45 degree.
5. Manual quill feed for boring and micro-feed.
6. 2/3-axis position indicator is available.
2. X/Y/Z axis with automatic feed and rapid feed.
3. Worktable and guideways and transmission gears are hardened and ground.
4. Extremely rigid cutter head, swivel ±45 degree.
5. Manual quill feed for boring and micro-feed.
6. 2/3-axis position indicator is available.
Specification | Unit | VM320W | VM400W |
Table size | mm | 320x1325 | 400x1700 |
T-slot (No./width/pitch) | mm | 3/18/90 | 3/18/90 |
Distance from spindle nose to table | mm | 60-410 | 115-500 |
Longitudinal travel(manual/auto) | mm | 700/680 | 900/880 |
Cross travel(manual/auto) | mm | 255/240 | 315/300 |
Vertical travel(manual/auto) | mm | 350/330 | 385/365 |
Mill head swivel angle | ° | ±45° | ±45° |
Spindle bore diameter | mm | 29 | 29 |
Spindle taper | - | 7:24 ISO50 | 7:24 ISO50 |
Spindle speed range | r/min | 30-1500 | 30-1500 |
Spindle speed step | steps | 18 | 18 |
Table longitudinal feed speed (X) | mm/min | 23.5-1180 | 23.5-1180 |
Table cross feed speed (Y) | mm/min | 15-786 | 15-786 |
Table vertical feed speed (Z) | mm/min | 8-394 | 8-394 |
Feed speed steps (X/Y/Z) | steps | 18 | 18 |
Rapid feed speed(X/Y/Z) | mm/min | 2300/1540/770 | 2300/1540/770 |
Main motor power | kw | 7.5 | 11 |
Feed motor power | kw | 1.5 | 3 |
Overall dimensions (Lx WxH) | mm | 2294x1780x2150 | 2656x2159x2198 |
Machine weight | kg | 2860 | 4250 |
Draw bar Coolant system Chip tray Work lamp Lubrication system Tools and Tool box Operator manual Draw bar | 2/3-axis digital readout 58pcs clamping kit Machine vise Spindle protection guard Table protection guard Dividing head Rotary table Reducing sleeve |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
