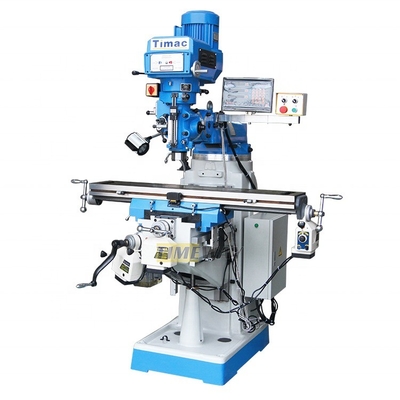

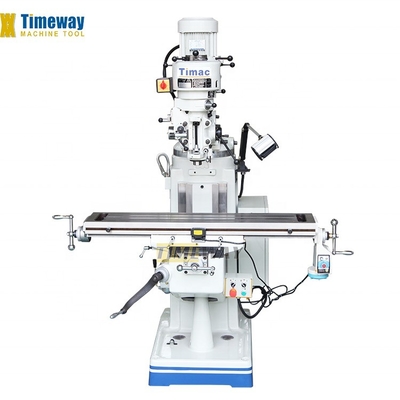

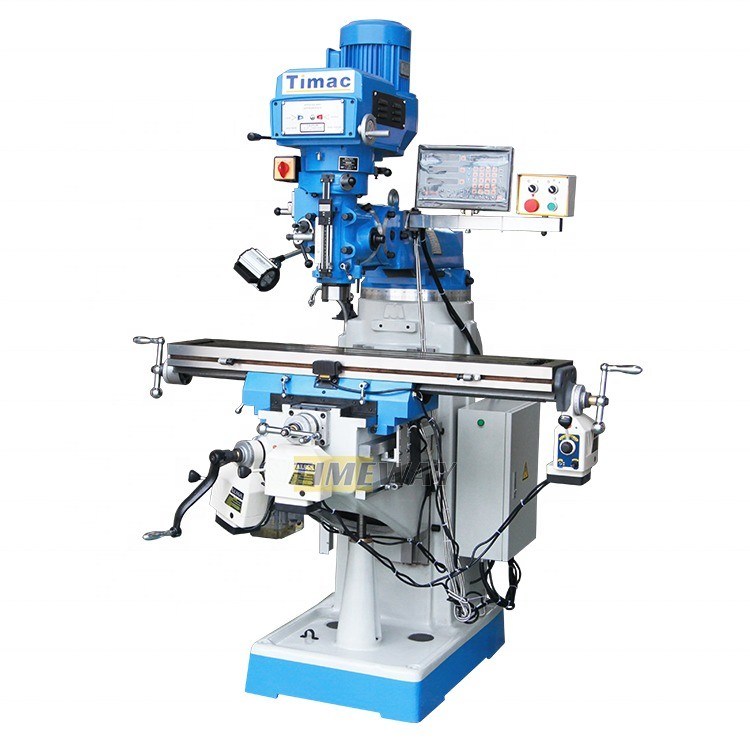

High Precision Turret Milling Machine with ISO50 Spindle Taper and 1060KG Weight
Product Details:
| Place of Origin: | SHN |
| Brand Name: | TIMEWAY |
| Model Number: | M230B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $4,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 610 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 310 | Table Travel (Z) (mm): | 390 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 11 |
| Voltage: | 380V Or Others | Dimension(L*W*H): | 1400x1476x2030 |
| Weight (KG): | 1060 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 230x1067 Mm |
| Longitudinal Travel (X): | 610 Mm | Cross Travel (Y): | 310mm |
| Vertical Travel (Z): | 390mm | T-slot (No./width): | 3/16 Mm |
| Ram Travel: | 315 Mm | Distance From Spindle To Table: | 0-350 Mm |
| Spindle Taper: | R8 | Dimension Of Package: | 1400x1476x2030 |
| Gross Weight: | 1060 Kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | Egypt, Peru, Saudi Arabia, Russia, Spain | Core Components: | Motor, Engine |
| Table Travel (mm): | 230x1067 | Year: | NEW |
| Port: | China Port | ||
Product Description
Products Description
1. These robust and stable universal milling machines are ideal for drilling and milling simple to difficult workpieces in single part production, repair shop, training etc.
2. Base and column integrated casting, to gain better verticality and stability.
3. The bed, knee, table guide way and table surface are high-frequency quenched and precision polished, with hardness HRC45.
4. The guide way on saddle is lined with TF wearable material, which make machine accuracy stability.
5. T-slots not extend to the end of table, which makes is with high rigidity and long using life; Both sides of the central T-slot was precision polished with high linear and orientation accuracy.
6. Worktable features large clamping area, and expand the worktable size for customers to choose.
7. For different model machines, mill head with standard spindle 16speed step pulley mill head driven 3HP/5HP motor, spindle diameter up to be100mm (only for 5HP motor).
8. All milling machines are also available with optional stepless mill head or inverter mill head, steplessly adjustable spindle speed with mechanic spindle brake.

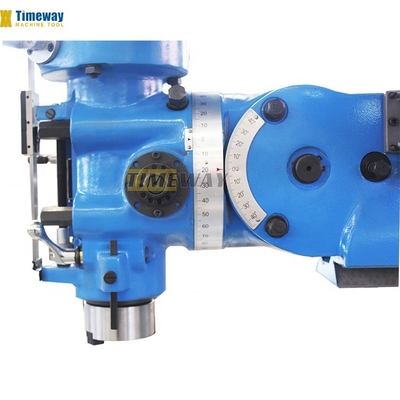

9. Universal mill head can be turned by ram on the column, tilted ±45° front to rear, swivelled ±90° left to right; but user can choose fixed structure with no tilted ±45° for cutting intensity well.
10. X-axis adopts double dovetail guideways; Y-axis and Z-axis adopt double devotail guideways or rectangular guideways.

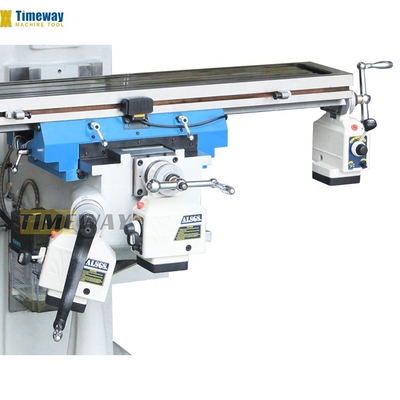

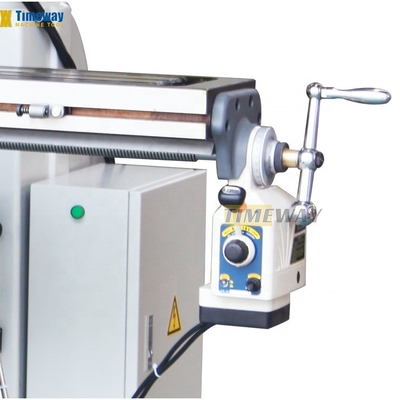

11. X/Y/Z-axis can optional equipped with electronic feeder for automatic feeds, Z-axis can also adopt high speed lifting motor for rapid lifting.
12. Spindle is chromium plated and features micrometer depth stop for quill automatic feeding cutting.
13.Standard lubrication system for all guideways; Powerful coolant device included in machine base.

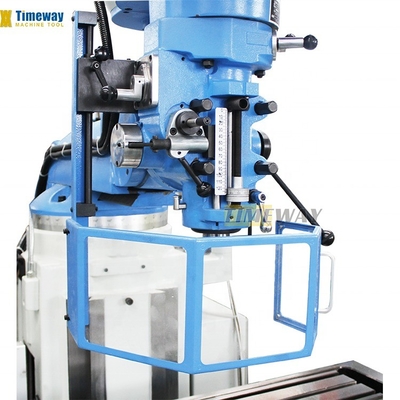

14.Spindle guard, table guard, 2/3-axis digital readout, air draw bar, slotting head are optional.
2. Base and column integrated casting, to gain better verticality and stability.
3. The bed, knee, table guide way and table surface are high-frequency quenched and precision polished, with hardness HRC45.
4. The guide way on saddle is lined with TF wearable material, which make machine accuracy stability.
5. T-slots not extend to the end of table, which makes is with high rigidity and long using life; Both sides of the central T-slot was precision polished with high linear and orientation accuracy.
6. Worktable features large clamping area, and expand the worktable size for customers to choose.
7. For different model machines, mill head with standard spindle 16speed step pulley mill head driven 3HP/5HP motor, spindle diameter up to be100mm (only for 5HP motor).
8. All milling machines are also available with optional stepless mill head or inverter mill head, steplessly adjustable spindle speed with mechanic spindle brake.
9. Universal mill head can be turned by ram on the column, tilted ±45° front to rear, swivelled ±90° left to right; but user can choose fixed structure with no tilted ±45° for cutting intensity well.
10. X-axis adopts double dovetail guideways; Y-axis and Z-axis adopt double devotail guideways or rectangular guideways.
11. X/Y/Z-axis can optional equipped with electronic feeder for automatic feeds, Z-axis can also adopt high speed lifting motor for rapid lifting.
12. Spindle is chromium plated and features micrometer depth stop for quill automatic feeding cutting.
13.Standard lubrication system for all guideways; Powerful coolant device included in machine base.
14.Spindle guard, table guard, 2/3-axis digital readout, air draw bar, slotting head are optional.
Specification | Unit | M230A | M2330B | |
Table size | mm | 230x1067/230x1246 | 230x1067/230x1246 | |
Longitudinal travel (X) | mm | 670/850 | 610/790 | |
Cross travel (Y) | mm | 310 | 310 | |
Vertical travel (Z) | mm | 390 | 390 | |
T-slot (No./width) | mm | 3/16 | 3/16 | |
Ram travel | mm | 315 | 315 | |
Distance from spindle to table | mm | 0-350 | 0-350 | |
Spindle taper | - | R8 (Optional : ISO30/ISO40) | R8 (Optional : ISO30/ISO40) | |
Spindle quill travel | mm | 127 | 127 | |
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | 0.038/0.076/0.152 | |
Main motor power | kw | 2.2 | 2.2 | |
Mill head swivel angle | ° | ±90° | ±90° | |
Mill head tilting angle | ° | ±45° | ±45° | |
Dimension of package | mm | 1400x1476x2030 | 1400x1476x2030 | |
Gross weight (One) | kg | 1000 | 1060 | |
