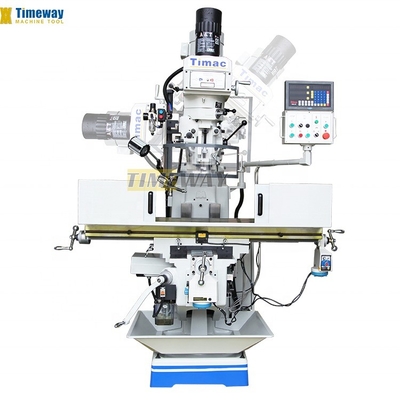

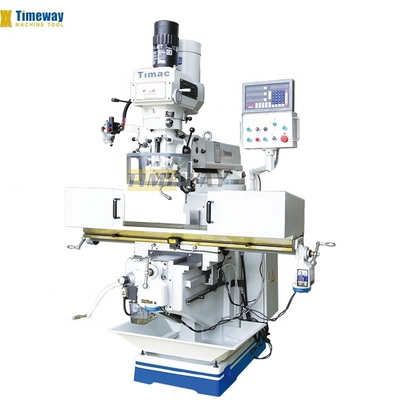

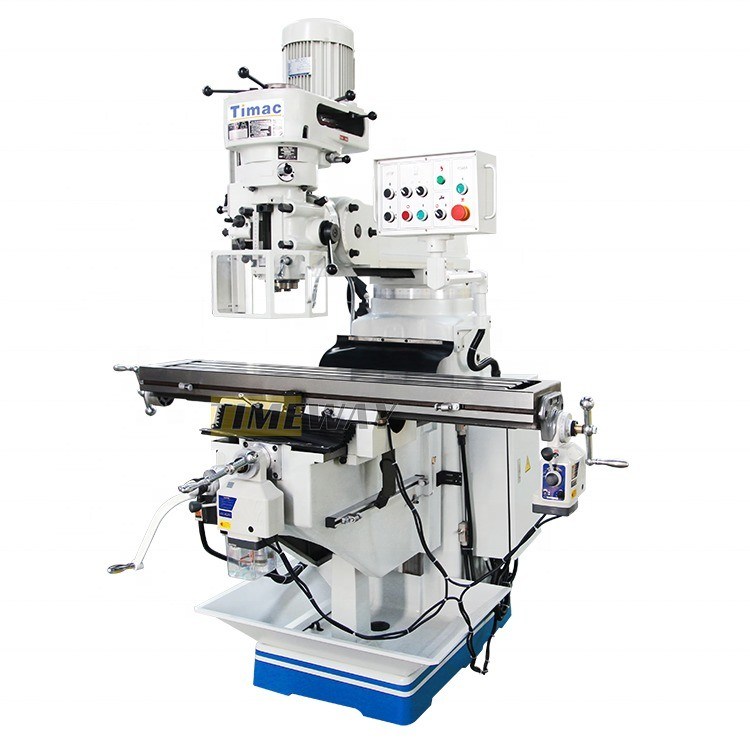

0-400mm Spindle to Table Distance Turret Milling Machine for High Precision Work
Product Details:
| Place of Origin: | SHANGHAI |
| Brand Name: | TIMEWAY |
| Model Number: | M250C/M300/M330 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 820 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 410 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 3.7 |
| Voltage: | 220V 380V 415V | Dimension(L*W*H): | 1516x1550x2080 |
| Weight (KG): | 1490 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 254x1270 Mm |
| Longitudinal Travel (X): | 820/920 Mm | Cross Travel (Y): | 410 Mm |
| Vertical Travel (Z): | 400 Mm | T-slot (No./width): | 3/16 Mm |
| Ram Travel: | 470 Mm | Distance From Spindle To Table: | 0-400 Mm |
| Spindle Taper: | ISO40 | Dimension Of Package: | 1516x1550x2080 Mm |
| Gross Weight: | 1490 Kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Romania, Nigeria, Egypt, Canada, France | Core Components: | Motor, Engine |
| Table Travel (mm): | 254x1270 | Year: | NEW |
| Port: | China Port | ||
Product Description
Products Description
Specifications | Unit | M250C | M300 | M330 | ||
Table size | mm | 254x1270/254x1370 | 305x1370/305x1500 | 330x1370/330x1500 | ||
Longitudinal travel (X) | mm | 820/920 | 870/1000 | 820/1000 | ||
Cross travel (Y) | mm | 410 | 360 | 380 | ||
Vertical travel (Z) | mm | 400 | 380 | 460 | ||
T-slot (No./width) | mm | 3/16 | 3/16 | 3/16 | ||
Ram travel | mm | 470 | 500 | 500 | ||
Distance from spindle to table | mm | 0-400 | 0-350 | 0-450 | ||
Spindle taper | - | ISO40 | ISO40 | ISO40 | ||
Spindle quill travel | mm | 127 | 127 | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 65-3750) | ||||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | 0.038/0.076/0.152 | 0.038/0.076/0.152 | ||
Main motor power | kw | 3.7 | 3.7 | 3.7 | ||
Mill head swivel angle | ° | ±90° | ±90° | ±90° | ||
Mill head tilting angle | ° | ±45° (Fix) | ±45° (Fix) | ±45° (Fix) | ||
Dimension of package(one) | mm | 1516x1550x2080 | 1566x1650x2080 | 1800x2020x2200 | ||
Dimension of package(two) | mm | 1650x1790x2170 | 1720x1800x2175 | 1800x2200x2180 | ||
Gross weight (One) | kg | 1490 | 1650 | 2200 | ||
