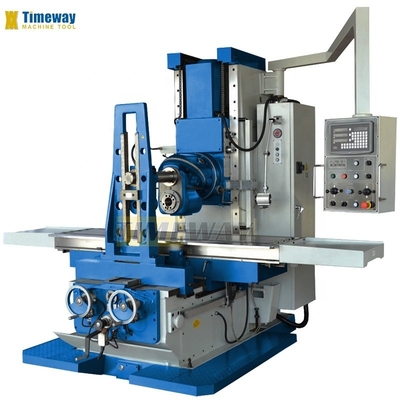

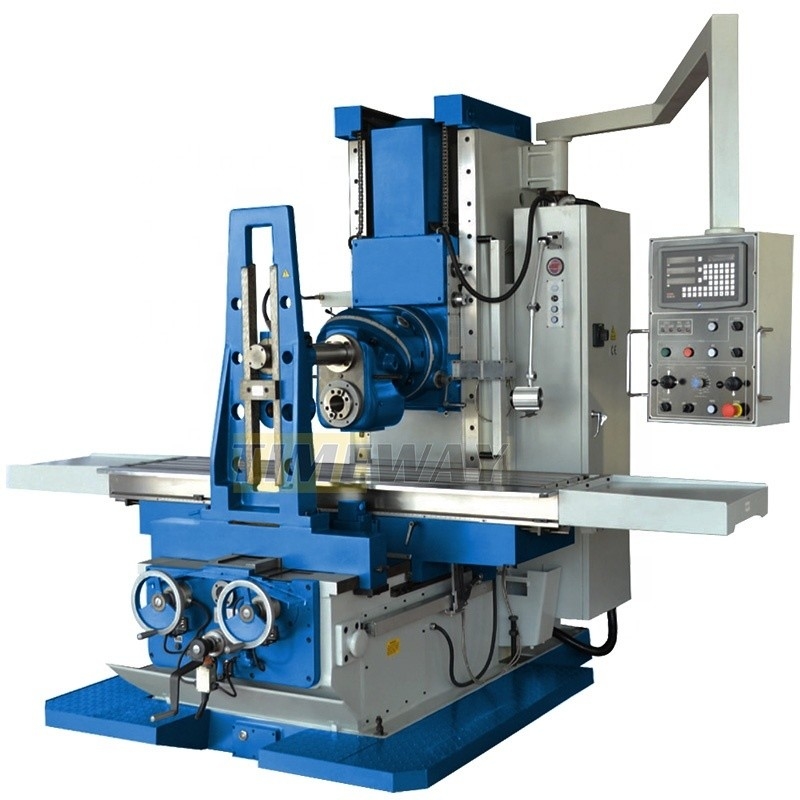

3220*2420*2800 mm Machine Dimensions Universal Bed Type Milling Machine for Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | BM715 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1500 Mm | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 650 Mm | Table Travel (Z) (mm): | 400 Mm |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 6 - 1500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 11 Kw |
| Voltage: | 220/380 V | Dimension(L*W*H): | 3220*2420*2800 Mm |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Bed Type Milling Machine |
| Keyword: | Bed Type Milling Machine | Function: | Metal Milling |
| Model: | BM715 | Table Size: | 500*2100 Mm |
| Spindle Speed Range: | 6-1500 Rpm | Main Motor Power: | 11 Kw |
| Machine Dimensions (L*W*H): | 3220*2420*2800 Mm | Machine Weight: | 7300 Kg |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Morocco, Kenya, Algeria, Sri Lanka, Kyrgyzstan, Nigeria, Australia, Egypt, Italy, Saudi Arabia, Russia, Spain | Table Travel (mm): | 1500*650 Mm |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Gear, Other |
| Port: | China Port | ||
Product Description
Products Description
bed type milling machine
* An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
* Extra wide guideways ensure maximum stability and precision at high loads.
* Extra long table travel distance (2500 mm) and large table set-up area (2800 x 500 / 2800 x 700mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
* Wide spindle speed ranges from 36 to 1340 rpm with 12steps speed.
* Control panel on a long extending arm that can be ideally positioned by the operator.

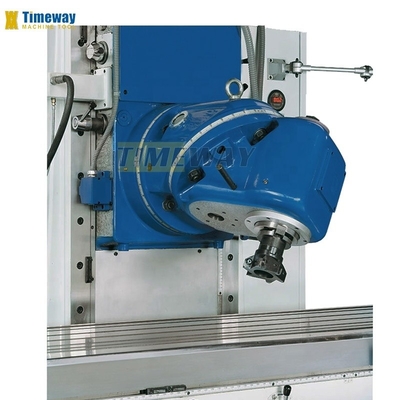

* This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale.
* This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.

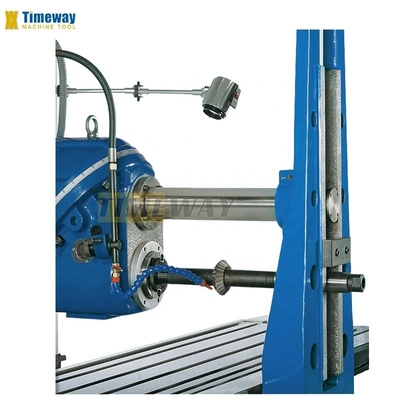

* The milling machine includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bedtype milling machine design for machining with long cutter arbors.
* Extra wide guideways ensure maximum stability and precision at high loads.
* Extra long table travel distance (2500 mm) and large table set-up area (2800 x 500 / 2800 x 700mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
* Wide spindle speed ranges from 36 to 1340 rpm with 12steps speed.
* Control panel on a long extending arm that can be ideally positioned by the operator.
* This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale.
* This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.
* The milling machine includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bedtype milling machine design for machining with long cutter arbors.
Specification | Unit | BM715 | BM716 |
Table size | mm | 500x2100 | 600x2500 |
Longitudinal travel (X) | mm | 1500 | 1800 |
Cross travel (Y) | mm | 650 | 700 |
T slot (No./width/distance) | mm | 4/20/100 | 5/20/100 |
Spindle taper | – | ISO50 | ISO50 |
Verical spindle speed | rpm | 6-1500 (2steps) | 6-1500 (2steps) |
Distance from horizontal spindle axis to table | mm | 8-660 | 8-660 |
Distance from vertical spindle axis to column | mm | 610 | 610 |
Distance from vertical spindle nose to table | mm | 0-650 | 0-700 |
X/Y-axis feed speed | mm/min | 2.5-3000 | 2.5-3000 |
X/Y-axis rapid feed speed | mm/min | 6000 | 6000 |
Z-axis feed speed | mm/min | 2.5-2500 | 2.5-2500 |
Z-axis rapid feed speed | mm/min | 3000 | 3000 |
Main motor power | kw | 11 | 11 |
X/Y/Z-axis feed motor torque | NM | 18/23/18 | 18/23/18 |
Coolant pump power | kw | 0.09 | 0.09 |
Machine dimensions (L×W×H) | mm | 3220x2420x2800 | 4380x2520x2800 |
Machine weight | kg | 7300 | 9000 |
· Milling chuck (ISO50) · Taper shell end mill holder (ISO50) · Middle cover · Draw bar · Work lamp · Oil gun · Automtaic lubrication system · Cooling system · Tools & tool-box · Leveling bolts & wedges · Operation manual | · 2/3-axis digital readout · Rotary table · Dividing head |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
