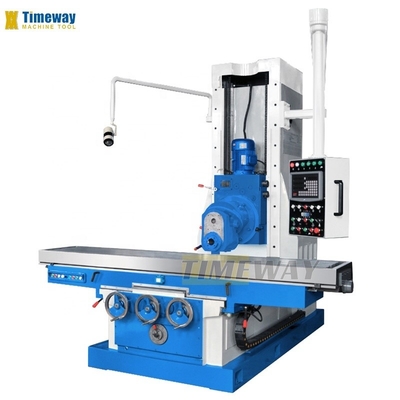

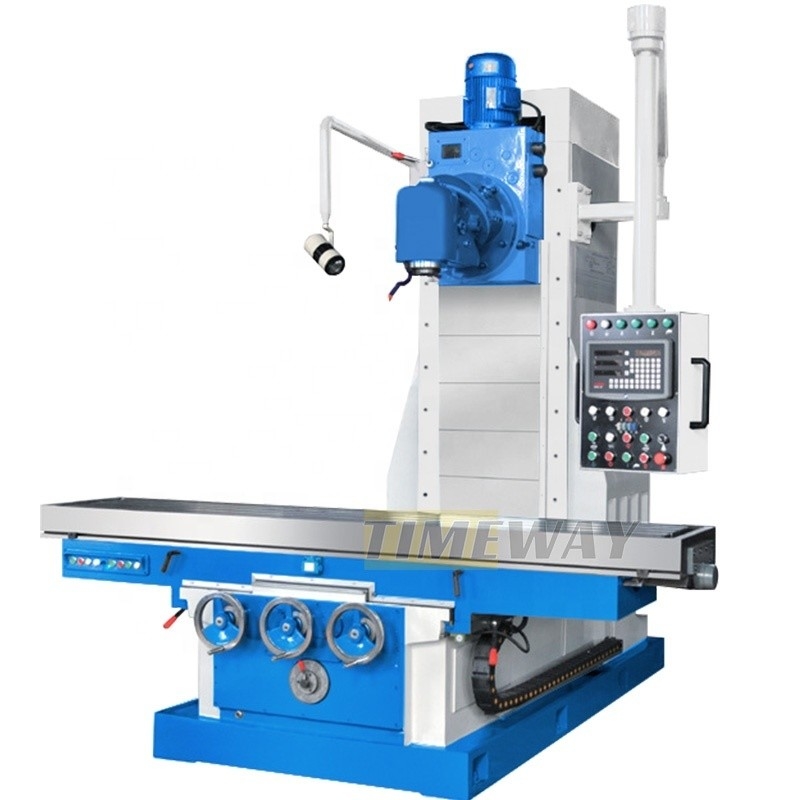

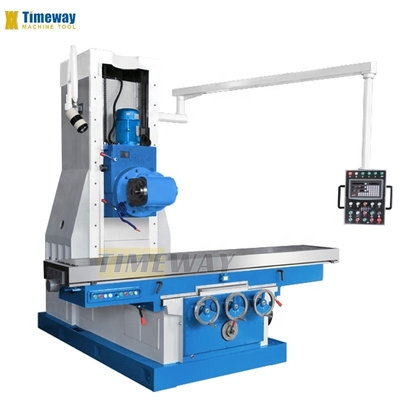

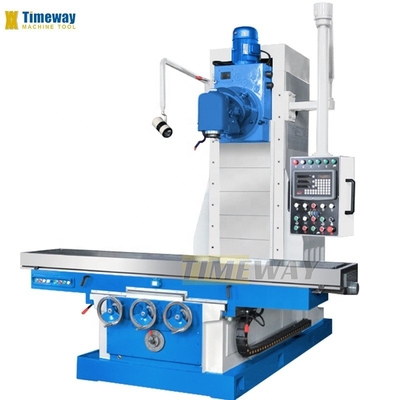

1020 mm Table Travel Vertical Bed Type Milling Machine for Heavy-Duty Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | BM7110 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2500 Mm | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1020 Mm | Table Travel (Z) (mm): | 1090 Mm |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 36 - 1340 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 7.5 Kw |
| Voltage: | 220/380 V | Dimension(L*W*H): | 3020*3000*3000 Mm |
| Weight (KG): | 9000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Bed Type Milling Machine |
| Keyword: | Bed Type Milling Machine | CNC Or Not: | Normal |
| Model: | BM7110 | Table Size: | 500*2800 Mm |
| Spindle Speed Range: | 36-1340 Rpm | Main Motor Power: | 7.5 Kw |
| Machine Weight: | 9000 Kg | Machine Dimensions (L*W*H): | 3020*3000*3000 Mm |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Morocco, Kenya, Sri Lanka, Ukraine, Malaysia, Australia, Italy, Brazil, Peru, Mexico, Russia | Table Travel (mm): | 2500*1020*1090 Mm |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Core Components: | Bearing, Gear, Other |
| Port: | China Port | ||
Product Description
Products Description
* An extremely rigid, large-sized box-column design, made of premium cast-iron, provides a solid base for optimum work results.
* Extra wide guideways ensure maximum stability and precision at high loads.
* Extra long table travel distance (2500 mm) and large table set-up area (2800 x 500 / 2800 x 700mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
* Wide spindle speed ranges from 36 to 1340 rpm with 12steps speed.
* Control panel on a long extending arm that can be ideally positioned by the operator.
* This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale.
* This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.
* The milling machine includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bedtype milling machine design for machining with long cutter arbors.
* Extra wide guideways ensure maximum stability and precision at high loads.
* Extra long table travel distance (2500 mm) and large table set-up area (2800 x 500 / 2800 x 700mm) allow machining of large single parts or interactive machining of several parts - to give you a leading edge over your competition.
* Wide spindle speed ranges from 36 to 1340 rpm with 12steps speed.
* Control panel on a long extending arm that can be ideally positioned by the operator.
* This universal cutter head features maximum rigidity and quiet operation. The angle can be set manually on an infinitely adjustable scale.
* This allows an exact adjustment of the headstock in user-defined spatial angles and easy movement to a horizontal position.
* The milling machine includes a horizontal cutter arbor holder with excellent rigidity, allowing the user to fully utilize the advantages of a bedtype milling machine design for machining with long cutter arbors.
Specification | Unit | BM718 | BM7110 |
Table size | mm | 700x2800 | 500x2800 |
Longitudinal travel (X) | mm | 2500 | 2500 |
Cross travel (Y) | mm | 820 | 1020 |
Vertical travel (Z) | mm | 1090 | 1090 |
T slot (No./width/distance) | mm | 4/20/100 | 4/20/100 |
Loading capacity | kg | 5000 | 5000 |
Spindle taper | – | ISO50 | ISO50 |
Spindle speed | rpm | 36-1340 (12) | 36-1340 (12) |
Distance from spindle axis to table | mm | 385-1540/0-1160 | 385-1540/0-1160 |
Distance from spindle axis to column | mm | 900 | 900 |
Distance from spindle nose to table | mm | 0-1090 | 0-1090 |
X/Y-axis feed speed | mm/min | 22.4-560 | 22.4-560 |
X/Y-axis rapid feed speed | mm/min | 1650 | 1650 |
Z-axis feed speed | mm/min | 11.2-280 | 11.2-280 |
Z-axis rapid feed speed | mm/min | 825 | 825 |
Main motor power | kw | 7.5 | 7.5 |
Machine weight | kg | 10000 | 9000 |
Machine dimensions (L×W×H) | mm | 3020x3000x3000 | 3020x3000x3000 |
· Draw bar · Horizontal mill arbor· Horizontal mill arbor holder · Coolant system · Chip tray · Work lamp · Lubrication system · Tools and Tool box · Operator manual | · 2/3-axis digital readout · 58pcs clamping kit · Machine vise · Spindle protection guard · Table protection guard · Dividing head · Rotary table · Reducing sleeve |
