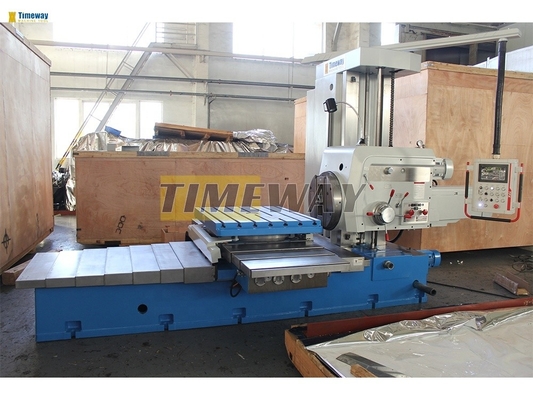

Max. Loading Weight of 5000kg High Precision DRO Horizontal Boring and Milling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | TPX-110B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets >=1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 900 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 | Table Travel (Z) (mm): | 1400 |
| Spindle Taper: | Other | Range Of Spindle Speed(r.p.m): | 8 - 1000 R.p.m |
| Type: | Horizontal | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 220V/380V/400V | Dimension(L*W*H): | 4910x2454x2750 |
| Weight (KG): | 11500 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Spindle Diameter: | 110mm |
| Max. Spindle Torque: | 1225N.m | Spindle Speed Range: | 8-1000rpm |
| Spindle Speed Steps: | 22 Steps | Max. Facing Head Torque: | 1960N.m |
| Facing Head Diameter: | 600mm | Facing Head Range: | 4-200rpm |
| Max. Loading Weight On Table: | 5000kg | Rapid Feed Speed (X/Y/Z/W): | 2500mm/min |
| Machine Weight: | 11500kg | Number Of Axes: | 5 |
| Condition: | New | Showroom Location: | South Korea, Chile, UAE, Colombia, Ukraine, Malaysia, Canada, Turkey, United Kingdom, United States, Italy, Peru, Pakistan, India, Mexico, Russia |
| Core Components: | Bearing, Motor, Gearbox | Table Travel (mm): | 900x900x1400 |
| Year: | 2021 | Applicable Industries: | Manufacturing Plant, Energy & Mining, Other |
Product Description
Products Description
Features:
1. This series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and non-ferrous workpieces. Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes. The facing plate slide can be fed radially, which enables the machine to bore large size holes, turning outside diameters, and grooving. This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc.
2. The spindle has 3 supporting points and good rigidity. Nitrogen treatment is employed on the main surface, which enables the spindle to have high hardness and long service life.
3. The spindle and feed speed change adopt manual rotary valve in the headstock and hydraulic pre-selection, which is convenient for operation.
2. The spindle has 3 supporting points and good rigidity. Nitrogen treatment is employed on the main surface, which enables the spindle to have high hardness and long service life.
3. The spindle and feed speed change adopt manual rotary valve in the headstock and hydraulic pre-selection, which is convenient for operation.
4. The motion distribution and clamping of headstock vertical travel, worktable longitudinal and transverse travel and rotary motion all adopt automatic control and centralized operation, which result in the saving of time and effort, also making the machine convenient and reliable to use.
5. The worktable is equipped with 4x90° optical positioning device, which assures high accuracy.
Specification | Unit | TPX-110B | TPX-110C | TPX-110D | TPX-130B | TPX-130C |
Spindle | ||||||
Spindle diameter | mm | 110 | 110 | 110 | 130 | 130 |
Spindle taper | - | MT6 | MT6 | MT6 | Metric 80 | Metric 80 |
Max. spindle torque | N.m | 1225 | 1225 | 1225 | 3136 | 3136 |
Max. spindle thrust | N | 12250 | 12250 | 12250 | 31360 | 31360 |
Spindle speed steps | - | 22 | 22 | 22 | 24 | 24 |
Spindle speed range | rpm | 8-1000 | 8-1000 | 8-1000 | 4-800 | 4-800 |
Main motor power | - | 7.5 | 7.5 | 7.5 | 15 | 15 |
Facing head | ||||||
Max. facing head torque | N.m | 1960 | 1960 | 1960 | 4900 | 4900 |
Facing head diameter | mm | 600 | 600 | 600 | 750 | 750 |
Facing head speed range | rpm | 4-200 | 4-200 | 4-200 | 2.5-125 | 2.5-125 |
Facing head speed steps | - | 18 | 18 | 18 | 18 | 18 |
Table | ||||||
Table size | mm | 1100x960 | 1100x960 | 1100x960 | 1600x1400 | 1800x1600 |
Max. loading capacity on table | kg | 5000 | 5000 | 5000 | 8000 | 10000 |
T-slot size | mm | 22 | 22 | 22 | 28 | 28 |
T-slot count | - | 7 | 7 | 7 | 9 | 11 |
Working range | ||||||
X-axis travel | mm | 900 | 1250 | 1600 | 1600 | 2000 |
Y-axis travel | mm | 900 | 900 | 1200 | 1400 | 1800 |
Z-axis travel | mm | 1400 | 1400 | 1400 | 2000 | 2000 |
W-axis travel (spindle) | mm | 600 | 600 | 600 | 900 | 900 |
U-axis travel (facing slide travel) | mm | 180 | 180 | 180 | 250 | 250 |
B-axis rotary angle (table) | ° | 360° (4x90°) | 360° (4x90°) | 360° (4x90°) | 360° (4x90°) | 360° (4x90°) |
Distance between spindle center and worktable | mm | 0-900 | 0-900 | 0-900 | 0-900 | 0-900 |
Feed range | ||||||
Rapid feed range (X/Y/Z/W) | mm/min | 2500 | 2500 | 2500 | 2500 | 2500 |
Range of axes speed/spindle revolution (X/Y/Z/W) | mm/rev | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.04-6/0.01-1.88 | 0.05-8/0.01-2 | 0.05-8/0.01-2 |
Accuracy | ||||||
Measurement reading accuracy (X/Y/Z) | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
Measurement reading accuracy (B-axis) | ° | 0.001° | 0.001° | 0.001° | 0.001° | 0.001° |
Others | ||||||
Overall dimensions (LxWxH) | mm | 4910x2454x2750 | 4910x2870x2750 | 5028x3359x3079 | 6995x3647x3442 | 7030x4665x3800 |
Machine weight | kg | 11500 | 13000 | 14000 | 24000 | 28000 |
- MT6 spindle (110 mm) - Metric 80 spindle (130 mm) - Facing plate - Boring tool holder - Work lamp - Cooling system - Hydraulic system - Lubrication pump - NEWALL X/Y-axis DRO - MITSUBISHI PLC control - CE-mark electrical components - Level wedges & foundation bolts - Operating tools - Operation manual | - ISO (7:24) spindle - NEWALL Z-axis DRO - Rear column - Turning device & gears |
Bed
Our high quality casting feature polished and hardened guideways. The castings are internally reinforced to
maximize rigidity and stability.

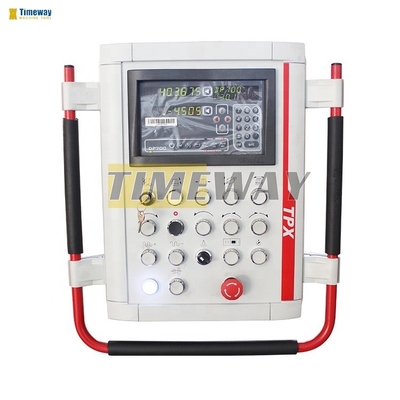

Control Panel
Available in hanging or swing-arm arrangements, the
control panel is easy to use and reduces operator
fatigue.
Table
Table rotates 360°, 1100x960mm large table provides
milling of workpiece weights of up to 5 tons.

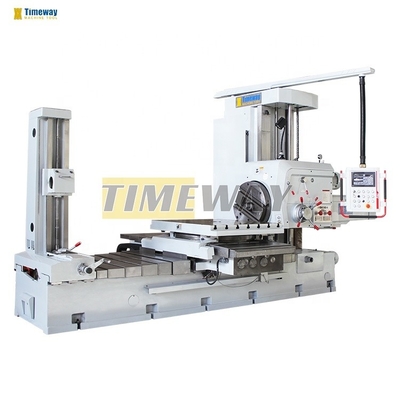

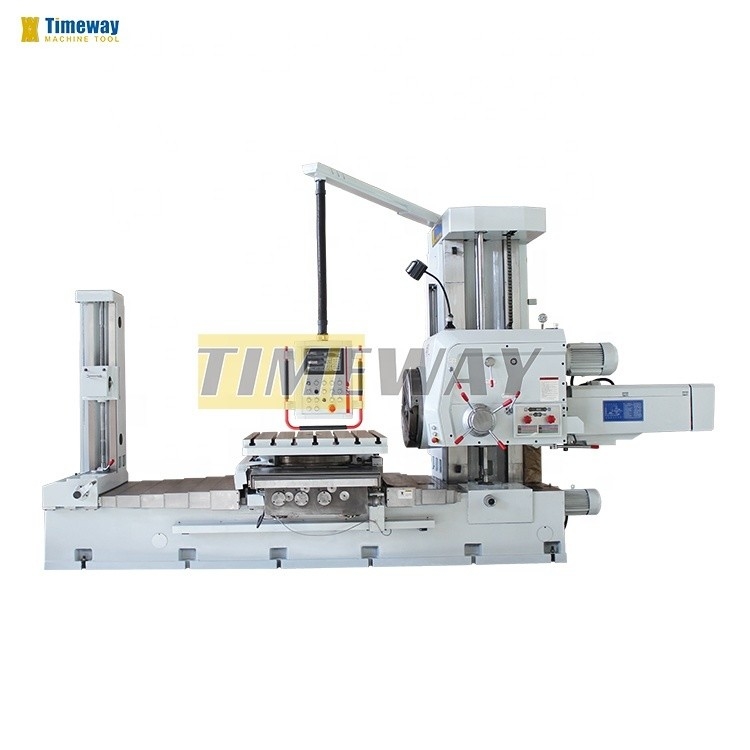

Rear Column
As an optional accessory, auxiliary support boring bar,
boing large stroke deep holes and keep coaxiality.
Column
Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.

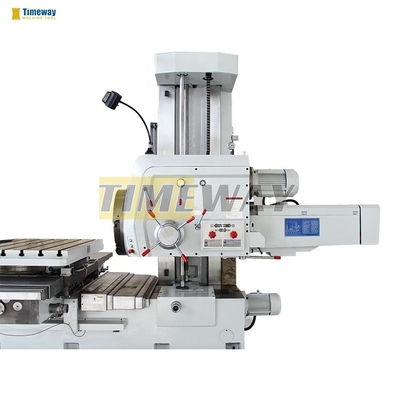

Headstock
Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.

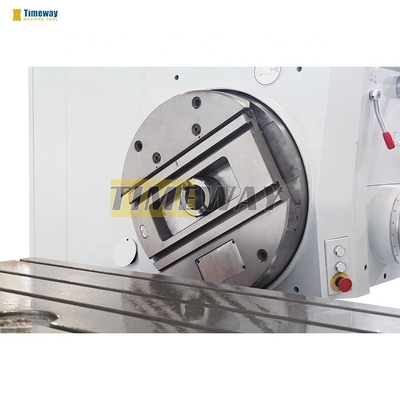

Spindle & Facing Plate
Facing plate and drill spindle with different task specific speed ranges according to the various functions.
Hydraulic System
Pressure adjusted via relief valve. Variable speed achieved via a rotary valve.
