4-Axis Spindle Diameter 110mm Horizontal Boring and Milling Machine with Digital Control
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Wood pallet or Wooden case |
| Supply Ability: | 150 Set/Sets per Year |
|
Detail Information |
|||
| Table Size (mm): | 22 | Table Travel (X) (mm): | 900 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1400 Mm |
| Number Of Axes: | 4 | Travel (W-axis) (mm): | 600 Mm |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Gear | Range Of Spindle Speed(r.p.m): | 1800 R.p.m |
| Type: | Horizontal | Condition: | New |
| CNC Or Not: | Normal | Production Capacity: | 150sets/year |
| Voltage: | 380V | Dimension(L*W*H): | 5016*3867*3148mm |
| Weight (T): | 11.5 T | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Egypt, France, Indonesia, Morocco, Chile, Algeria, South Africa, Kyrgyzstan, Japan, Australia | Spindle Diameter: | 110mm |
| Spindle Taper: | Morse No.6 | Spindle Max. Torque: | 1225N.m |
| Spindle Max. Axial Thrust: | 12250N | Spindle Speed Settings: | 22 |
| Spindle Speed Range: | 8-1000rpm | Spindle Main Motor Power: | 7.5KW |
| Facing Plate Max. Torque: | 1960N.m | Facing Plate Diameter: | 600mm |
| Facing Plate Speed Range: | 4-200rpm | Port: | China Port |
Product Description

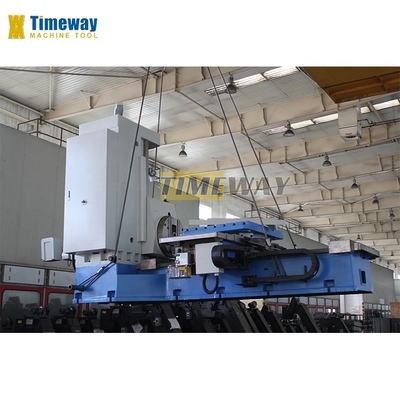

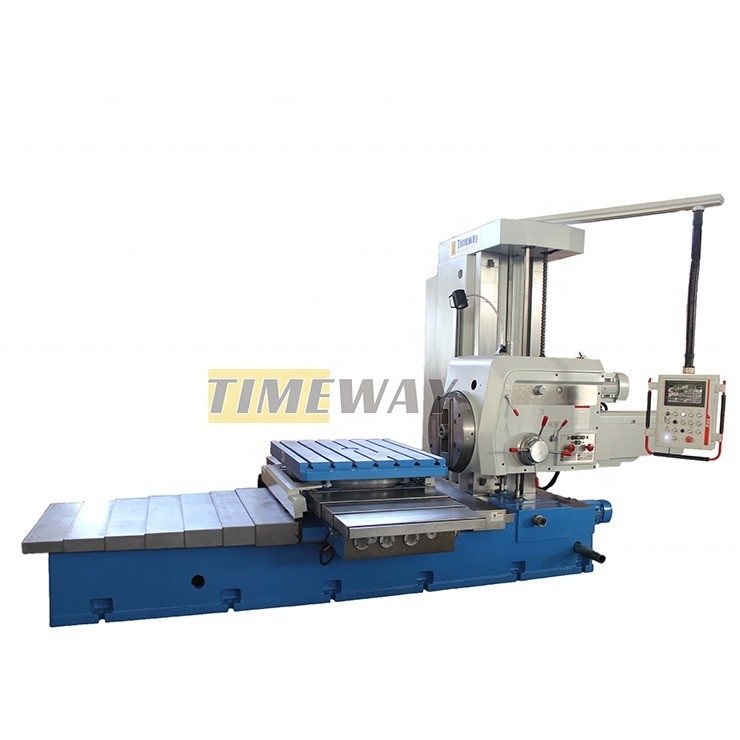

Products Description

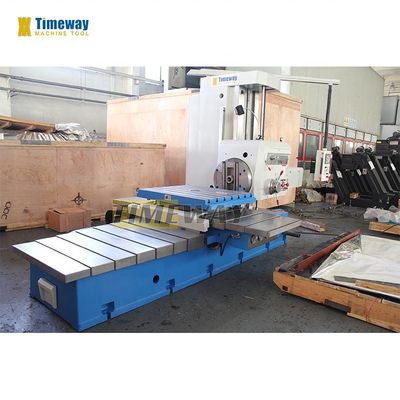

Machine Summary
The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as
large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial
feed of facing plate slide rest. worktable rotation uses a 4*90 optical positioning device suitable for large workpiece turnover
machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation.
large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial
feed of facing plate slide rest. worktable rotation uses a 4*90 optical positioning device suitable for large workpiece turnover
machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation.
Features:
1.High Quality Spindle: The three layer mechanism ensures high rotational accuracy and the three point support provides high rigidity and accuracy.
2.User Friendly Layout: The hanging operation Panel provides flexible and convenient centralized operation. Hydraulic preselection controls speed and
feed rate.

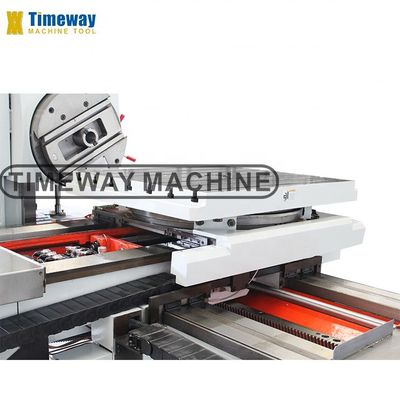

3.Accurate & Stable Optical Aiming: The worktable's 4*90 optical aiming device ensures high positioning accuracy and high precision when turnover boring.
1.High Quality Spindle: The three layer mechanism ensures high rotational accuracy and the three point support provides high rigidity and accuracy.
2.User Friendly Layout: The hanging operation Panel provides flexible and convenient centralized operation. Hydraulic preselection controls speed and
feed rate.
3.Accurate & Stable Optical Aiming: The worktable's 4*90 optical aiming device ensures high positioning accuracy and high precision when turnover boring.
4. Elector-Hydraulic Interlock: All moving components feature electro-hydraulic interlocks. Only one component moves while others are clamped automatically.
5.Bed: Our high quality casting feature polished and hardened guideways. The castings are internally reinforced to maximize rigidity and
stability.
stability.
6.Control Panel: Available in hanging or swing-arm arrangements, the control panel is easy to use and reduces operator fatigue.
7.Internal Design: Easy to install, steady, and precise with a fully-enclosed structure to prevent oil, coolant, and chip intrusion.

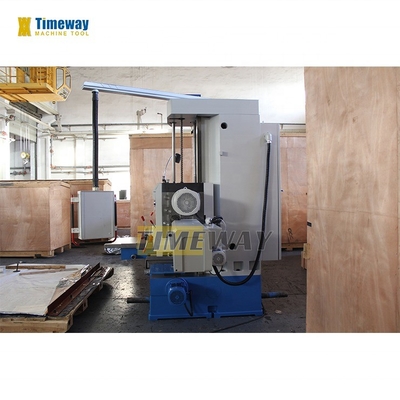

8.Column: Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.
8.Column: Made of high quality castings with ground and hardened guideways, the optimized structural design easily supports the assembly.
9.Protective Enclosure:Welded high quality steel plates form an excellent protective cover.
10.Hydraulic System Pressure adjusted via relief valve. Variable speed achieved via a rotary valve.

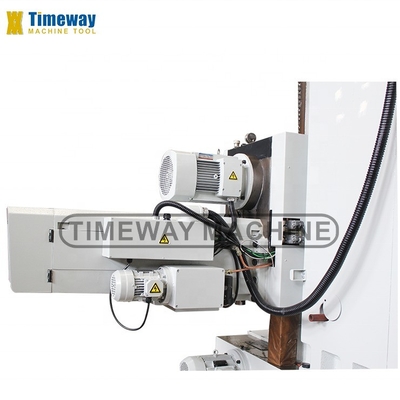

11. Headstock Primary speed is controlled via switches on the headstock itself, a variety of rotational speeds are possible.
Specifications | Units | TPX-110D | ||
Spindle | Diameter | mm | 110 | |
Taper | Morse No.6 | |||
Max. torque | N.m | 1225 | ||
Max. axial thrust | N | 12250 | ||
Speed settings | - | 22 | ||
Speed range | rpm | 8-1000 | ||
Main motor power | kw | 7.5 | ||
Facing plate | Max. torque | N.m | 1960 | |
Diameter | mm | 600 | ||
Speed range | rpm | 4-200 | ||
Speed settings | - | 18 | ||
Worktable | Dimensions | mm | 1250*1100 | |
Max. load | kg | 5000 | ||
T-slot size | mm | 22 | ||
T-slot count | 7 | |||
Machining range | X-axis max. travel | mm | 1600 | |
Y-axis max. travel | mm | 1200 | ||
Z-axis max. travel | mm | 1400 | ||
W-axis max. travel(spindle) | mm | 600 | ||
U-axis max. travel(facing plate slide) | mm | 180 | ||
B-axis rotary angle | ° | 360 | ||
Min. distance between spindle cneter and worktable | mm | 0 | ||
Feed | Rapid traverse X/Y/Z/W | mm/min | 2500 | |
Feed range of axes for each spindle revolution | mm/rev | 0.04-6/0.01-1.88 | ||
Speed range(X) | mm/min | - | ||
Accuracy | Linear measurement reading accuracy(X/Y/Z-axis) | mm | 0.005 | |
Linear measurement reading accuracy(B-axis) | ° | 0.001 | ||
General Specs | Dimensions(L*W*H) | mm | 5028*3359*3079 | |
Machine weight | kg | 14000 | ||
Standard:
MT6 spindle (110mm)
Metric 80 spindle (130mm)
Facing plate
Boring tool holder
Work lamp
Cooling system
Hydraulic system
Lubrication pump
Lubrication pump
NEWALL X/Y-axis DRO
MITSUBISHI PLC control
CE-mark electrical components
Level wedges & foundation bolts
Operating tools
Operating tools
Operation manual
Optional：
ISO50 (7:24) spindle
NEWALL Z-axis DRO
Rear column
Turning device & gears
