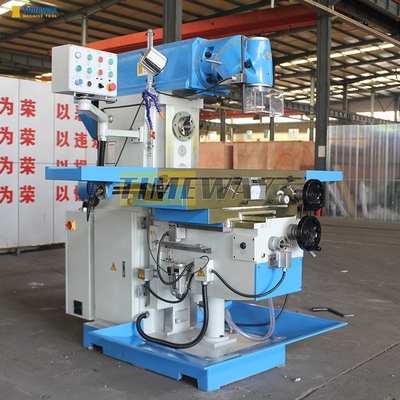

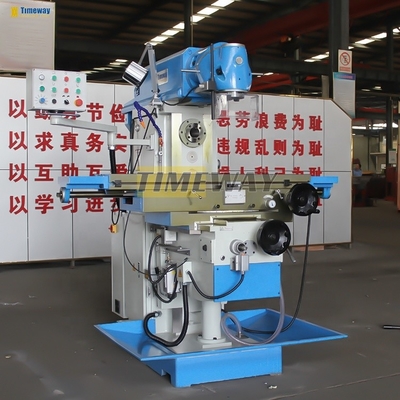

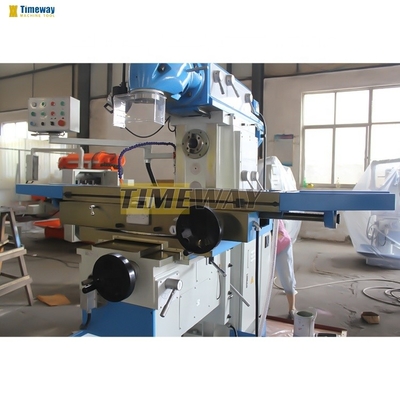

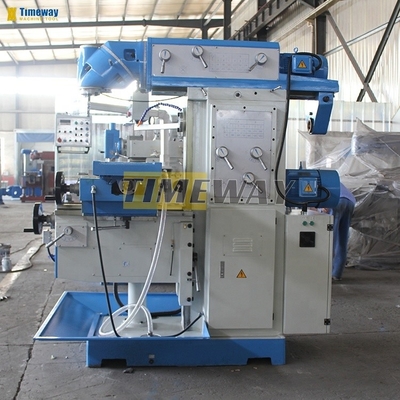

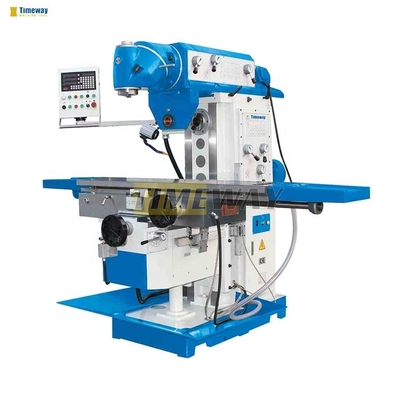

Customizable Swivel Head Manual Knee-Type Milling Machine with High Productivity
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | ISO |
| Model Number: | Servo S36H; Servo S36HL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,321.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1100 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 320 | Table Travel (Z) (mm): | 450 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 60 - 1800 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 5.5 |
| Voltage: | Optional | Dimension(L*W*H): | 2245x2100x2000mm |
| Weight (KG): | 2750 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Swivel Head Manual Knee-Type Milling Machine |
| Name: | Universal Tool Milling Machine | After Warranty Service: | Online Support |
| Table Size: | 360x1325mm | Color: | Customizable |
| X-axis Travel: | 1100mm | Y-axis Travel: | 320mm |
| Z-axis Travel: | 450mm | Spindle Speed: | 60-1800rpm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Construction Works | Showroom Location: | Kenya, South Korea, Chile, UAE, Ukraine, Uzbekistan, Japan, Egypt, United Kingdom, United States, Italy, Philippines, Brazil, Pakistan |
| Table Travel (mm): | 1020 | Year: | 2023 |
| Core Components: | Motor, Other | Port: | China Port |
Product Description
Product Paramenters
Swivel Head Manual Knee-Type Milling Machine
Specification | Unit | Servo S36H | Servo S36HL | ||
Worktable size | mm | 360x1325 | 360x1600 | ||
T-slot(NxWxD) | mm | 3/18/80 | 3/18/80 | ||
Ram travel | mm | 550 | 550 | ||
Longitudinal travel(X) | mm | 1100 | 1300 | ||
X/Y/Z-axis rapid feed speed | mm/min | 1000/800/600 | 1000/800/600 | ||
Feed speed range(X) | mm/min | 30-750 | 30-750 | ||
Feed speed range(Y) | mm/min | 20-500 | 20-500 | ||
Feed speed range(Z) | mm/min | 13-375 | 13-375 | ||

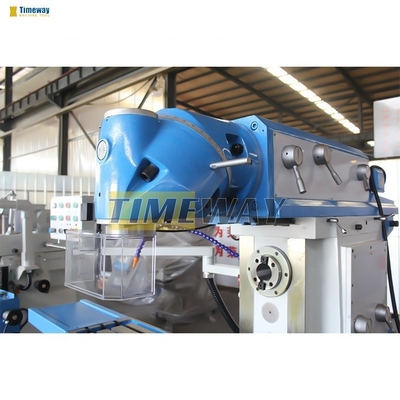

Mill head swivel angle | ° | 360 | 360 | ||
Distance from spindle nose to table | mm | 196-646 | 196-646 | ||
Dimensions (LxWxH) | mm | 2245x2100x2000 | 2520x2100x2000 | ||
Machine Weight | kg | 2750 | 2800 | ||
Positive Comments From Customers
Company Introduction
Video Description：
Factory Display：
Customers Visited
Exhibition & Training
Export Cases
FAQ
Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
