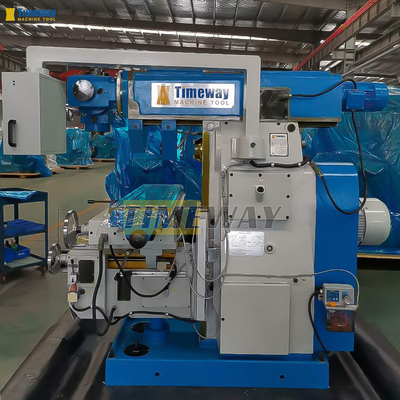

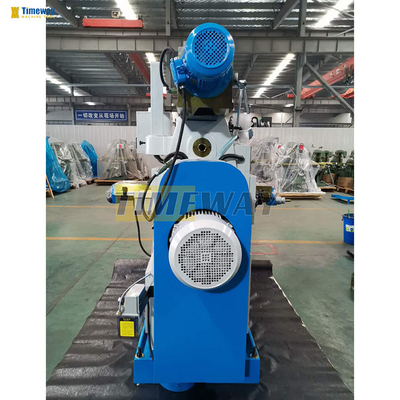

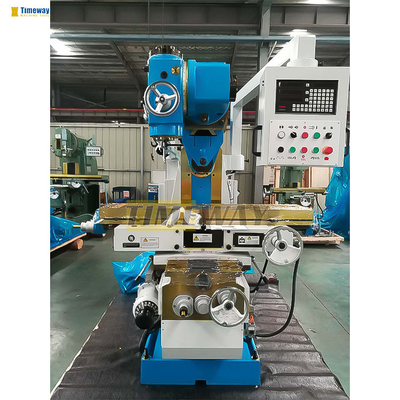

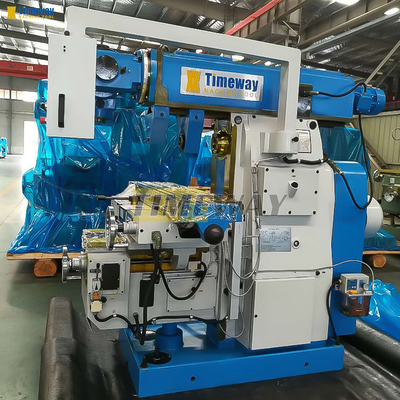

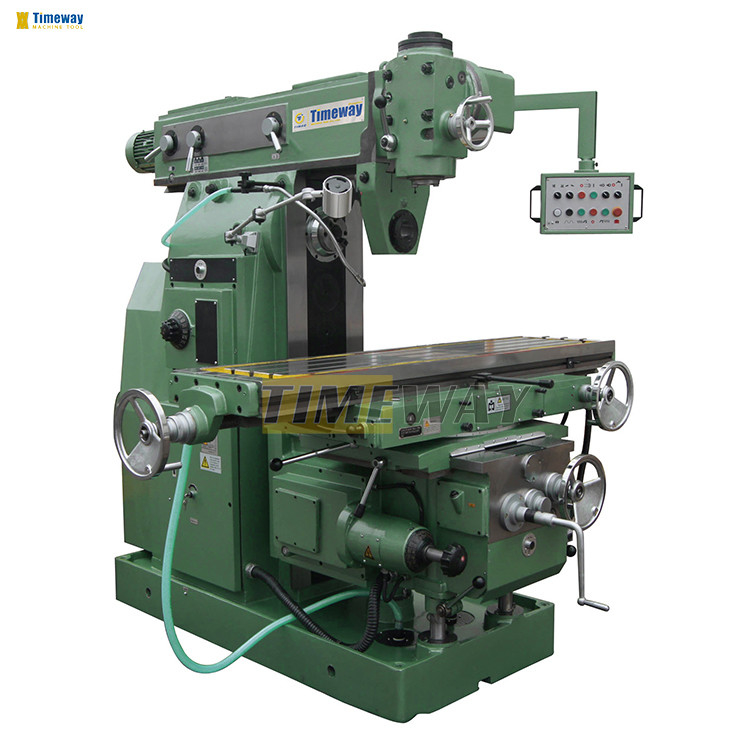

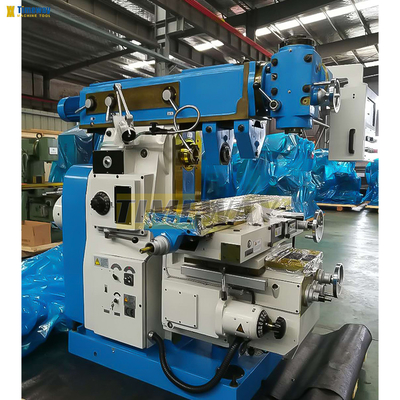

410mm Z-Axis Travel Manual Knee-Type Milling Machine for Medium Duty Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | ISO |
| Model Number: | USN320; USN420 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $19,548.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 800 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 300 | Table Travel (Z) (mm): | 410 |
| Spindle Taper: | 50 | Range Of Spindle Speed(r.p.m): | 52 - 1400 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 7.5 |
| Voltage: | Optional | Dimension(L*W*H): | 2327x1972x2000mm |
| Weight (KG): | 3500 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Name: | CNC Universal Tool Milling Machine | After Warranty Service: | Online Support |
| Table Size: | 320x1320mm | After-sales Service Provided: | Online Support |
| X-axis Travel: | 800mm | Y-axis Travel: | 300mm |
| Z-axis Travel: | 410mm | Spindle Speed: | 52-1400rpm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Construction Works | Showroom Location: | Kenya, South Korea, Chile, UAE, Ukraine, Uzbekistan, Japan, Egypt, United Kingdom, United States, Italy, Philippines, Brazil, Pakistan |
| Table Travel (mm): | 1020 | Year: | 2023 |
| Core Components: | Motor, Other | ||
Product Description
Product Paramenters
Specification | Unit | USN320 | USN420 | ||
Work size | mm | 320x1320 | 420x1800 | ||
T-slot(NxWxD) | mm | 3/18/80 | 3/18/90 | ||
Max. loading capacity | kg | 550 | 800 | ||
Longitudinal travel(X) | mm | Manual:800; Auto.: 780 | Manual:1200; Auto.: 1180 | ||
Cross travel(Y) | mm | Manual:300; Auto.: 280 | Manual:360; Auto.: 350 | ||
Vertical travel(Z) | mm | Manual:410; Auto.: 400 | Manual:470; Auto.: 450 | ||
Feed speed steps | step | 18 | 18 | ||
Feed speed range(X) | mm/min | 15-750 | 22-1100 | ||
Feed speed range(Y) | mm/min | 15-750 | 22-1100 | ||
Feed speed range(Z) | mm/min | 5.7-280 | 8.3-410 | ||
Max. the rotary angle of vertical milling head | ° | 45 | 45 | ||
Distance from spindle nose to worktable surface | mm | 30-440 | 30-500 | ||
Main motor power | kw | 7.5 | 11 | ||
Dimensions (LxWxH) | mm | 2327x1792x2000 | 2522x2262x2210 | ||
Machine Weight | kg | 3500 | 5300 | ||
Company Introduction
Package & Transportation
Customers Visited
Exhibition & Training
Export Cases
Our Team
FAQ
Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
