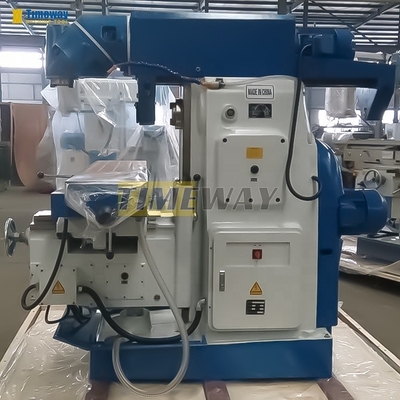

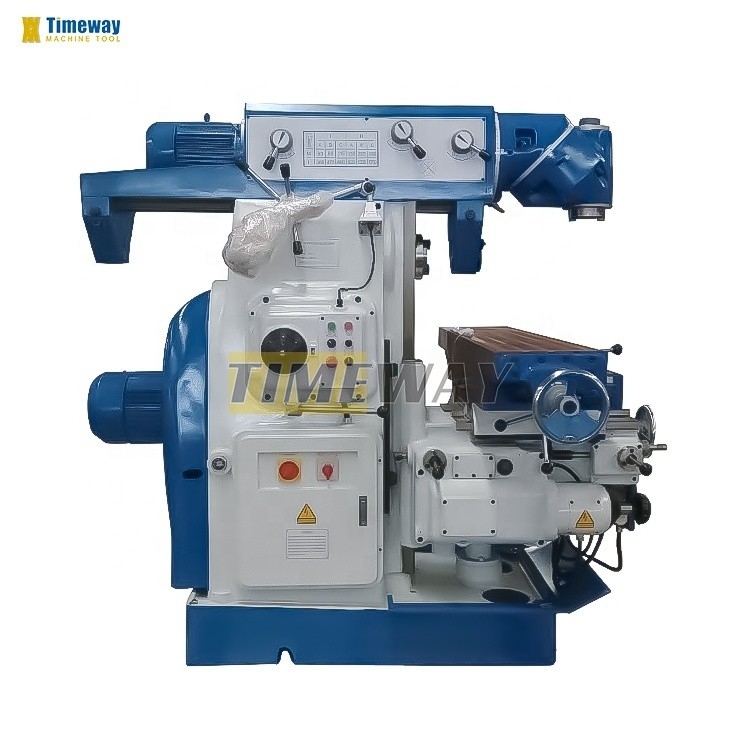

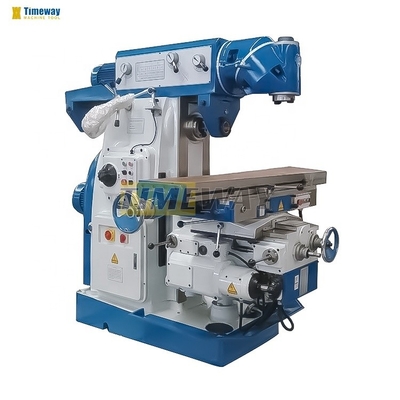

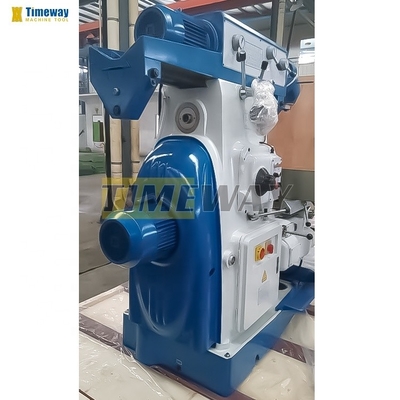

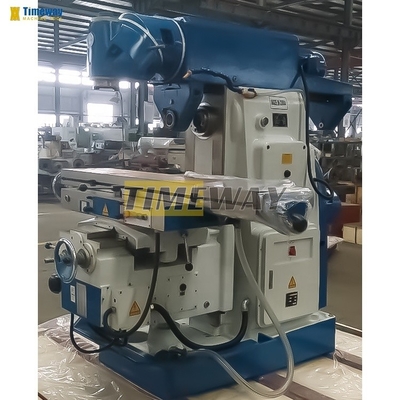

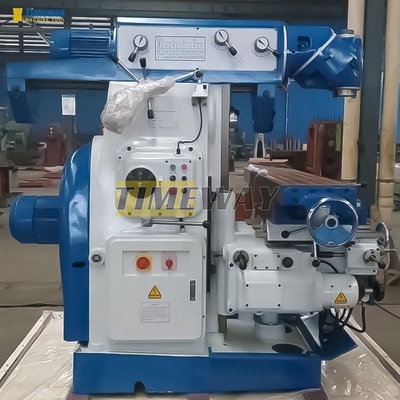

Manufacturing Plant Universal Knee-Type Milling Machine With Swivel Head Weight KG 2900
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | ISO |
| Model Number: | US320H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,980.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 700 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 255 | Table Travel (Z) (mm): | 320 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 60 - 1750 R.p.m |
| Type: | Universal | Spindle Motor Power(kW): | 4 |
| Voltage: | Optional | Dimension(L*W*H): | 2294x1770x1780mm |
| Weight (KG): | 2900 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Name: | Swivel Head Knee-type Milling Machine | After Warranty Service: | Online Support |
| Table Size: | 320x1325mm | After-sales Service Provided: | Online Support |
| X-axis Travel: | 700mm | Y-axis Travel: | 255mm |
| Z-axis Travel: | 320mm | Spindle Speed: | 60-1750rpm |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Construction Works | Showroom Location: | Kenya, South Korea, Chile, UAE, Ukraine, Uzbekistan, Japan, Egypt, United Kingdom, United States, Italy, Philippines, Brazil, Pakistan |
| Table Travel (mm): | 700 | Year: | 2023 |
| Core Components: | Motor, Other | Port: | China Port |
Product Description
Product Paramenters
Specification | Unit | US320H | ||
Worktable size | mm | 320x1325 | ||
T-slot(NxWxD) | mm | 3/18/70 | ||
Distance from vertical spindle nose to table | mm | 190-510 | ||
Longitudinal travel(X) | mm | 700 | ||
Cross travel(Y) | mm | 255 | ||
Vertical travel(Z) | mm | 320 | ||
X/Y/Z-axis rapid feed speed | mm/min | 2300/2300/770 | ||
Feed speed range(X) | mm/min | 23.5-1180 (18) | ||
Feed speed range(Y) | mm/min | 23.5-1180 (18) | ||
Feed speed range(Z) | mm/min | 8-394 (18) | ||
Mill head swivel angle | ° | 360 | ||
Worktable swivel angle | ° | 45 | ||
Main motor power | kw | 4 | ||
Dimensions (LxWxH) | mm | 2294x1770x1780 | ||
Machine Weight | kg | 2900 | ||
- Draw bar - Horizontal mill arbor - Coolant system - Chip tray - Work lamp - Lubrication system - Tools & Tool-box - operation manual | - 2/3-axis DRO - 58pcs clamping kit - Machine vise - Spindle protection guard - Dividing head - Rotary table - Reducing sleeve |
Company Introduction
Package & Transportation
Customers Visited
Exhibition & Training
Export Cases
Our Team
FAQ
Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
