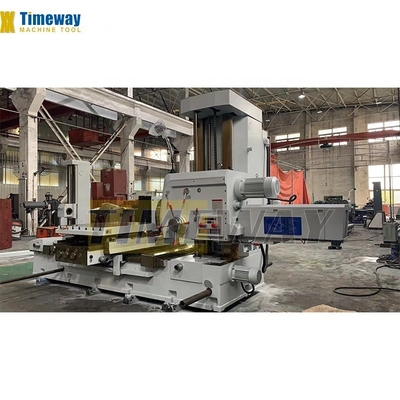

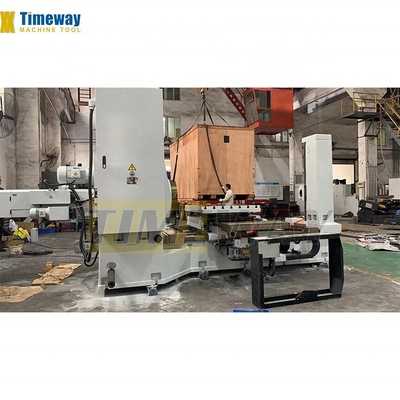

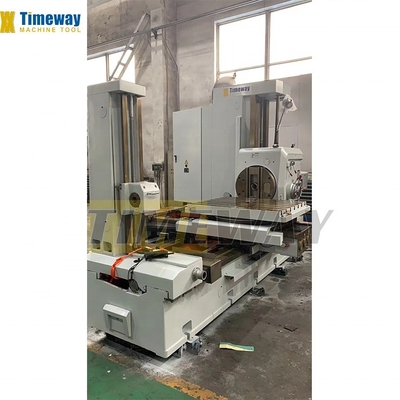

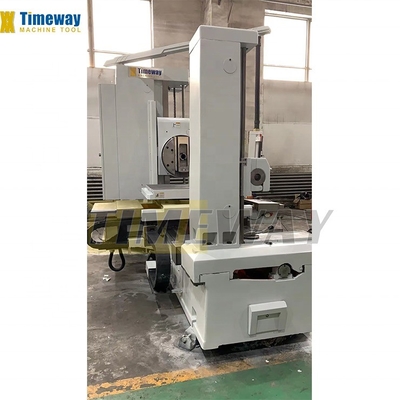

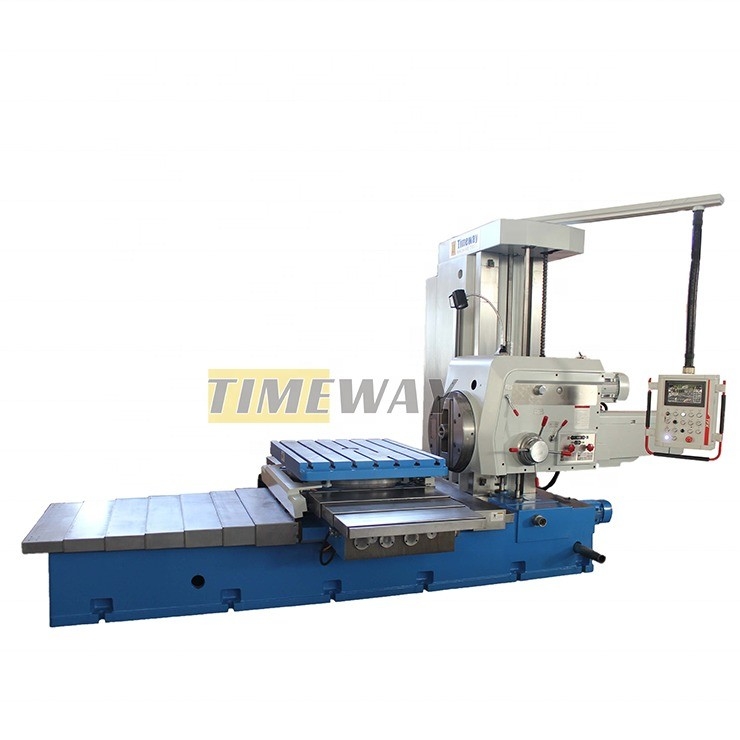

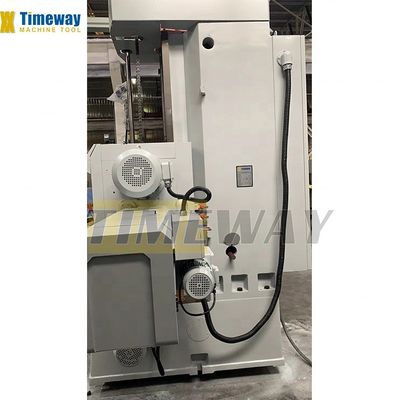

5000mm Travel Horizontal Boring and Milling Machine with Manually Rotated Setup Table
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $31,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Size (mm): | 1320*1010 | Table Travel (X) (mm): | 1200 Mm |
|---|---|---|---|
| Table Travel (Y) (mm): | 900 Mm | Table Travel (Z) (mm): | 1300 Mm |
| Number Of Axes: | 4 | Max. Table Load(kg): | 5000kg |
| Travel (W-axis) (mm): | 5000 Mm | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Gearbox, Pressure Vessel |
| Positioning Accuracy (X Axis) Mm: | 0.03 | Positioning Accuracy (Y Axis) Mm: | 0.03 |
| Positioning Accuracy (Z Axis) Mm: | 0.03 | No. Of Spindles: | 4 |
| Range Of Spindle Speed(r.p.m): | 1100 R.p.m | Spindle Motor Power(kW): | 15kw |
| Type: | Horizontal | Condition: | New |
| CNC Or Not: | Normal | Voltage: | 220/380 |
| Dimension(L*W*H): | 5500x3050x2900 | Weight (T): | 12.5 T |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Applicable Industries: | Garment Shops, Food & Beverage Factory | Showroom Location: | Canada, France, Germany, Indonesia, Thailand, Morocco |
| Drilling Capacity: | 60 | Counterbore Diameter (max.): | 240 |
| Facing Slide Working Diameter (max.): | 720 | Table Size: | 1320*1010 |
| Table Load Capacity: | 5000 | Spindle Center-to-table Distance: | 5-905 |
| Number Of T-slots: | 7 | T-slots, Width: | 22 |
| T-slots, Spacing: | 1255 | Table Rotation Range: | 4*90 |
Product Description
Products Description
Features:
The classic series horizontal milling and boring machines are especially suitable for the rough and finishing boring as well as large, medium size and box type components milling. They excel at inner hole boring, cylindrical turning, and grooving by radial feed of facing plate slide rest. worktable rotation uses a 4x90° optical positioning device suitable for large workpiece turnover machining accuracy needs. The precision DRO measurement system meets the requirements of workpiece coordinate and lineation.
Specifications | Units | TPX-110B | ||
Spindle | Diameter | mm | 110 | |
Taper | Morse No.6 | |||
Max. torque | N.m | 1225 | ||
Max. axial thrust | N | 12250 | ||
Speed settings | - | 22 | ||
Speed range | rpm | 8-1000 | ||
Main motor power | kw | 7.5 | ||
Facing plate | Max. torque | N.m | 1960 | |
Diameter | mm | 600 | ||
Speed range | rpm | 4-200 | ||
Speed settings | - | 18 | ||
Worktable | Dimensions | mm | 1100*960 | |
Max. load | kg | 5000 | ||
T-slot size | mm | 22 | ||
T-slot count | 7 | |||
Machining range | X-axis max. travel | mm | 900 | |
Y-axis max. travel | mm | 900 | ||
Z-axis max. travel | mm | 1400 | ||
W-axis max. travel(spindle) | mm | 600 | ||
U-axis max. travel(facing plate slide) | mm | 180 | ||
B-axis rotary angle | ° | 360 | ||
Min. distance between spindle cneter and worktable | mm | 0 | ||
Feed | Rapid traverse X/Y/Z/W | mm/min | 2500 | |
Feed range of axes for each spindle revolution | mm/rev | 0.04-6/0.01-1.88 | ||
Speed range(X) | mm/min | - | ||
Accuracy | Linear measurement reading accuracy(X/Y/Z-axis) | mm | 0.005 | |
Linear measurement reading accuracy(B-axis) | ° | 0.001 | ||
General Specs | Dimensions(L*W*H) | mm | 4910*2454*2750 | |
Machine weight | kg | 11500 | ||
- MT6 spindle (110mm) - Metric 80 spindle (130mm) - Facing plate - Boring tool holder - Work lamp - Cooling system - Hydraulic system - Lubrication pump - NEWALL X/Y-axis DRO - MITSUBISHI PLC control - CE-mark electrical components - Level wedges & foundation bolts - Operating tools - Operation manual | - ISO50 (7:24) spindle - NEWALL Z-axis DRO - Rear column - Turning device & gears |
