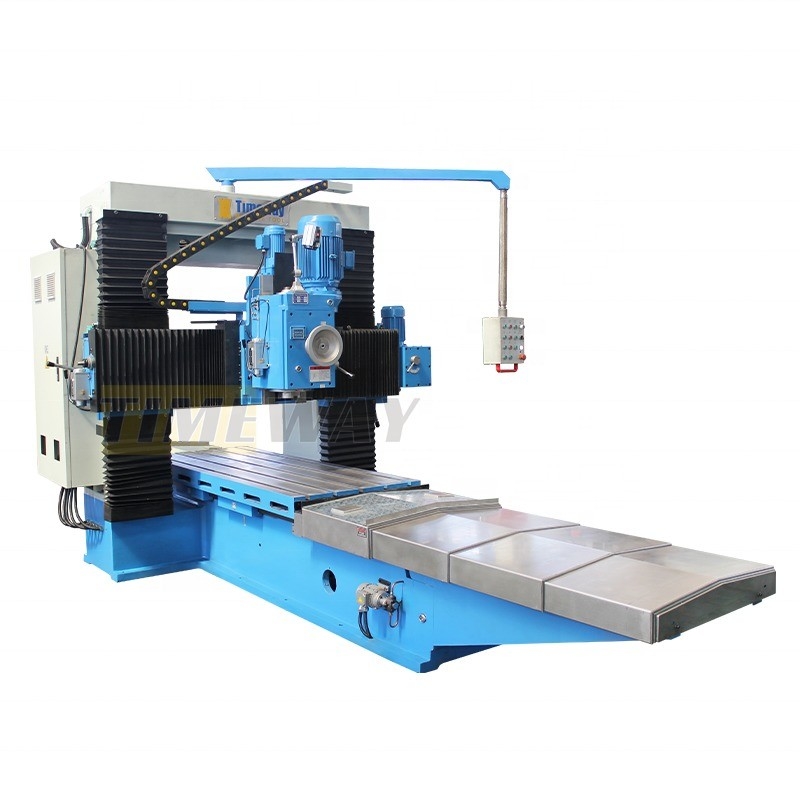

220/380V TIMEWAY GM800 Gantry Milling Machine for Large-Scale Industrial Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | GM800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $55,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000/3000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1100 | Table Travel (Z) (mm): | 800 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 82 - 505 R.p.m |
| Type: | Gantry | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 220/380V | Dimension(L*W*H): | 4000/6000x3000x2300 |
| Weight (KG): | 4000 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Milling |
| Machine Type: | Vertical Horizontal Milling Machine | Product Name: | Metal Milling Machine |
| Function: | Milling Cutting | Application: | Metal Machining |
| Color: | Custom-made | X-axis: | 2000mm |
| Y-axis: | 1100mm | Z-axis: | 800mm |
| Brand: | TIMEWAY | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops, Advertising Company |
| Showroom Location: | South Africa, Kyrgyzstan, Turkey, United Kingdom, Germany | Core Components: | Motor, Gear, PLC, Pressure Vessel, Engine, Gearbox |
| Table Travel (mm): | 2000/3000x800 | Year: | 2023 |
| Port: | China Port | ||
Product Description
Products Description
gantry milling machine
Specification | Unit | GM800 |
Table size (length) | mm | 2000/3000 |
Table size (width) | mm | 800 |
Longitudinal travel | mm | 2000/3000 |
Max. width of workpiece | mm | 1100 |
Max. height of workpiece | mm | 800 |
Distance between columns | mm | 1140 |
Table feed speed | mm/min | infinite variable |
Table rapid feed speed | mm/min | 1400 |
Mill head swivel angle | ° | ±35° |
Vertical mill head feed speed | mm/min | 65/320/890 |
Table feed motor power | kw | 4 |
