Table Travel Y mm 1000 GM1400 Gantry Type Milling Machine for Industrial Machining
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | GM1400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $75,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Table Travel (X) (mm): | 2000/3000/4000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 2000/3000/4000 |
| Spindle Taper: | ISO50 | Range Of Spindle Speed(r.p.m): | 82 - 505 R.p.m |
| Type: | Gantry | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 220V 380V 415V | Dimension(L*W*H): | 4000/6000x3000x2300 |
| Weight (KG): | 9600 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | Milling |
| Machine Type: | Veritcal | Product Name: | Metal Milling Machine |
| Keyword: | Milling Machine Manual | Function: | Milling Cutting |
| CNC Or Not: | Normal | Usage: | General |
| Color: | Custom-made | Precision: | Precision |
| Number Of Axes: | 3 | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Printing Shops, Construction Works , Advertising Company | Showroom Location: | Sri Lanka, Nigeria, Uzbekistan, Canada, United Kingdom, United States, France, Viet Nam |
| Core Components: | Bearing, Motor, Gear, PLC | Table Travel (mm): | 4550/7000/9000x3200x2550 |
| Year: | Latest Day | Port: | China Port |
Product Description
Products Description

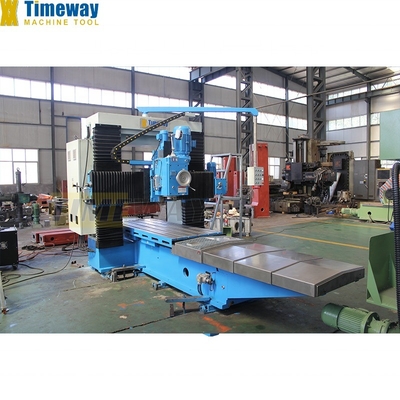

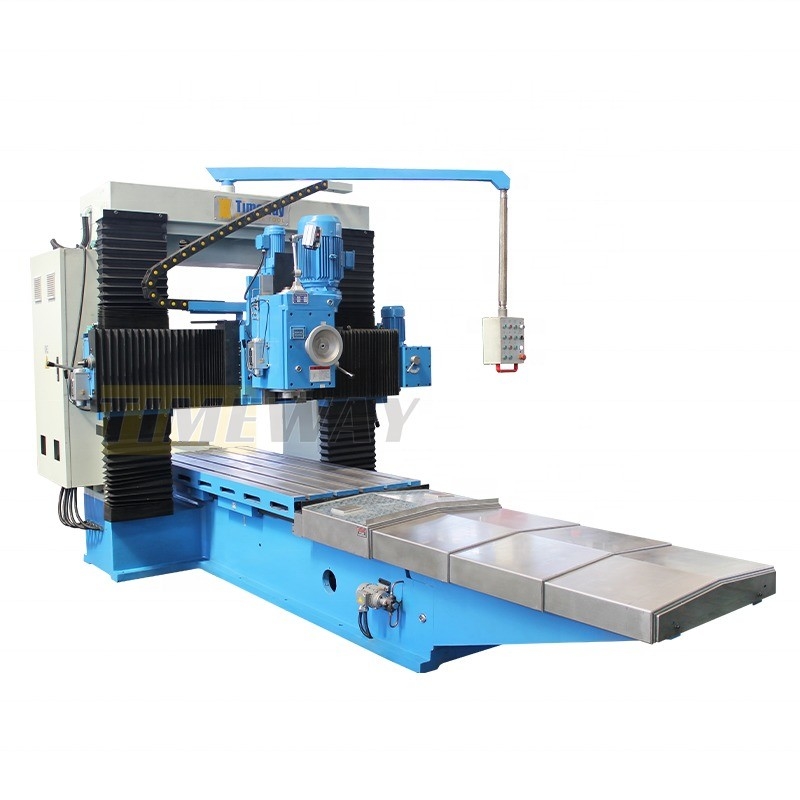

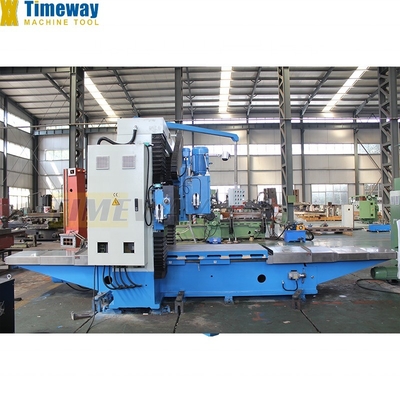

gantry type milling machine
Specification | Unit | GM1400 |
Table size (length) | mm | 2000/3000/4000 |
Table size (width) | mm | 1400 |
Longitudinal travel | mm | 2000/3000/4000 |
Max. width of workpiece | mm | 1800 |
Max. height of workpiece | mm | 1000/1200 |
Distance between columns | mm | 1920 |
Table feed speed | mm/min | 25-450 |
Table rapid feed speed | mm/min | 1300 |
Mill head swivel angle | ° | ±35° |
Vertical mill head feed speed | mm/min | 65/320/890 |
Side mill head feed speed | mm/min | 50/265/730 |
Table feed motor power | kw | 5.5/7.5/7.5 |
Machine length | mm | 4550/7000/9000 |
Machine width | mm | 3550 |
Machine height | mm | 2950/3150 |
Positive Comments From Customers
Company Introduction
Video Introduction：
Text Introduction：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our production base was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Factory Display：
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
